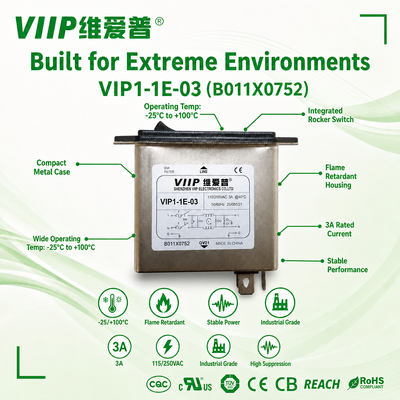

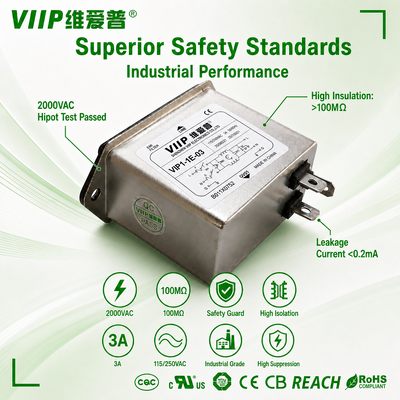

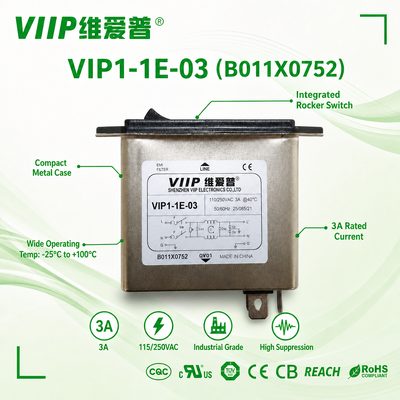

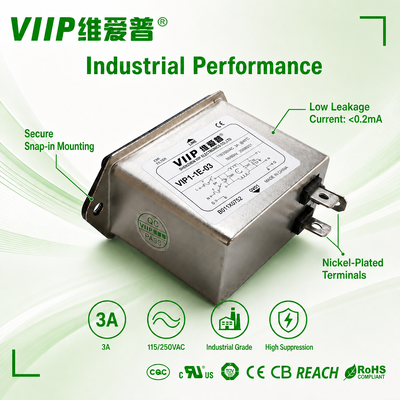

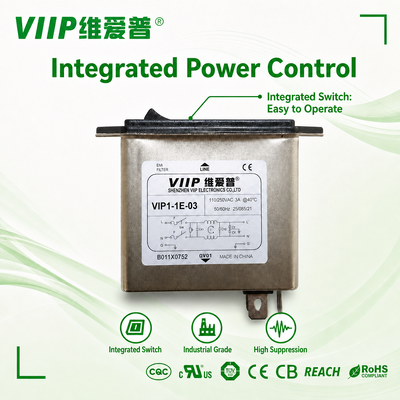

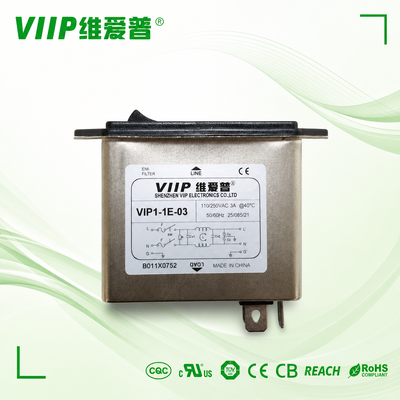

VIP1-1E-03 B011X0752 IEC Inlet EMI Filter 3A 115/250VAC, Power Entry Module with Fuse & Switch for EMC Noise Suppression

Brand Name:	Weiaipu
Model Number:	VIP1-1E-03(B011X0752)
MOQ:	112PCS
Price:	6-9USD
Packaging Details:	Carton
Payment Terms:	T/T

Detail Information

Product Description

Detail Information

Place of Origin:

Shen Zhen

Certification:

CQC CE ROHS TUV CB REACH UL

Model:

VIP1‑1E‑03

Brand:

VIIP Weiaipu

Manufacturer:

Shenzhen VIIP Electronics Co.,Ltd.

Rated Voltage:

115/250 VAC

Rated Current:

3 A RMS Max

Operating Frequency:

50/60 Hz

Insulation Resistance:

100 MΩ Min @500 VDC (Input / Output To Ground)

Operating Temperature:

Operating Temperature

Supply Ability:

3000PCS/WEEK

Highlight:

IEC inlet EMI filter with fuse

Power entry module with switch

Single phase EMI filter 3A

Product Description

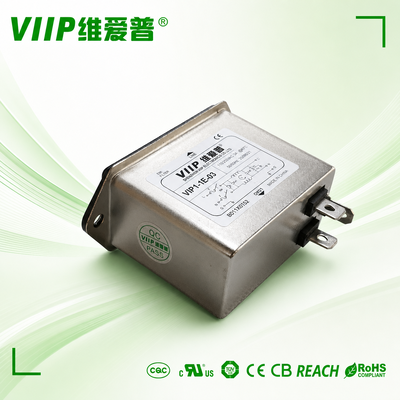

VIP1-1E-03 B011X0752 IEC Inlet EMI Filter 3A 115/250VAC

Power Entry Module with Fuse & Switch for EMC Noise Suppression. Single Phase AC EMI Power Filter with integrated IEC C14 socket, rocker power switch, dual fuses and single-stage LC EMI filter in one compact metal-shielded housing.

Product Overview

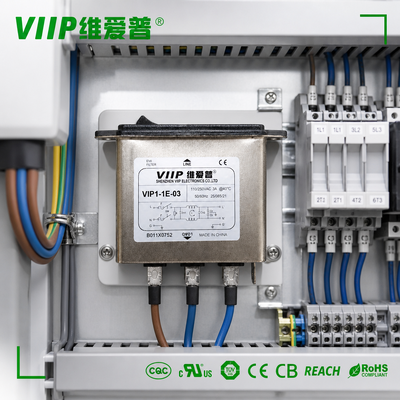

VIP1‑1E‑03 is a 3‑A integrated IEC power entry EMI filter manufactured by Shenzhen VIIP Electronics Co., Ltd. This 3‑in‑one power inlet module features panel‑mount design for front‑side installation on equipment enclosure with fast‑on terminal output for convenient wiring. The filter suppresses conducted electromagnetic interference on AC power lines, helping end‑products meet EMC requirements.

Product Highlights

3‑in‑1 integrated design: IEC inlet socket + power switch + dual fuses, saves internal equipment space
Rated current: 3A RMS, rated voltage 115/250VAC for single‑phase AC 50/60Hz power system
Built‑in single‑stage LC filter circuit, suppresses both common‑mode & differential‑mode EMI interference
Ultra‑low leakage current: max 0.1mA@115VAC/60Hz; max 0.2mA@250VAC/50Hz, safe for end‑user touch
High insulation resistance ≥100MΩ @500VDC between input/output and ground terminal

Electrical Characteristics

Item	Specifications
Rated Voltage	115 / 250 VAC
Rated Current	3 A RMS Max @115VAC / 250VAC
Operating Frequency	50 / 60 Hz
Max Leakage Current (Line‑to‑Ground)	≤0.1 mA @115VAC 60 Hz ≤0.2 mA @250VAC 50 Hz
Insulation Resistance	≥100 MΩ @500 VDC (Input / Output to Ground)
Operating Temperature	‑25 °C ~ +100 °C
Hipot Test	1 minute withstand test (per safety specification)
Filter Topology	Single‑stage π‑type LC filter with bleeder resistor
Insertion Loss	Measured under 50‑ohm system (for reference only)

Applications

Digital signage displays
Conference audio systems
Hotel smart control terminals
Retail POS peripherals
Fitness exercise equipment
Commercial refrigeration control modules

Product Documentation

Support and Services

Product Overview: High-performance single-phase EMI filter, compliant with international standards

Technical Support: Refer to the datasheet and installation manual for full specs, wiring diagrams, and safety guidelines

Installation: Must be performed by qualified personnel; ensure proper grounding and secure connections per applicable electrical codes

Maintenance: Regular inspection recommended to maintain filter efficiency and extend product lifespan

Troubleshooting: Verify wiring, check for physical damage, and confirm operating conditions meet specifications

Custom Solutions: Tailored EMI filter options available, including product testing and certification support

Frequently Asked Questions

What is your MOQ for VIP4-series power filters?

For standard off-the-shelf VIP4 series models, low MOQ is acceptable. Stock items support small-batch trial orders; for bulk mass production orders, MOQ will be based on production arrangement. Contact our sales team for detailed MOQ information.

Can I get samples of VIP4-series filters for my internal EMC performance pre-test?

Yes, sample service is available. Standard VIP4 models can be supplied as samples for your lab EMC validation and performance verification. Sample freight will be borne by the buyer.

What are the rated voltage, rated current and operating frequency for VIP4-series power filters?

VIP4 series single-phase filters are rated at 115/250VAC, operating frequency 50/60Hz. Different part numbers support different rated current from 1A-10A (for example VIP4-2B-10 is 10A model). Please refer to the product approval sheet for exact parameter of each model.

Can you provide insertion-loss curves including common-mode and differential-mode performance for VIP4-series filters?

Yes. Insertion-loss data under 50Ω standard test system is included in each model's approval sheet. We can provide test curves for common-mode and differential-mode noise attenuation for your circuit simulation and EMC evaluation.

What is the hip-pot (high-potential) test standard for VIP4-series power filters?

Every finished VIP4 filter undergoes hip-pot withstand voltage test for 1 minute as per specification, together with insulation resistance test (≥100MΩ @500VDC input/output to ground). Full test specification is shown on the approval sheet.

If my product fails during EMC testing after using VIP4 filters, can you provide technical support?

Yes, our in-house EMC engineering team can offer technical support. Please share your test report, application condition and circuit information, we will analyze and give suggestions for improvement or model adjustment.

Could you help select proper VIP-series filter model for my specific application such as inverter, servo drive or control cabinet?

Sure. Please provide key information including working voltage, rated current, equipment type, main noise frequency and installation condition. Our team will help you pick the most suitable filter solution for your system.
