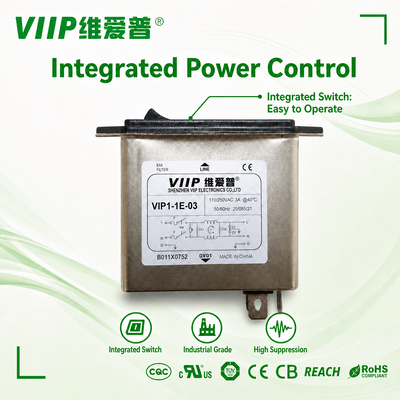

3A 115-250VAC EMI Power Filter VIP1-1E-03(B011X0752) 3-in-1 IEC Socket With Fuse Switch AC Line EMC Noise Filter

All Category

Flat Ferrite Core

Miss. Vicky Lee

vip6@szviip.com

19925448748

19925448748

Contact Now

3A 115-250VAC EMI Power Filter VIP1-1E-03(B011X0752) 3-in-1 IEC Socket With Fuse Switch AC Line EMC Noise Filter

Brand Name:	Weiaipu
Model Number:	VIP1-1E-03(B011X0752)
MOQ:	112PCS
Price:	6-9USD
Packaging Details:	Carton
Payment Terms:	T/T

Detail Information

Product Description

Detail Information

Place of Origin:

Shen Zhen

Certification:

CQC CE ROHS TUV CB REACH UL

Model:

VIP1‑1E‑03

Brand:

VIIP Weiaipu

Manufacturer:

Shenzhen VIIP Electronics Co.,Ltd.

Rated Voltage:

115/250 VAC

Rated Current:

3 A RMS Max

Operating Frequency:

50/60 Hz

Insulation Resistance:

100 MΩ Min @500 VDC (Input / Output To Ground)

Operating Temperature:

Operating Temperature

Supply Ability:

3000PCS/WEEK

Highlight:

3A EMI power filter with fuse switch

Single phase EMI noise filter

IEC socket AC line filter

Product Description

3A 115-250VAC EMI Power Filter VIP1-1E-03(B011X0752)

Single Phase AC EMI Power Filter VIP1-1E-03 B011X0752 3A 250VAC 3-in-1 IEC Inlet Module

Product Overview

VIP1‑1E‑03 is a 3‑A integrated IEC power entry EMI filter manufactured by Shenzhen VIIP Electronics Co., Ltd. This 3‑in‑one power inlet module integrates an IEC C14 socket, rocker power switch, dual fuses, and single‑stage LC EMI filter into one compact metal‑shielded housing. Designed for front‑side panel mounting on equipment enclosures, it features fast‑on terminal output for convenient wiring and effectively suppresses conducted electromagnetic interference on AC power lines to help end‑products meet EMC requirements.

The product complies with RoHS and REACH environmental directives and supports 115/250VAC 50/60Hz mains power supply.

Product Highlights

Reliable VIIP original manufacture, model number: VIP1‑1E‑03, part code B011X0752
Insertion loss for EMI noise attenuation, reducing power‑line disturbance to sensitive circuits
Standard IEC C14 inlet compatible with common AC power cords in global markets
Integrated power switch cuts off L/N lines simultaneously for safe power disconnection
Dual‑fuse safety design providing double insurance for over‑current fault protection

Electrical Characteristics

Item	Specifications
Rated Voltage	115 / 250 VAC
Rated Current	3 A RMS Max @115VAC / 250VAC
Operating Frequency	50 / 60 Hz
Max Leakage Current (Line‑to‑Ground)	≤0.1 mA @115VAC 60 Hz ≤0.2 mA @250VAC 50 Hz
Insulation Resistance	≥100 MΩ @500 VDC (Input / Output to Ground)
Operating Temperature	‑25 °C ~ +100 °C
Hipot Test	1 minute withstand test (per safety specification)
Filter Topology	Single‑stage π‑type LC filter with bleeder resistor
Insertion Loss	Measured under 50‑ohm system (for reference only)

Application

Industrial human‑machine interface (HMI), servo drive accessories, industrial printer equipment, packaging machinery controllers, environmental test chambers, PLC peripheral modules, industrial lighting control systems.

Electrical Schematic & Product Images

EMI Filter Electrical Schematic Diagram

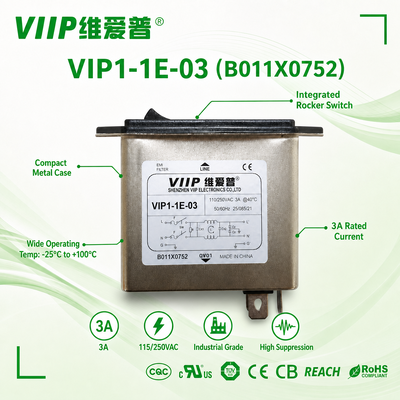

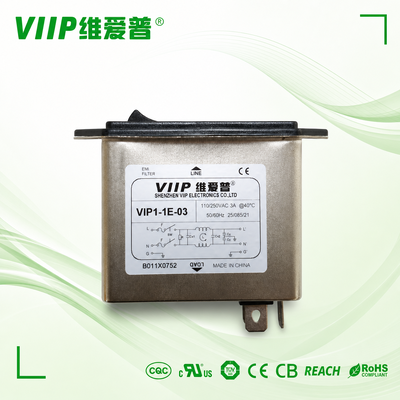

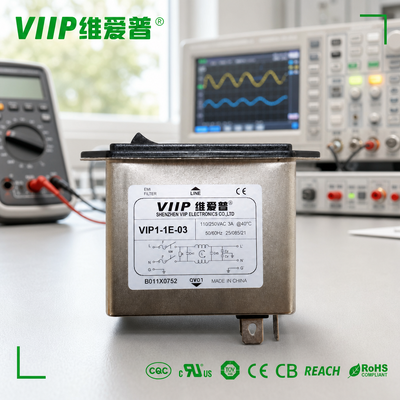

EMI Filter Product View - Front Perspective

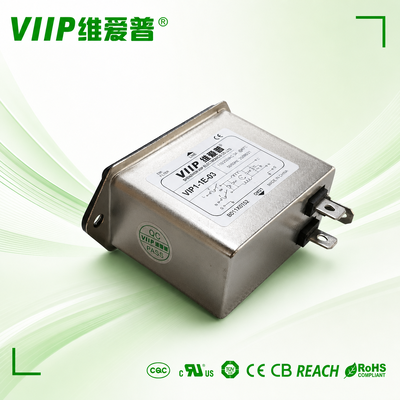

EMI Filter Product View - Side Perspective

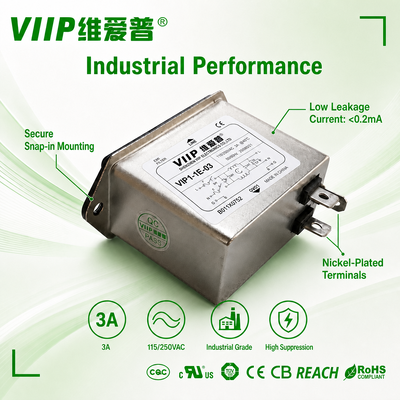

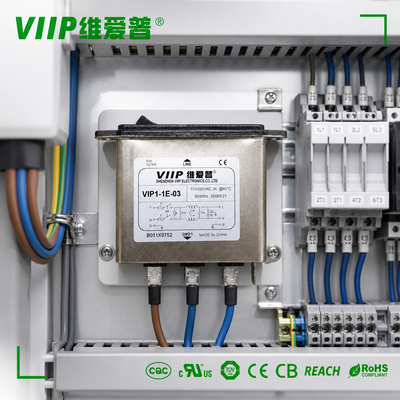

EMI Filter Product View - Mounting Details

EMI Filter Technical Diagram

Support and Services

Product Overview: High-performance single-phase EMI filter, compliant with international standards

Technical Support: Refer to the datasheet and installation manual for full specifications, wiring diagrams, and safety guidelines

Installation: Must be performed by qualified personnel; ensure proper grounding and secure connections per applicable electrical codes

Maintenance: Regular inspection recommended to maintain filter efficiency and extend product lifespan

Troubleshooting: Verify wiring, check for physical damage, and confirm operating conditions (temperature/humidity) meet specifications

Custom Solutions: Tailored EMI filter options available, including product testing and certification support. Contact our technical team for application advice and problem resolution

Frequently Asked Questions

What is your MOQ for VIP4-series power filters?

For standard off-the-shelf VIP4 series models, low MOQ is acceptable. Stock items support small-batch trial orders; for bulk mass production orders, MOQ will be based on production arrangement. Contact our sales team for detailed MOQ information.

Can I get samples of VIP4-series filters for my internal EMC performance pre-test?

Yes, sample service is available. Standard VIP4 models can be supplied as samples for your lab EMC validation and performance verification. Sample freight will be borne by the buyer.

What are the rated voltage, rated current and operating frequency for VIP4-series power filters?

VIP4 series single-phase filters are rated at 115/250VAC, operating frequency 50/60Hz. Different part numbers support different rated current from 1A-10A (for example VIP4-2B-10 is 10A model). Please refer to the product approval sheet for exact parameter of each model.

Can you provide insertion-loss curves including common-mode and differential-mode performance for VIP4-series filters?

Yes. Insertion-loss data under 50Ω standard test system is included in each model's approval sheet. We can provide test curves for common-mode and differential-mode noise attenuation for your circuit simulation and EMC evaluation.

What is the hip-pot (high-potential) test standard for VIP4-series power filters?

Every finished VIP4 filter undergoes hip-pot withstand voltage test for 1 minute as per specification, together with insulation resistance test (≥100MΩ @500VDC input/output to ground). Full test specification is shown on the approval sheet.

If my product fails during EMC testing after using VIP4 filters, can you provide technical support?

Yes, our in-house EMC engineering team can offer technical support. Please share your test report, application condition and circuit information, we will analyze and give suggestions for improvement or model adjustment.

Could you help select proper VIP-series filter model for my specific application such as inverter, servo drive or control cabinet?

Sure. Please provide key information including working voltage, rated current, equipment type, main noise frequency and installation condition. Our team will help you pick the most suitable filter solution for your system.
