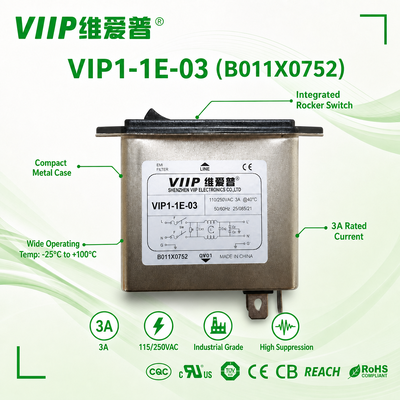

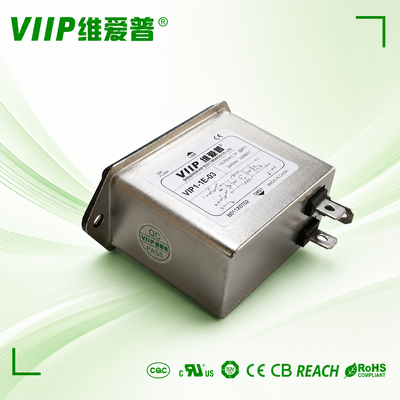

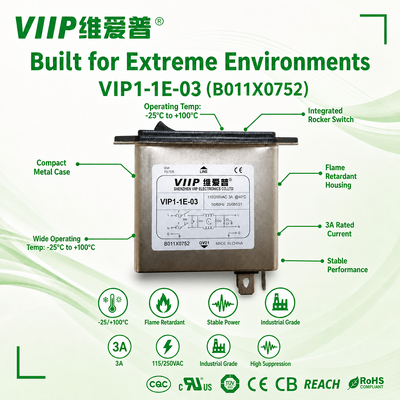

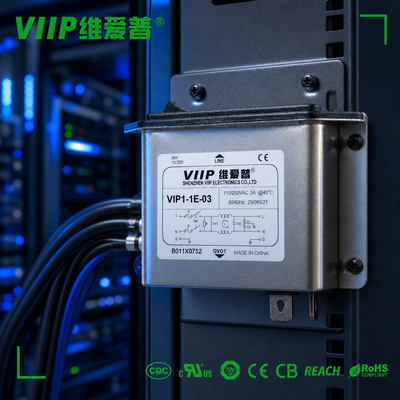

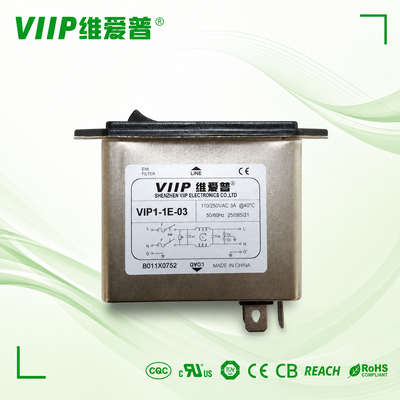

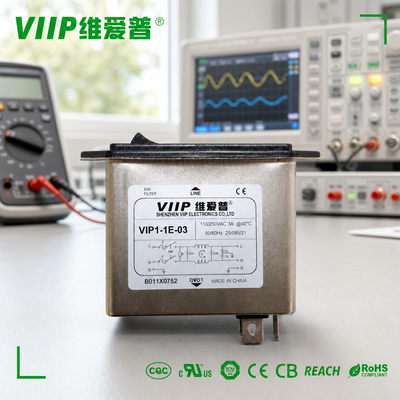

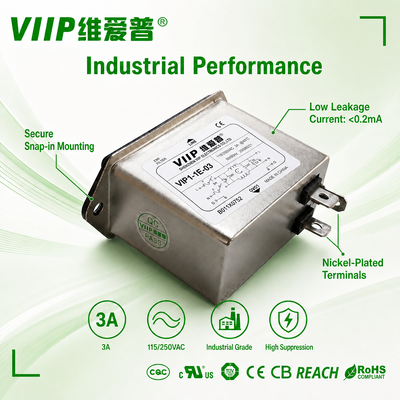

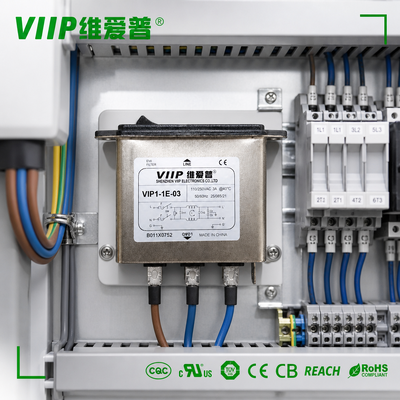

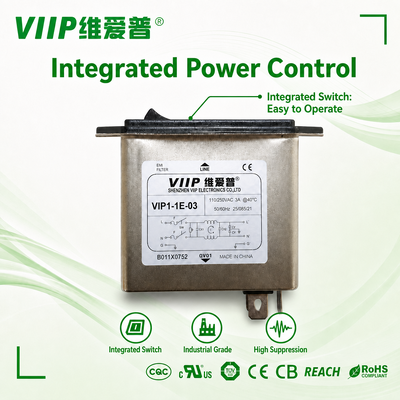

VIP1‑1E‑03 is a 3‑A integrated IEC power entry EMI filter manufactured by Shenzhen VIIP Electronics Co., Ltd. This 3‑in‑one power inlet module integrates an IEC C14 socket, rocker power switch, dual fuses, and single‑stage LC EMI filter into one compact metal‑shielded housing. Designed for front‑side panel mounting on equipment enclosures, it features fast‑on terminal output for convenient wiring and effectively suppresses conducted electromagnetic interference on AC power lines to help end‑products meet EMC requirements.

The product complies with RoHS and REACH environmental directives and supports 115/250VAC 50/60Hz mains power supply.

• Reliable VIIP original manufacture, model number: VIP1‑1E‑03, part code B011X0752
• Insertion loss for EMI noise attenuation, reducing power‑line disturbance to sensitive circuits
• Standard IEC C14 inlet compatible with common AC power cords in global markets
• Integrated power switch cuts off L/N lines simultaneously for safe power disconnection
• Dual‑fuse safety design providing double insurance for over‑current fault protection

• Household medical auxiliary devices
• Audio‑visual equipment
• Printing & scanning hardware
• Smart charging stations
• Lab analytical instruments
• Automatic vending machines
• Amusement & gaming hardware
• Environmental monitoring apparatus
• Precision sensor systems
• Compact automation controllers

Product Overview: High-performance single-phase EMI filter, compliant with international standards

Technical Support: Refer to the datasheet and installation manual for full specifications, wiring diagrams, and safety guidelines

Installation: Must be performed by qualified personnel; ensure proper grounding and secure connections per applicable electrical codes

Maintenance: Regular inspection recommended to maintain filter efficiency and extend product lifespan

Troubleshooting: Verify wiring, check for physical damage, and confirm operating conditions (temperature/humidity) meet specifications

Custom Solutions: Tailored EMI filter options available, including product testing and certification support. Contact our technical team for application advice and problem resolution

What is your MOQ for VIP4-series power filters?
For standard off-the-shelf VIP4 series models, low MOQ is acceptable. Stock items support small-batch trial orders; for bulk mass production orders, MOQ will be based on production arrangement. Contact our sales team for detailed MOQ information.

Can I get samples of VIP4-series filters for my internal EMC performance pre-test?
Yes, sample service is available. Standard VIP4 models can be supplied as samples for your lab EMC validation and performance verification. Sample freight will be borne by the buyer.

What are the rated voltage, rated current and operating frequency for VIP4-series power filters?
VIP4 series single-phase filters are rated at 115/250VAC, operating frequency 50/60Hz. Different part numbers support different rated current from 1A-10A (for example VIP4-2B-10 is 10A model). Please refer to the product approval sheet for exact parameter of each model.

Can you provide insertion-loss curves including common-mode and differential-mode performance for VIP4-series filters?
Yes. Insertion-loss data under 50Ω standard test system is included in each model's approval sheet. We can provide test curves for common-mode and differential-mode noise attenuation for your circuit simulation and EMC evaluation.

What is the hip-pot (high-potential) test standard for VIP4-series power filters?
Every finished VIP4 filter undergoes hip-pot withstand voltage test for 1 minute as per specification, together with insulation resistance test (≥100MΩ @500VDC input/output to ground). Full test specification is shown on the approval sheet.

If my product fails during EMC testing after using VIP4 filters, can you provide technical support?
Yes, our in-house EMC engineering team can offer technical support. Please share your test report, application condition and circuit information, we will analyze and give suggestions for improvement or model adjustment.

Could you help select proper VIP-series filter model for my specific application such as inverter, servo drive or control cabinet?
Sure. Please provide key information including working voltage, rated current, equipment type, main noise frequency and installation condition. Our team will help you pick the most suitable filter solution for your system.
