IEC Inlet EMI Noise Filter VIP1-1E-03 B011X0752 3A 115/250VAC Integrated Fuse Switch Power Line EMC Filter for Electronics

All Category

Flat Ferrite Core

Miss. Vicky Lee

vip6@szviip.com

19925448748

19925448748

Contact Now

IEC Inlet EMI Noise Filter VIP1-1E-03 B011X0752 3A 115/250VAC Integrated Fuse Switch Power Line EMC Filter for Electronics

Brand Name:	Weiaipu
Model Number:	VIP1-1E-03(B011X0752)
MOQ:	112PCS
Price:	6-9USD
Packaging Details:	Carton
Payment Terms:	T/T

Detail Information

Product Description

Detail Information

Place of Origin:

Shen Zhen

Certification:

CQC CE ROHS TUV CB REACH UL

Model:

VIP1‑1E‑03

Brand:

VIIP Weiaipu

Manufacturer:

Shenzhen VIIP Electronics Co.,Ltd.

Rated Voltage:

115/250 VAC

Rated Current:

3 A RMS Max

Operating Frequency:

50/60 Hz

Insulation Resistance:

100 MΩ Min @500 VDC (Input / Output To Ground)

Operating Temperature:

Operating Temperature

Supply Ability:

3000PCS/WEEK

Highlight:

IEC inlet EMI noise filter

3A power line EMC filter

single phase EMI filter with fuse

Product Description

Single Phase AC EMI Power Filter VIP1-1E-03 B011X0752 3A 250VAC 3-in-1 IEC Inlet Module, EMC Interference Suppression Filter

Product Overview

VIP1‑1E‑03 is a 3‑A integrated IEC power entry EMI filter manufactured by Shenzhen VIIP Electronics Co., Ltd. This is a 3‑in‑one power inlet module integrating IEC C14 socket, rocker power switch, dual fuses and single‑stage LC EMI filter into one compact metal‑shielded housing. It is panel‑mount type for front‑side installation on equipment enclosure, adopting fast‑on terminal output for convenient wiringAlibaba. It suppresses conducted electromagnetic interference on AC power line, helps end‑products to meet EMC requirements. The product complies with RoHS and REACH environmental directives, and supports 115/250VAC 50/60Hz mains power supply.

Product Highlights

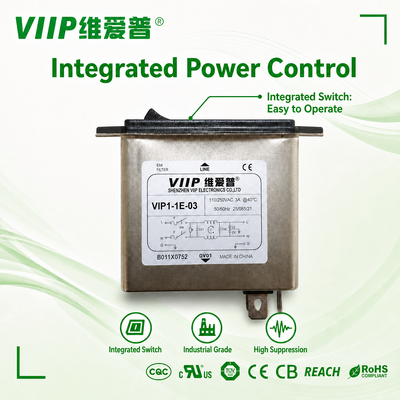

All‑in‑one integrated design: Combines IEC inlet socket, power switch, dual fuse holders and EMI filter, saving internal PCB space and simplifying equipment power‑input structureAlibaba.
Effective EMI suppression: Single‑stage common‑mode & differential‑mode π‑filter topology, delivers good insertion loss for 150kHz‑30MHz conducted noise under 50‑ohm test system手机搜狐网.
Dual‑fuse safety protection: Independent fuses for line and neutral circuit to enhance over‑current safety protection for end devicesAlibaba.
Metal shielding enclosure: Provides good shielding performance against electromagnetic interference; fast‑on 6.3 mm terminals for easy assembly.
Wide operating temperature: Operating range from ‑25 °C up to +100 °C, suitable for diverse industrial and commercial environments.

Electrical Characteristics

Item	Specifications
Rated Voltage	115 / 250 VAC
Rated Current	3 A RMS Max @115VAC / 250VAC
Operating Frequency	50 / 60 Hz
Max Leakage Current (Line‑to‑Ground)	≤0.1 mA @115VAC 60 Hz ≤0.2 mA @250VAC 50 Hz
Insulation Resistance	≥100 MΩ @500 VDC (Input / Output to Ground)
Operating Temperature	‑25 °C ~ +100 °C
Hipot Test	1 minute withstand test (per safety specification)
Filter Topology	Single‑stage π‑type LC filter with bleeder resistor
Insertion Loss	Measured under 50‑ohm system (for reference only)

Application

Test & measuring instruments, laboratory equipment
Medical‑related electronic devices (general non‑patient‑contact equipment)

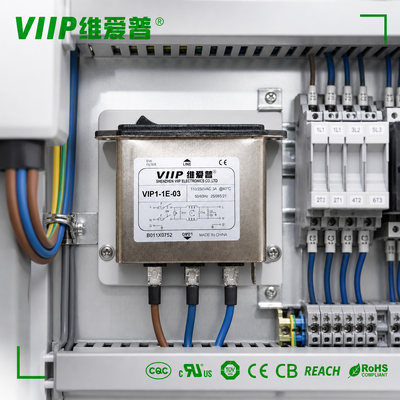

Industrial control equipment, communication devices
Office automation equipment, commercial power‑driven appliances
Medical peripherals, analytical instruments
Any AC‑powered device requiring EMC conducted‑interference mitigation with integrated power inlet, switch and fuse protection

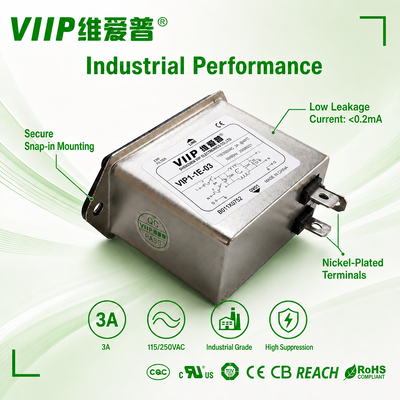

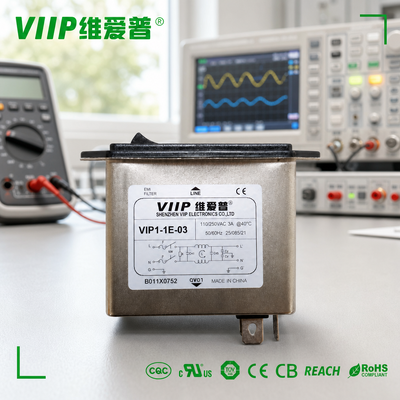

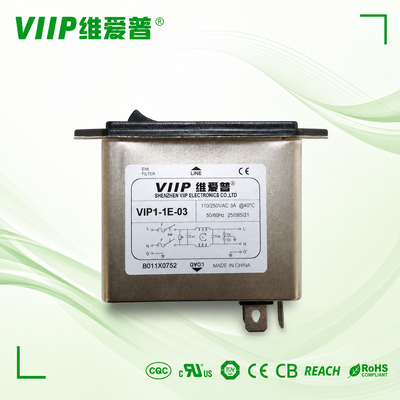

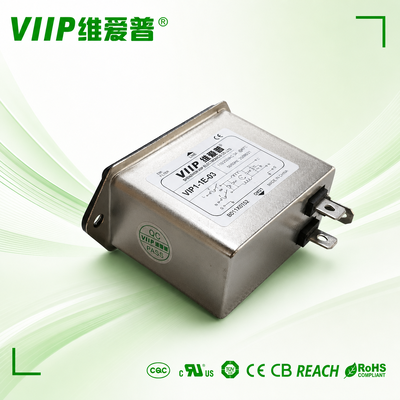

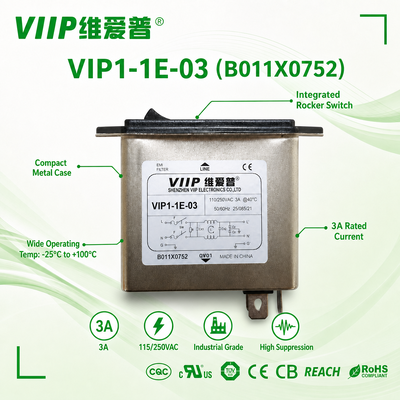

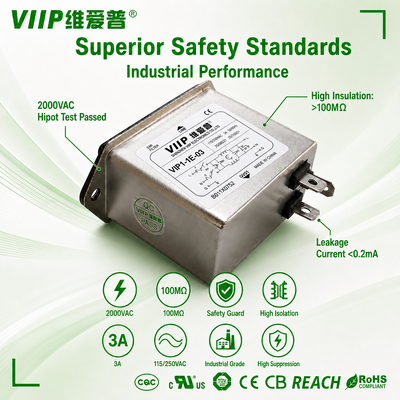

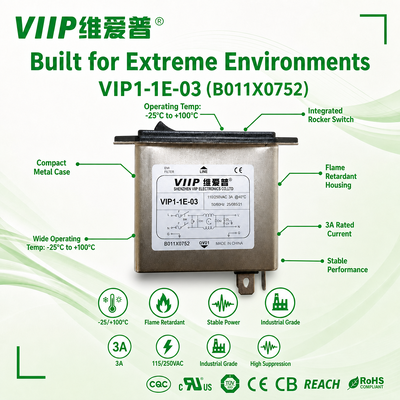

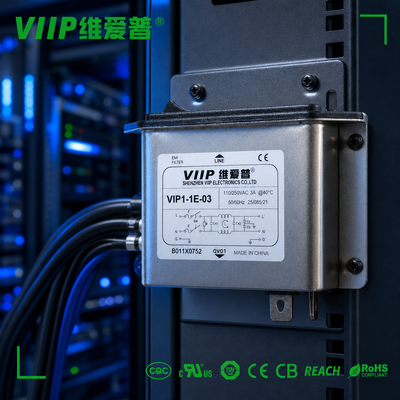

Electrical Schematic & Product Images

Support and Services

Product Overview: High-performance single-phase EMI filter, compliant with international standards
Technical Support: Refer to the datasheet and installation manual for full specs, wiring diagrams, and safety guidelines
Installation: Must be performed by qualified personnel; ensure proper grounding and secure connections per applicable electrical codes
Maintenance: Regular inspection recommended to maintain filter efficiency and extend product lifespan
Troubleshooting: Verify wiring, check for physical damage, and confirm operating conditions (temperature/humidity) meet specifications
Custom Solutions: Tailored EMI filter options available, including product testing and certification support. Contact our technical team for application advice and problem resolution

Frequently Asked Questions

What is your MOQ for VIP4-series power filters?

For standard off-the-shelf VIP4 series models, low MOQ is acceptable. Stock items support small-batch trial orders; for bulk mass production orders, MOQ will be based on production arrangement. Contact our sales team for detailed MOQ information.

Can I get samples of VIP4-series filters for my internal EMC performance pre-test?

Yes, sample service is available. Standard VIP4 models can be supplied as samples for your lab EMC validation and performance verification. Sample freight will be borne by the buyer.

What are the rated voltage, rated current and operating frequency for VIP4-series power filters?

VIP4 series single-phase filters are rated at 115/250VAC, operating frequency 50/60Hz. Different part numbers support different rated current from 1A-10A (for example VIP4-2B-10 is 10A model). Please refer to the product approval sheet for exact parameter of each model.

Can you provide insertion-loss curves including common-mode and differential-mode performance for VIP4-series filters?

Yes. Insertion-loss data under 50Ω standard test system is included in each model's approval sheet. We can provide test curves for common-mode and differential-mode noise attenuation for your circuit simulation and EMC evaluation.

What is the hip-pot (high-potential) test standard for VIP4-series power filters?

Every finished VIP4 filter undergoes hip-pot withstand voltage test for 1 minute as per specification, together with insulation resistance test (≥100MΩ @500VDC input/output to ground). Full test specification is shown on the approval sheet.

If my product fails during EMC testing after using VIP4 filters, can you provide technical support?

Yes, our in-house EMC engineering team can offer technical support. Please share your test report, application condition and circuit information, we will analyze and give suggestions for improvement or model adjustment.

Could you help select proper VIP-series filter model for my specific application such as inverter, servo drive or control cabinet?

Sure. Please provide key information including working voltage, rated current, equipment type, main noise frequency and installation condition. Our team will help you pick the most suitable filter solution for your system.
