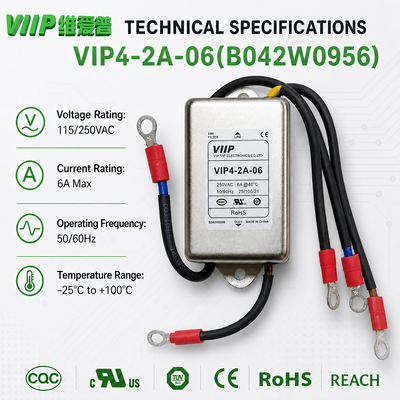

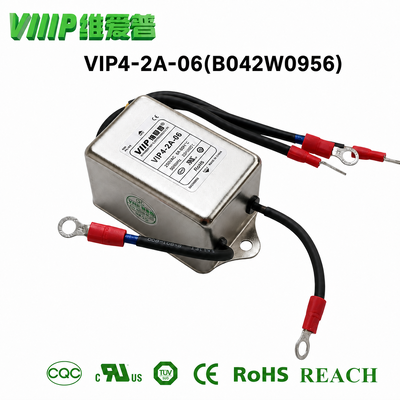

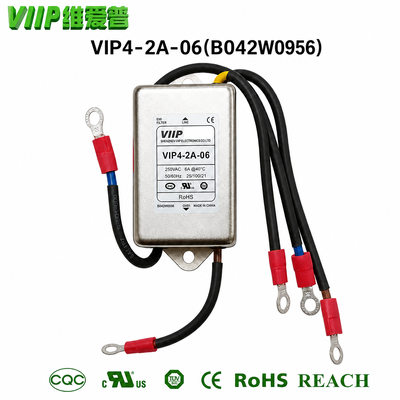

VIP4-2A-06(B042W0956) Product Introduction

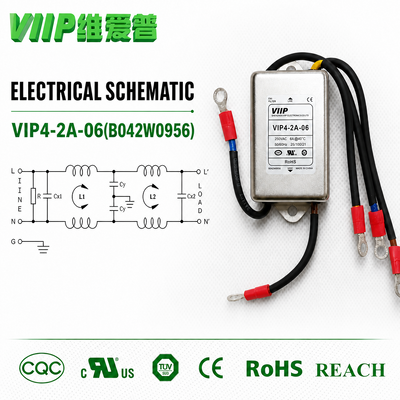

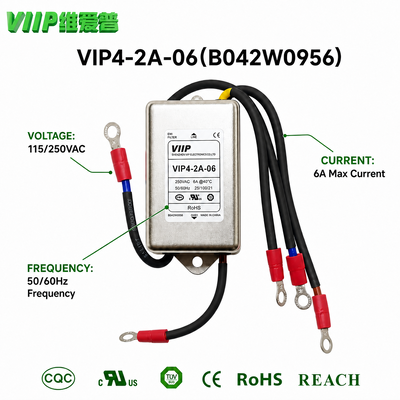

VIP4-2A-06(B042W0956) is a single-phase AC power EMI filter with rated current of 6A and rated voltage of 115/250VAC, operating at 50/60Hz. It adopts a circuit with dual common-mode inductors combined with X and Y capacitors. It can effectively suppress common-mode and differential-mode electromagnetic interference on power lines and attenuate high-frequency noise. It helps end products meet EMC standards such as EN55014 and GB9254.

The filter operates within a temperature range of -25℃ to +100℃, features low leakage current, insulation resistance ≥100MΩ and stable withstand voltage performance, passing 1-minute high voltage test. It delivers reliable long-term performance and complies with RoHS and REACH environmental requirements.

Purpose

It filters EMI noise at the AC input of switching power supplies and electronic equipment. It blocks interference from the power grid entering the equipment and restrains high-frequency noise generated by the equipment from feeding back to the mains. It solves conducted interference failure, purifies AC power lines, ensures stable equipment operation and supports EMC certification tests.

Application Range

• Home appliances: small household appliances, kitchen appliances, air conditioner control boards, washing machine power modules
• Switching power supplies & adapters: AC-DC power supplies, industrial power supplies, chargers

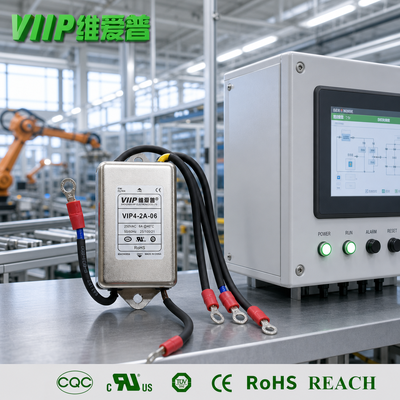

• Industrial control: PLC controllers, servo drivers, industrial instruments
• Non-medical contact medical devices, test & measurement instruments
• LED lighting power supplies, surveillance power supplies, office automation equipment

5 General FAQs for EMI Filters

FAQ 1

Q: What is the rated current of VIP4-2A-06 filter? A: The rated current is 6A RMS. It works under 115VAC / 250VAC, 50/60Hz AC power supply.

FAQ 2

Q: What function does this EMI filter have? A: It suppresses common-mode and differential-mode noise on AC power lines, assists your equipment to pass EMC EMI tests and reduce power interference.

FAQ 3

Q: What is the operating temperature range of this filter? A: The operating temperature range is -25℃ ~ +100℃.

FAQ 4

Q: Does this filter comply with RoHS and REACH standards? A: Yes, all our EMI filters fully meet RoHS and REACH environmental regulations.

FAQ 5

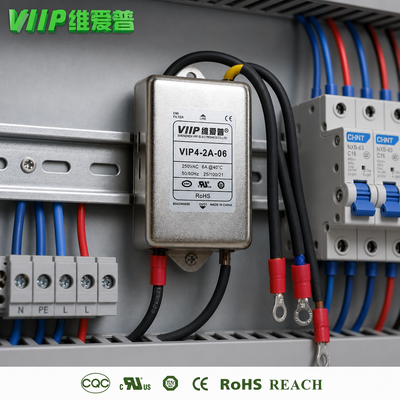

Q: What is the correct installation method for EMI filter? A: Install the filter as close as possible to the AC power input port. Keep the ground wire short to achieve optimal noise suppression effect.
