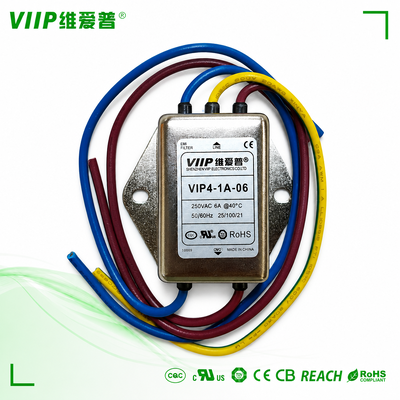

VIIP 6A Wire-leaded EMC Filter VIP4-1A-06 10009 115/250VAC Panel Mount AC Power Line Interference Suppressor

Brand Name:	Weiaipu
Model Number:	VIP4-1A-06(10009)
MOQ:	200PCS
Price:	2.68USD
Packaging Details:	Carton
Payment Terms:	T/T

Detail Information

Product Description

Detail Information

Place of Origin:

Shen Zhen

Certification:

CQC CE ROHS TUV CB REACH UL

Model:

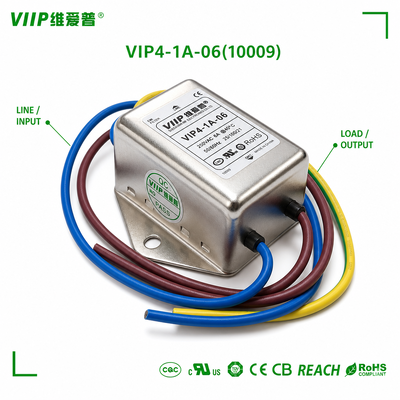

VIP4‑1A‑06

Brand:

VIIP Weiaipu

Manufacturer:

Shenzhen VIIP Electronics Co.,Ltd.

Rated Voltage:

115/250 VAC

Rated Current:

6 A RMS Max

Operating Frequency:

50/60 Hz

Insulation Resistance:

100 MΩ Min @500 VDC (Input / Output To Ground)

Housing Style:

Metal Shielded Enclosure With Mounting Holes

Supply Ability:

3000PCS/WEEK

Highlight:

6A wire-leaded EMC filter

Panel mount AC power suppressor

Single phase EMI filter 115/250VAC

Product Description

VIIP 6A Wire-leaded EMC Filter VIP4-1A-06 10009 115/250VAC Panel Mount AC Power Line Interference Suppressor

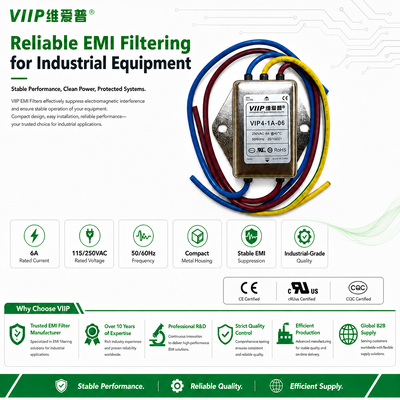

Product Overview

VIP4‑1A‑06 is a single‑phase AC EMI power filter manufactured by Shenzhen VIIP Electronics Co., Ltd. Designed for 115/250 VAC 50/60Hz mains systems, this wired‑type filter adopts a single‑stage common‑mode plus differential‑mode LC circuit topology to suppress conducted electromagnetic interference on AC power lines. It features wire leads termination (UL1015 20AWG cables) and metal shielded housing with mounting holes for chassis installation. It helps equipment meet EMC requirements, widely applicable for industrial control equipment, home appliances, instrumentation and other electronic devices sensitive to power‑line noise.

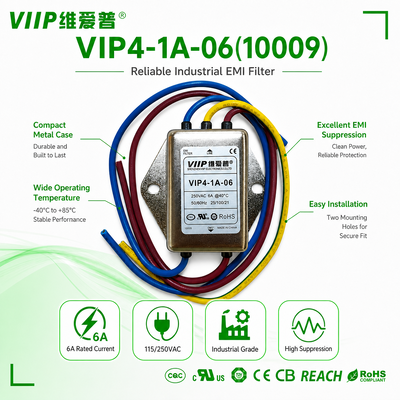

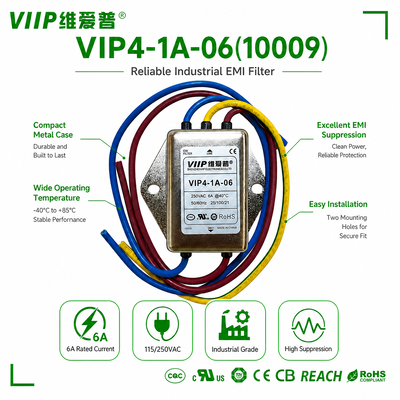

Product Highlights

Single‑stage LC filter architecture, suppress both common‑mode and differential‑mode EMI noise on AC power input
6A RMS rated current under both 115VAC and 250VAC working conditions
Wire‑lead output (UL1015‑20AWG) for flexible wiring inside equipment; metal enclosure provides shielding against radiated interference
Low leakage current design: max.0.3mA@115VAC/60Hz; max.0.6mA@250VAC/50Hz

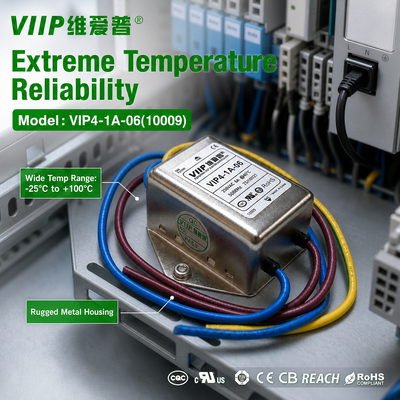

Wide operating temperature range: ‑25℃ ~ +100℃, adapts to varied working environment
High insulation performance: ≥100MΩ insulation resistance @500VDC (input/output‑to‑ground)

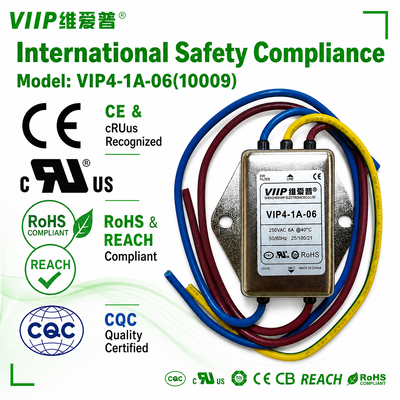

Compliance with CE, RoHS, REACH for global market access
Compact mechanical outline with mounting holes for easy chassis fixation

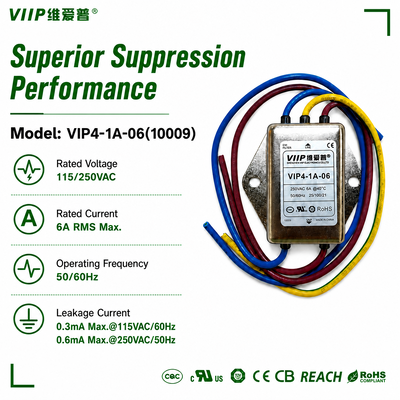

Electrical Characteristics

Parameter	Specifications
Rated Voltage	115 / 250 VAC
Rated Current	6A RMS Max. (@115VAC & 250VAC)
Operating Frequency	50 / 60 Hz
Leakage Current (Line‑to‑Ground)	0.3 mA Max @115VAC /60Hz 0.6 mA Max @250VAC /50Hz
Insulation Resistance	≥100 MΩ @500 VDC (Any Input / Output to Ground)
Operating Temperature Range	‑25℃ ~ +100℃
High‑Pot Test	1 minute withstand (per specification)
Insertion Loss	Measured under 50Ω test system (for reference only)

Electrical Schematic & Product Images

Support and Services

Product Overview: High-performance single-phase EMI filter, compliant with international standards
Technical Support: Refer to the datasheet and installation manual for full specs, wiring diagrams, and safety guidelines
Installation: Must be performed by qualified personnel; ensure proper grounding and secure connections per applicable electrical codes
Maintenance: Regular inspection recommended to maintain filter efficiency and extend product lifespan
Troubleshooting: Verify wiring, check for physical damage, and confirm operating conditions (temperature/humidity) meet specifications
Custom Solutions: Tailored EMI filter options available, including product testing and certification support. Contact our technical team for application advice and problem resolution

Frequently Asked Questions

What is your MOQ for VIP4-series power filters?

For standard off-the-shelf VIP4 series models, low MOQ is acceptable. Stock items support small-batch trial orders; for bulk mass production orders, MOQ will be based on production arrangement. Contact our sales team for detailed MOQ information.

Can I get samples of VIP4-series filters for my internal EMC performance pre-test?

Yes, sample service is available. Standard VIP4 models can be supplied as samples for your lab EMC validation and performance verification. Sample freight will be borne by the buyer.

What are the rated voltage, rated current and operating frequency for VIP4-series power filters?

VIP4 series single-phase filters are rated at 115/250VAC, operating frequency 50/60Hz. Different part numbers support different rated current from 1A-10A (for example VIP4-2B-10 is 10A model). Please refer to the product approval sheet for exact parameter of each model.

Can you provide insertion-loss curves including common-mode and differential-mode performance for VIP4-series filters?

Yes. Insertion-loss data under 50Ω standard test system is included in each model's approval sheet. We can provide test curves for common-mode and differential-mode noise attenuation for your circuit simulation and EMC evaluation.

What is the hip-pot (high-potential) test standard for VIP4-series power filters?

Every finished VIP4 filter undergoes hip-pot withstand voltage test for 1 minute as per specification, together with insulation resistance test (≥100MΩ @500VDC input/output to ground). Full test specification is shown on the approval sheet.

If my product fails during EMC testing after using VIP4 filters, can you provide technical support?

Yes, our in-house EMC engineering team can offer technical support. Please share your test report, application condition and circuit information, we will analyze and give suggestions for improvement or model adjustment.

Could you help select proper VIP-series filter model for my specific application such as inverter, servo drive or control cabinet?

Sure. Please provide key information including working voltage, rated current, equipment type, main noise frequency and installation condition. Our team will help you pick the most suitable filter solution for your system.
