Industrial 10A EMC Power Filter VIP4-2B-10(B042Q0702) Low Voltage Compatible
  • Name
  • Name
  • Name
  • Name
  • Name
  • Name
  • Name

Industrial 10A EMC Power Filter VIP4-2B-10(B042Q0702) Low Voltage Compatible

Brand Name: VIIP WeiAiPu
Model Number: VIP4-2B-10(B042Q0702)
MOQ: 80
Price: 8.563USD
Packaging Details: neutral
Payment Terms: T/T
Detail Information
Product Description
Detail Information

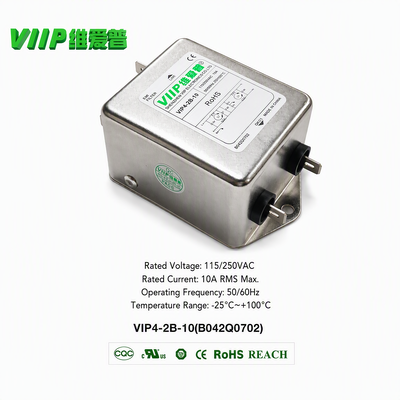

Certification:
CB UL CQC RoHS REACH
Line To Ground:
2000 VAC
Current Rating:
10A RMS Max
Line To Line:
500 VDC
Voltage Rating:
115/250VAC
Temperature Range:
-25°C~+100°C
Operating Frequency:
50/60Hz
Supply Ability:
30K/MONTH
Highlight:

Industrial 10A EMC power filter

,

Low voltage compatible EMC filter

,

EMI filter with 10A capacity

Product Description
Product Introduction

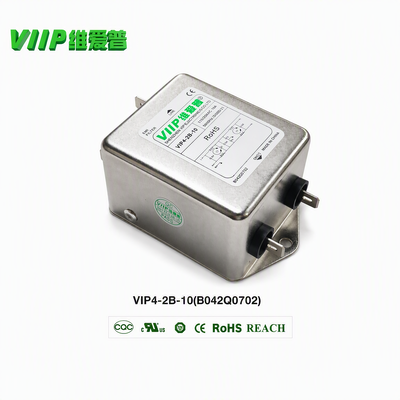

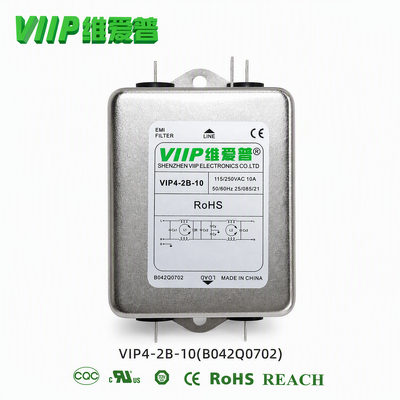

VIP4-2B-10 is a single-phase PCB double-row pin EMI power filter manufactured by VIIP. It supports rated voltage of 115/250VAC and rated current up to 10A RMS, working at 50/60Hz. It delivers excellent common-mode insertion loss under the 50Ω system to suppress high-frequency power line noise. It features low leakage current, high insulation resistance and reliable hipot performance. The operating temperature covers -25℃ ~ +100℃. With through-hole double-row pin design, it can be directly soldered on PCB boards, offering convenient assembly and stable electrical connection for precision electronic equipment.
Industrial 10A EMC Power Filter VIP4-2B-10(B042Q0702) Low Voltage Compatible

Application Scope

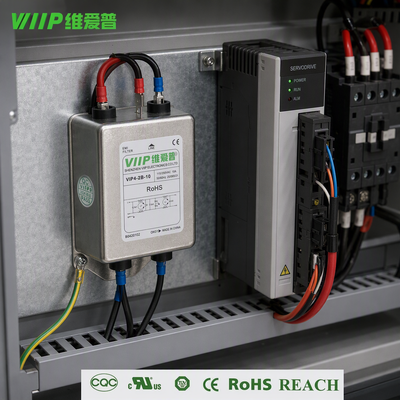

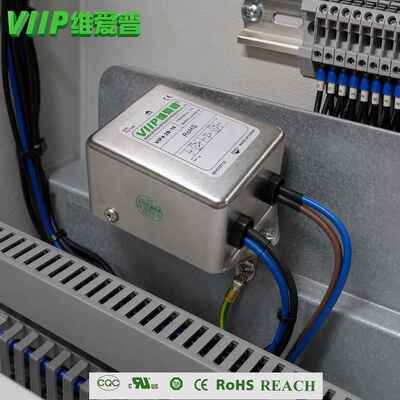

Suitable for industrial control, automation equipment, medical instruments, communication devices and consumer electronics. It applies to electronic products that require low leakage current and strict EMC performance, especially devices with built-in PCB circuit boards sensitive to power electromagnetic interference.
Industrial 10A EMC Power Filter VIP4-2B-10(B042Q0702) Low Voltage Compatible

Product Usage & Function

This EMI power filter suppresses common-mode and differential-mode high-frequency electromagnetic interference on AC power lines. It cleans power noise, stabilizes power supply, prevents equipment malfunctions caused by power disturbance, and helps end products pass EMC electromagnetic compatibility tests.

General FAQ for EMI Filters

Q1: What does RMS current rating mean for an EMI filter? A1: RMS current refers to the maximum continuous working current the filter can bear steadily. VIP4-2B-10 can continuously carry 10A RMS current without performance degradation.

Q2: What is leakage current of power filter? A2: Leakage current is the tiny current flowing from power lines to protective ground. Lower leakage current is critical for medical and safety-sensitive electronic devices.

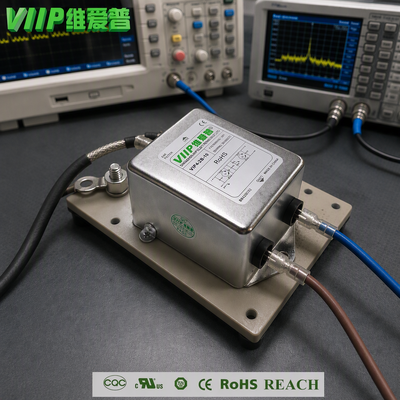

Q3: What is insertion loss? A3: Insertion loss (in dB) indicates the filter’s noise attenuation capability. Higher dB value means stronger effect to reduce electromagnetic interference on power cables.

Q4: What is hipot test? Why is it important? A4: Hipot is high-potential withstand voltage test, used to verify insulation strength. Our filter passes 1-minute hipot test to avoid electric leakage risk and meet safety specifications.

Q5: What factors will weaken filtering performance? A5: Poor grounding, long input/output cables mixed together and excessive soldering heat will reduce noise suppression effect. Keep filter near power inlet and separate input & output wires.

Tags:

250V EMC Emi Filter 150KHZ

110V 250V 20A EMC EMI Filter

Single Phase RFI Filter CE UL TUV

Good price online

Products Details

Home > Products >
EMC EMI Filter
>
Industrial 10A EMC Power Filter VIP4-2B-10(B042Q0702) Low Voltage Compatible
All Category

EMC EMI Filter

Single Phase EMI Filter

3 Phase EMI Filter

Ferrite Rings Around Cables

DC EMI Filters

AC EMI Filter

IEC EMI Filter

Military EMI Filters

Inverter EMI Filter

PCB Low Pass Filter

EMI Suppression Filter

Clip On Ferrite Core

Snap On Ferrite Choke

EMI Ferrite Core

Flat Ferrite Core
Industrial 10A EMC Power Filter VIP4-2B-10(B042Q0702) Low Voltage Compatible
  • Name
  • Name
  • Name
  • Name
  • Name
  • Name
  • Name

Industrial 10A EMC Power Filter VIP4-2B-10(B042Q0702) Low Voltage Compatible

Brand Name: VIIP WeiAiPu
Model Number: VIP4-2B-10(B042Q0702)
MOQ: 80
Price: 8.563USD
Packaging Details: neutral
Payment Terms: T/T
Detail Information
Product Description
Detail Information
Brand Name:
VIIP WeiAiPu
Certification:
CB UL CQC RoHS REACH
Model Number:
VIP4-2B-10(B042Q0702)
Line To Ground:
2000 VAC
Current Rating:
10A RMS Max
Line To Line:
500 VDC
Voltage Rating:
115/250VAC
Temperature Range:
-25°C~+100°C
Operating Frequency:
50/60Hz
Minimum Order Quantity:
80
Price:
8.563USD
Packaging Details:
neutral
Delivery Time:
31DAY
Payment Terms:
T/T
Supply Ability:
30K/MONTH
Highlight:

Industrial 10A EMC power filter

,

Low voltage compatible EMC filter

,

EMI filter with 10A capacity

Product Description
Product Introduction

VIP4-2B-10 is a single-phase PCB double-row pin EMI power filter manufactured by VIIP. It supports rated voltage of 115/250VAC and rated current up to 10A RMS, working at 50/60Hz. It delivers excellent common-mode insertion loss under the 50Ω system to suppress high-frequency power line noise. It features low leakage current, high insulation resistance and reliable hipot performance. The operating temperature covers -25℃ ~ +100℃. With through-hole double-row pin design, it can be directly soldered on PCB boards, offering convenient assembly and stable electrical connection for precision electronic equipment.
Industrial 10A EMC Power Filter VIP4-2B-10(B042Q0702) Low Voltage Compatible

Application Scope

Suitable for industrial control, automation equipment, medical instruments, communication devices and consumer electronics. It applies to electronic products that require low leakage current and strict EMC performance, especially devices with built-in PCB circuit boards sensitive to power electromagnetic interference.
Industrial 10A EMC Power Filter VIP4-2B-10(B042Q0702) Low Voltage Compatible

Product Usage & Function

This EMI power filter suppresses common-mode and differential-mode high-frequency electromagnetic interference on AC power lines. It cleans power noise, stabilizes power supply, prevents equipment malfunctions caused by power disturbance, and helps end products pass EMC electromagnetic compatibility tests.

General FAQ for EMI Filters

Q1: What does RMS current rating mean for an EMI filter? A1: RMS current refers to the maximum continuous working current the filter can bear steadily. VIP4-2B-10 can continuously carry 10A RMS current without performance degradation.

Q2: What is leakage current of power filter? A2: Leakage current is the tiny current flowing from power lines to protective ground. Lower leakage current is critical for medical and safety-sensitive electronic devices.

Q3: What is insertion loss? A3: Insertion loss (in dB) indicates the filter’s noise attenuation capability. Higher dB value means stronger effect to reduce electromagnetic interference on power cables.

Q4: What is hipot test? Why is it important? A4: Hipot is high-potential withstand voltage test, used to verify insulation strength. Our filter passes 1-minute hipot test to avoid electric leakage risk and meet safety specifications.

Q5: What factors will weaken filtering performance? A5: Poor grounding, long input/output cables mixed together and excessive soldering heat will reduce noise suppression effect. Keep filter near power inlet and separate input & output wires.

Tags:

250V EMC Emi Filter 150KHZ

110V 250V 20A EMC EMI Filter

Single Phase RFI Filter CE UL TUV
