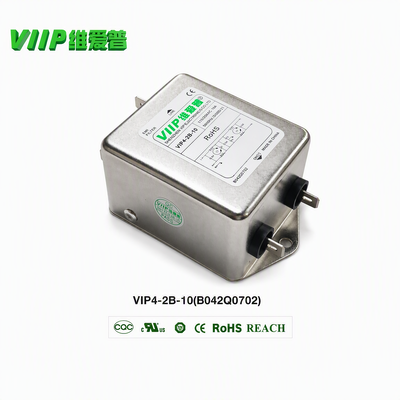

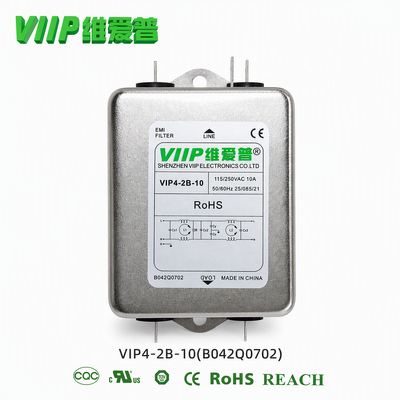

VIIP VIP4-2B-10(B042Q0702) 10A High Frequency Purification Power Filter

Brand Name:	VIIP WeiAiPu
Model Number:	VIP4-2B-10(B042Q0702)
MOQ:	80
Price:	8.563USD
Packaging Details:	neutral
Payment Terms:	T/T

Detail Information

Product Description

Detail Information

Certification:

CB UL CQC RoHS REACH

Line To Line:

500 VDC

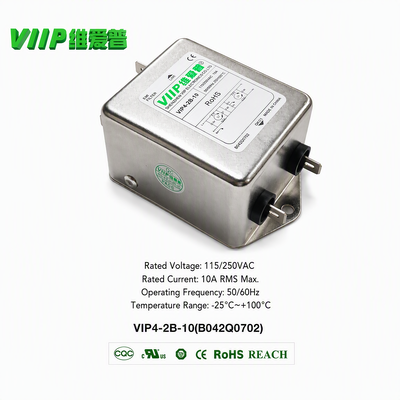

Voltage Rating:

115/250VAC

Operating Frequency:

50/60Hz

Current Rating:

10A RMS Max

Line To Ground:

2000 VAC

Temperature Range:

-25°C~+100°C

Supply Ability:

30K/MONTH

Highlight:

10A high frequency power filter

EMI power filter with purification

EMC filter for high frequency

Product Description

Product Introduction

VIP4-2B-10 is a 10A single-phase EMI power filter with double-row PCB pins, tailored for low-voltage electronic equipment. Rated for 115/250VAC at 50/60Hz, it effectively suppresses high-frequency common-mode and differential-mode noise on power traces. Boasting compact through-hole pin mounting, minimal leakage current, robust insulation and broad temperature adaptability, this filter supplies clean and stable power for a wide range of precision electronic devices.

VIIP VIP4-2B-10(B042Q0702) 10A High Frequency Purification Power Filter

Application Scope

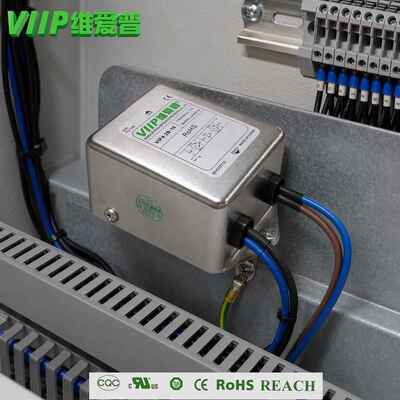

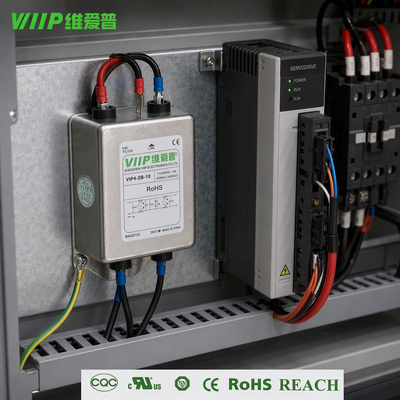

It is widely adopted in industrial control systems, automated machinery, medical instruments, smart home products, consumer electronics and communication hardware requiring power anti-interference and stable power quality. It is highly recommended for devices fitted with sensitive circuits and strict EMI control requirements.

VIIP VIP4-2B-10(B042Q0702) 10A High Frequency Purification Power Filter

Product Usage & Function

This power filter is designed to eliminate electromagnetic interference from AC power sources and attenuate high-frequency noise to stabilize input voltage and current. It prevents device malfunctions, system crashes and data errors induced by power noise. It optimizes the power supply environment, lifts overall equipment reliability and helps finished products pass EMC electromagnetic compatibility tests.

FAQ

Q1: What are the key parameters to check when picking an EMI power filter?

A1: Core parameters include rated voltage, rated current, leakage current, operating temperature range and insertion loss. These specs decide whether the filter matches your device and EMC test demands.

Q2: Is it necessary to add an EMI filter for devices with switching power supplies?

A2: Yes. Switching power supplies are major sources of high-frequency EMI. An EMI filter greatly reduces noise generated by switching circuits and helps your product meet EMC standards.

Q3: What is insertion loss of an EMI filter?

A3: Insertion loss indicates how much noise the filter can attenuate, measured in dB. Higher dB values mean stronger capability to weaken electromagnetic noise on power lines.

Q4: Can multiple filters be connected together to get better noise reduction?

A4: Not simply cascading blindly. Improper series connection may cause resonance and worsen interference. Please consult our technical team if multi-stage filtering is needed.

Q5: Are there any precautions for soldering PCB pin filters?

A5: Avoid overheating during soldering, as excessive temperature may damage internal components. Ensure solid soldering and keep input and output wiring separated for optimal filtering performance.
