VIP4-2B-10(B042Q0702) 10A Low Voltage Double Row Pin PCB Power Filter
  • Name
  • Name
  • Name
  • Name
  • Name
  • Name
  • Name

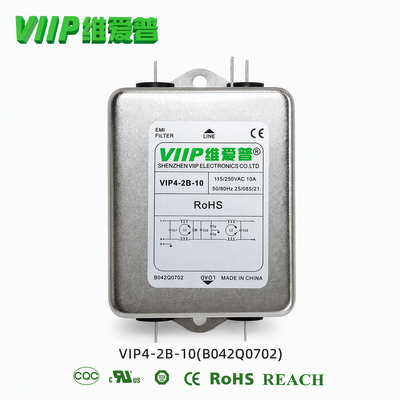

VIP4-2B-10(B042Q0702) 10A Low Voltage Double Row Pin PCB Power Filter

Brand Name: Weiaipu VIIP
Model Number: VIP4-2B-10(B042Q0702)
MOQ: 80
Price: 8.563$
Packaging Details: neutral
Payment Terms: T/T
Detail Information
Product Description
Detail Information
Place of Origin:
china
Certification:
CB UL CQC RoHS REACH

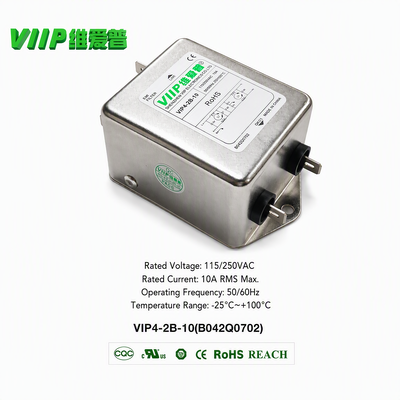

Voltage Rating:
115/250VAC
Current Rating:
10A RMS Max
Operating Frequency:
50/60Hz
Line To Ground:
2000 VAC
Line To Line:
500 VDC
Temperature Range:
-25°C~+100°C
Supply Ability:
30K/MONTH
Highlight:

10A low voltage PCB power filter

,

double row pin EMI filter

,

EMC power filter with warranty

Product Description
1. Product Introduction
The VIP4-2B-10 is a 10A single-phase PCB double-row pin EMI power filter designed for low-voltage electronic equipment. Rated at 115/250VAC and 50/60Hz, it effectively suppresses high-frequency common-mode and differential-mode noise on power lines. Featuring compact through-hole pin installation, low leakage current, high insulation strength and wide temperature resistance, this filter provides stable and pure power supply for various precision electronic devices.

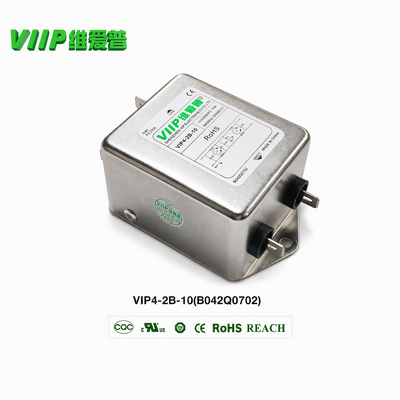

VIP4-2B-10(B042Q0702) 10A Low Voltage Double Row Pin PCB Power Filter
2. Application Scope

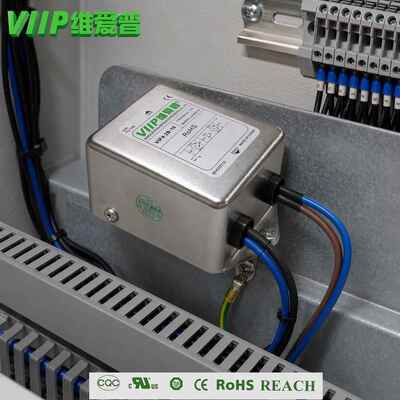

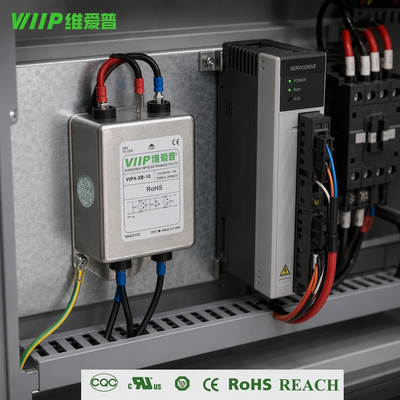

Widely applicable in industrial control systems, automation equipment, medical instruments, smart home devices, consumer electronics, communication equipment and other fields that require anti-interference and stable power quality. It is especially suitable for devices with sensitive circuits and strict EMI requirements.
VIP4-2B-10(B042Q0702) 10A Low Voltage Double Row Pin PCB Power Filter
3. Product Usage & Function
This power filter is mainly used to eliminate AC power electromagnetic interference, filter high-frequency noise, stabilize input voltage current, and prevent equipment failure, crash and data deviation caused by power clutter. It optimizes power environment, improves equipment operation stability, and helps products pass EMC electromagnetic compatibility tests.
4. General EMI Filter FAQ
Q1: What is the main function of an EMI power filter? A1: It mainly filters high-frequency electromagnetic noise and surge interference in the power line, purifies power quality, and protects electronic equipment from EMI disturbance and abnormal operation.
Q2: Why do electronic devices need power filters? A2: Switching power supply, motor operation and surrounding electromagnetic radiation will generate noise interference. Without filtering, equipment may crash, have signal disorder, or fail EMC certification.
Q3: What is the advantage of PCB pin type filter? A3: PCB double-row pin design features small size, easy welding, fast installation, firm connection and low contact resistance. It is suitable for mass production and compact equipment internal layout.
Q4: What is the working temperature of this filter? A4: The normal working temperature range is -25℃ to +100℃, which can adapt to most indoor and industrial working environments with stable filtering performance.
Q5: Will the filter affect the normal power supply of the device? A5: No. The filter only suppresses high-frequency interference and noise
