VIP4-1A-06(10243) 6A 250VAC Single-Phase EMI Power Line Filter EMC RFI Noise Suppressor for Industrial Automation Equipment

Brand Name:	Weiaipu
Model Number:	VIP4-1A-06(10243)
MOQ:	245PCS
Price:	2.82USD
Packaging Details:	Carton
Payment Terms:	T/T

Detail Information

Product Description

Detail Information

Place of Origin:

Shen Zhen

Certification:

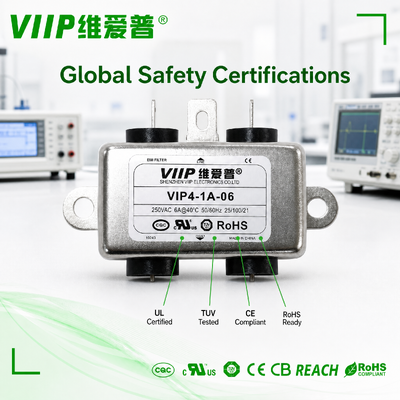

CQC CE ROHS TUV CB REACH UL

Voltage Rating:

115/250VAC

Leakagecurrent:

AT 115VAC/60Hz 0.35 MA Max;.AT 250VAC/50Hz 0.70 MA Max

Operating Frequency:

50/60Hz

Current Rating:

10A RMS Max

Productname:

Single Phase EMI Filter

Rohs Compliant:

Supply Ability:

3000PCS/WEEK

Highlight:

6A 250VAC single phase EMI filter

EMC RFI noise suppressor filter

industrial automation power line filter

Product Description

VIP4-1A-06(10243) 6A 250VAC Single-Phase EMI Power Line Filter EMC RFI Noise Suppressor for Industrial Automation Equipment

VIIP VIP4-1A-06(10243) Single-phase EMI Power Filter 6A 115/250VAC 50/60Hz

Product Overview

High-performance AC filter designed to suppress electromagnetic interference in single-phase power systems for CNC machines and industrial control equipment.

The Single Phase EMI Filter is a high-performance AC filter designed to suppress electromagnetic interference in single-phase power systems. Rated at 115/250VAC and 50/60Hz, it features exceptionally low leakage current for enhanced safety and efficiency. RoHS & REACH compliant and free from hazardous substances, it delivers reliable high-frequency noise attenuation to protect connected devices from malfunctions and EMI-induced damage.

Its compact, standardized design ensures easy integration into industrial machinery, household appliances, medical devices, and telecommunications equipment—making it a dependable choice for improving EMC performance and system stability.

Product Highlights

Suppresses both conducted EMI and RFI interference on AC power lines
Effectively purifies power supply and protects end-device from grid noise

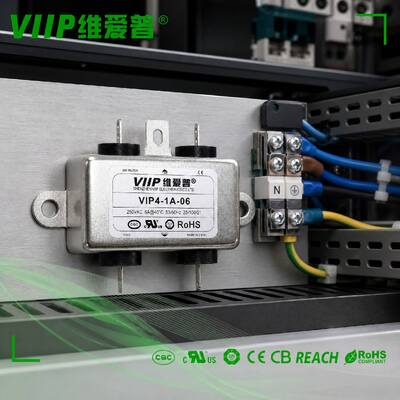

Compact metal housing structure, space-saving for equipment internal installation
Mounting hole reserved for easy chassis fixation
Stable electrical performance for long-time continuous running

Electrical Characteristics

Parameter	Value
Voltage Rating	115/250 VAC
@115VAC (Current Rating)	6A RMS Max.
@250VAC (Current Rating)	6A RMS Max.
Operating Frequency	50/60 Hz
@115VAC/60Hz (Leakage Current)	0.3 mA Max.
@250VAC/50Hz (Leakage Current)	0.6 mA Max.
Hi-pot Rating	For One Minute
IR	100M ohm @ 500VDC
Temperature Range	-25°C ~ +100°C

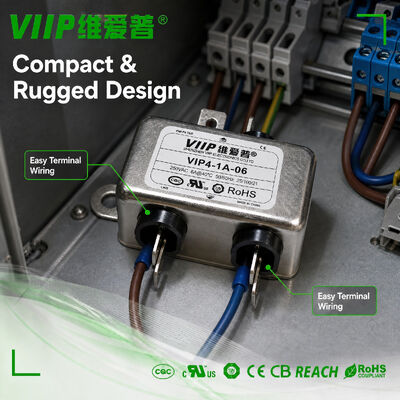

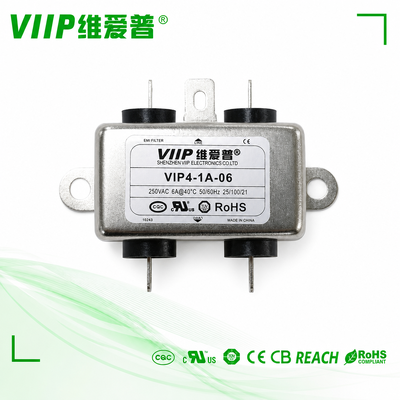

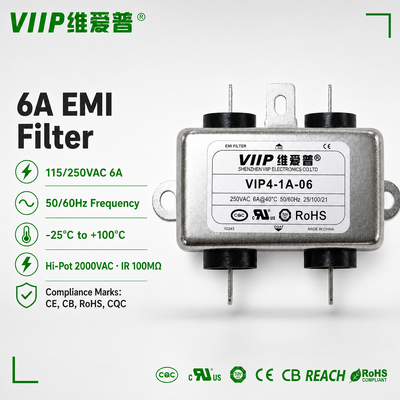

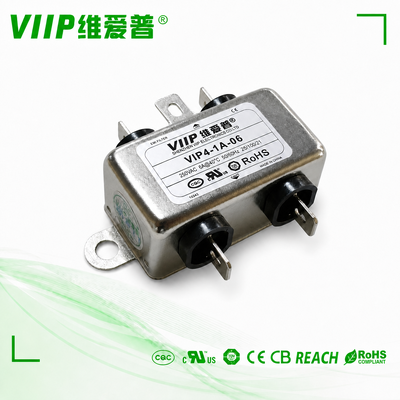

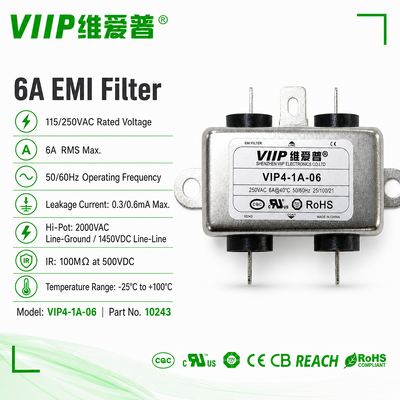

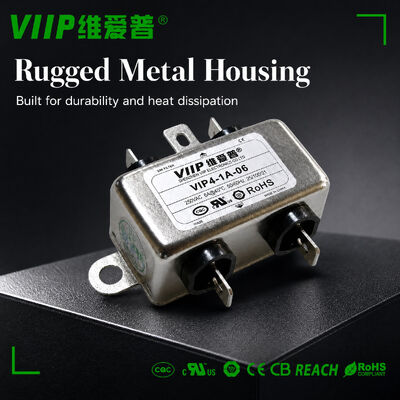

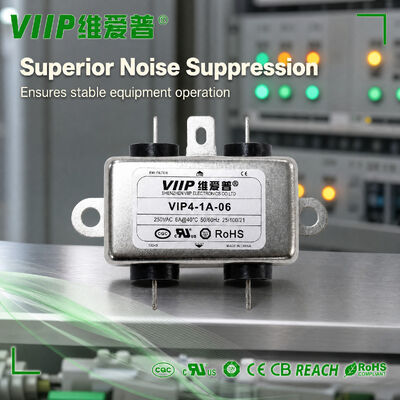

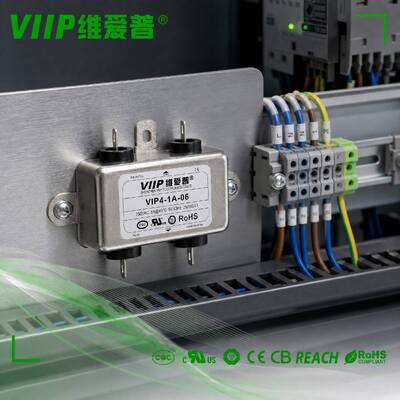

Electrical Schematic & Product Images

Support and Services

Product Overview: High-performance single-phase EMI filter, compliant with international standards.
Technical Support: Refer to the datasheet and installation manual for full specs, wiring diagrams, and safety guidelines.
Installation: Must be performed by qualified personnel; ensure proper grounding and secure connections per applicable electrical codes.
Maintenance: Regular inspection recommended to maintain filter efficiency and extend product lifespan.
Troubleshooting: Verify wiring, check for physical damage, and confirm operating conditions (temperature/humidity) meet specifications.
Custom Solutions: Tailored EMI filter options available, including product testing and certification support. Contact our technical team for application advice and problem resolution.

Frequently Asked Questions

Q: What is your MOQ for VIP4-series power filters?

A: For standard off-the-shelf VIP4 series models, low MOQ is acceptable. Stock items support small-batch trial orders; for bulk mass production orders, MOQ will be based on production arrangement. Contact our sales team for detailed MOQ information.

Q: Can I get samples of VIP4-series filters for my internal EMC performance pre-test?

A: Yes, sample service is available. Standard VIP4 models can be supplied as samples for your lab EMC validation and performance verification. Sample freight will be borne by the buyer.

Q: What are the rated voltage, rated current and operating frequency for VIP4-series power filters?

A: VIP4 series single-phase filters are rated at 115/250VAC, operating frequency 50/60Hz. Different part numbers support different rated current from 1A-10A (for example VIP4-2B-10 is 10A model). Please refer to the product approval sheet for exact parameter of each model.

Q: Can you provide insertion-loss curves including common-mode and differential-mode performance for VIP4-series filters?

A: Yes. Insertion-loss data under 50Ω standard test system is included in each model's approval sheet. We can provide test curves for common-mode and differential-mode noise attenuation for your circuit simulation and EMC evaluation.

Q: What is the hip-pot (high-potential) test standard for VIP4-series power filters?

A: Every finished VIP4 filter undergoes hip-pot withstand voltage test for 1 minute as per specification, together with insulation resistance test (≥100MΩ @500VDC input/output to ground). Full test specification is shown on the approval sheet.

Q: If my product fails during EMC testing after using VIP4 filters, can you provide technical support?

A: Yes, our in-house EMC engineering team can offer technical support. Please share your test report, application condition and circuit information, we will analyze and give suggestions for improvement or model adjustment.

Q: Could you help select proper VIP-series filter model for my specific application such as inverter, servo drive or control cabinet?

A: Sure. Please provide key information including working voltage, rated current, equipment type, main noise frequency and installation condition. Our team will help you pick the most suitable filter solution for your system.
