VIIP VIP4-1A-06(10243) Single-phase EMI Power Filter 6A 115/250VAC 50/60Hz AC Line Noise Suppressor for Electronic Equipment

Brand Name: Weiaipu
Model Number: VIP4-1A-06(10243)
MOQ: 245PCS
Price: 2.82USD
Packaging Details: Carton
Payment Terms: T/T
Detail Information
Product Description
Detail Information
Place of Origin:
Shen Zhen
Certification:
CQC CE ROHS TUV CB REACH UL
Voltage Rating:
115/250VAC
Leakagecurrent:
AT 115VAC/60Hz 0.35 MA Max;.AT 250VAC/50Hz 0.70 MA Max
Operating Frequency:
50/60Hz
Current Rating:
10A RMS Max
Productname:
Single Phase EMI Filter
Rohs Compliant:
Yes
Supply Ability:
3000PCS/WEEK
Highlight:

Single-phase EMI power filter 6A

,

AC line noise suppressor 115/250VAC

,

EMI filter for electronic equipment

Product Description
VIIP VIP4-1A-06(10243) Single-phase EMI Power Filter 6A 115/250VAC 50/60Hz
Product Overview

High-performance AC filter designed to suppress electromagnetic interference in single-phase power systems for CNC machines and industrial control equipment.

The Single Phase EMI Filter is a high-performance AC filter designed to suppress electromagnetic interference in single-phase power systems. Rated at 115/250VAC and 50/60Hz, it features exceptionally low leakage current for enhanced safety and efficiency. RoHS & REACH compliant and free from hazardous substances, it delivers reliable high-frequency noise attenuation to protect connected devices from malfunctions and EMI-induced damage.

Its compact, standardized design ensures easy integration into industrial machinery, household appliances, medical devices, and telecommunications equipment—making it a dependable choice for improving EMC performance and system stability.

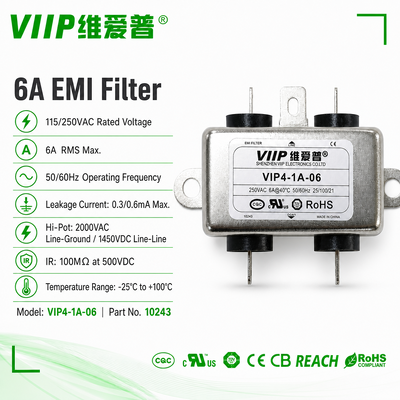

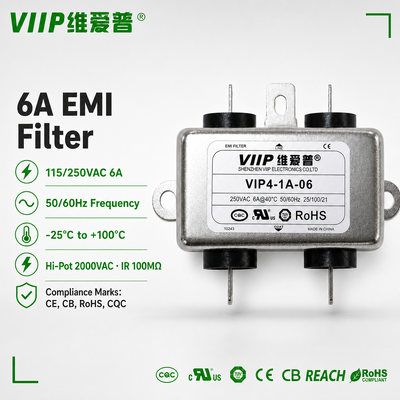

Electrical Characteristics
Parameter Value
Voltage Rating 115/250 VAC
@115VAC (Current Rating) 6A RMS Max.
@250VAC (Current Rating) 6A RMS Max.
Operating Frequency 50/60 Hz
@115VAC/60Hz (Leakage Current) 0.3 mA Max.
@250VAC/50Hz (Leakage Current) 0.6 mA Max.
Hi-pot Rating For One Minute
IR 100M ohm @ 500VDC
Temperature Range -25°C ~ +100°C

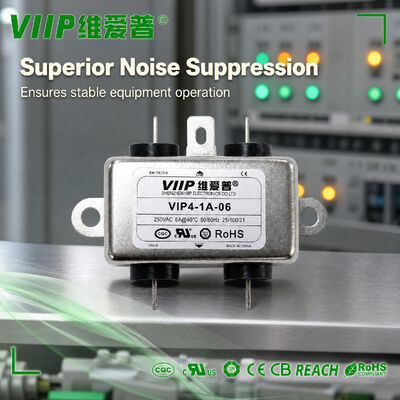

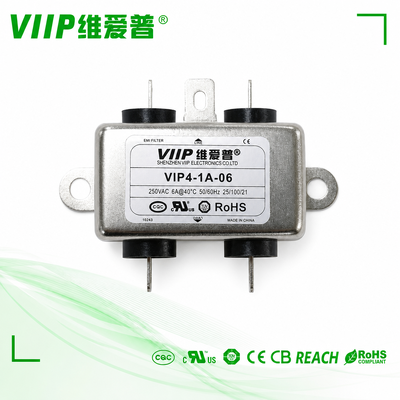

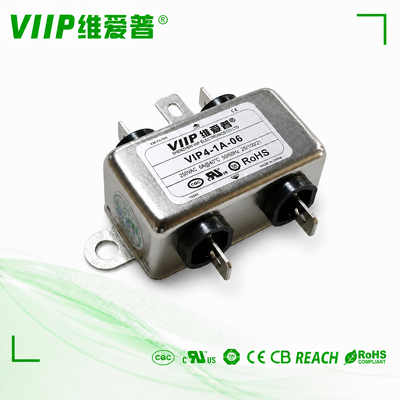

Electrical Schematic & Product Images
EMI Filter Electrical Schematic Diagram EMI Filter Product View - Front Perspective EMI Filter Product View - Side Perspective EMI Filter Product View - Terminal Connections EMI Filter Product View - Mounting Details
Support and Services
  • Product Overview: High-performance single-phase EMI filter, compliant with international standards.
  • Technical Support: Refer to the datasheet and installation manual for full specs, wiring diagrams, and safety guidelines.
  • Installation: Must be performed by qualified personnel; ensure proper grounding and secure connections per applicable electrical codes.
  • Maintenance: Regular inspection recommended to maintain filter efficiency and extend product lifespan.
  • Troubleshooting: Verify wiring, check for physical damage, and confirm operating conditions (temperature/humidity) meet specifications.
  • Custom Solutions: Tailored EMI filter options available, including product testing and certification support. Contact our technical team for application advice and problem resolution.
Frequently Asked Questions
Q: What is your MOQ for VIP4-series power filters?
A: For standard off-the-shelf VIP4 series models, low MOQ is acceptable. Stock items support small-batch trial orders; for bulk mass production orders, MOQ will be based on production arrangement. Contact our sales team for detailed MOQ information.
Q: Can I get samples of VIP4-series filters for my internal EMC performance pre-test?
A: Yes, sample service is available. Standard VIP4 models can be supplied as samples for your lab EMC validation and performance verification. Sample freight will be borne by the buyer.
Q: What are the rated voltage, rated current and operating frequency for VIP4-series power filters?
A: VIP4 series single-phase filters are rated at 115/250VAC, operating frequency 50/60Hz. Different part numbers support different rated current from 1A-10A (for example VIP4-2B-10 is 10A model). Please refer to the product approval sheet for exact parameter of each model.
Q: Can you provide insertion-loss curves including common-mode and differential-mode performance for VIP4-series filters?
A: Yes. Insertion-loss data under 50Ω standard test system is included in each model's approval sheet. We can provide test curves for common-mode and differential-mode noise attenuation for your circuit simulation and EMC evaluation.
Q: What is the hip-pot (high-potential) test standard for VIP4-series power filters?
A: Every finished VIP4 filter undergoes hip-pot withstand voltage test for 1 minute as per specification, together with insulation resistance test (≥100MΩ @500VDC input/output to ground). Full test specification is shown on the approval sheet.
Q: If my product fails during EMC testing after using VIP4 filters, can you provide technical support?
A: Yes, our in-house EMC engineering team can offer technical support. Please share your test report, application condition and circuit information, we will analyze and give suggestions for improvement or model adjustment.
Q: Could you help select proper VIP-series filter model for my specific application such as inverter, servo drive or control cabinet?
A: Sure. Please provide key information including working voltage, rated current, equipment type, main noise frequency and installation condition. Our team will help you pick the most suitable filter solution for your system.
