Product Brief Introduction

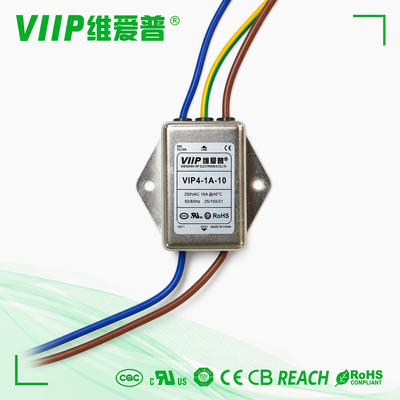

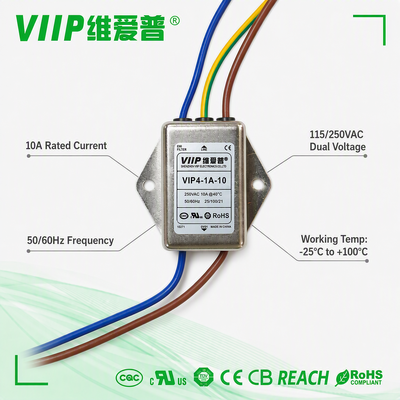

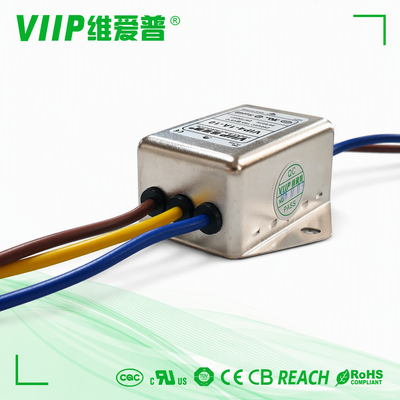

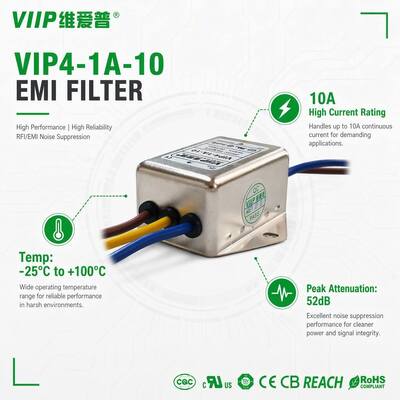

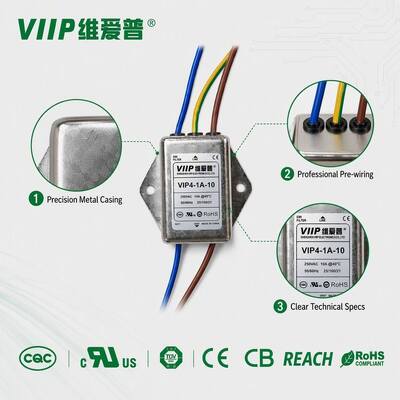

VIP4-1A-10 is a high quality single phase EMI power filter rated for 10A, developed to clear unwanted electrical noise along AC power lines. It accepts 115VAC and 250VAC input voltage and operates steadily under 50Hz and 60Hz mains frequency. Built with a single stage LC circuit structure, this filter efficiently mitigates common mode electromagnetic interference on power wires. It delivers purified power for electronic devices and enhances the whole system’s ability to resist disturbances. With outstanding electrical safety performance, wide temperature working range and compact size, it is suitable for both industrial and consumer electronic equipment.

Application Scope and Usage

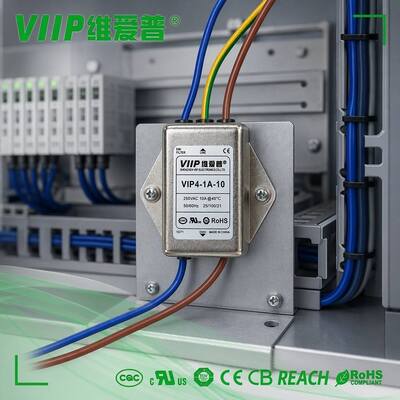

This 10A EMI filter is widely applied in single phase electronic devices requiring upgraded EMC performance. Representative applications include industrial automation machinery, precision test instruments, home electrical goods, switching power supplies, communication hardware and office automation devices. It restrains high frequency noise originating from the power grid and avoids electromagnetic disturbance causing equipment failure and signal disruption. It assists end products to meet global EMC requirements and reduces mutual interference between various electronic units to boost the overall stability and safety of the complete system.

FAQ

Q1 Why do I need an EMI filter for my electronic device

A1 Power lines carry various high frequency electromagnetic noise from the grid. This noise may trigger abnormal operation, signal jumps or system crash of your electronic products. Adding an EMI filter can isolate such interference, protect sensitive internal circuits and help your finished product pass EMC compliance testing for overseas sales.

Q2 How do I select the right current rating for an EMI filter

A2 You need to choose the filter rated current higher than the maximum continuous working current of your equipment. For this VIP4-1A-10 model, its rated 10A current should not be exceeded during continuous operation. It is not recommended to pick a filter with current rating too close to your device peak current.

Q3 What is hipot test for EMI power filters

A3 Hipot test also known as high potential test checks the dielectric strength of filter insulation. Our VIP4-1A-10 can withstand 2000VAC line to ground and 1450VDC line to line for one minute. This test verifies that the filter has good insulation property and reduces electric leakage risks during operation.

Q4 Can I use this filter for medical equipment projects

A4 This standard EMI filter can be considered for medical devices only after checking its leakage current parameter. Medical equipment has strict limits on leakage current to ground. Please share your technical requirements with our engineering team so we can confirm whether this model fits your medical application or recommend alternative options.

Q5 Is sample service available for this EMI filter

A5 Yes we provide sample service for this standard VIP4-1A-10 filter. You can order samples to carry out your internal performance test and EMC pre test. Once you confirm the sample performance meets your demands you can proceed to bulk purchase for mass production.
