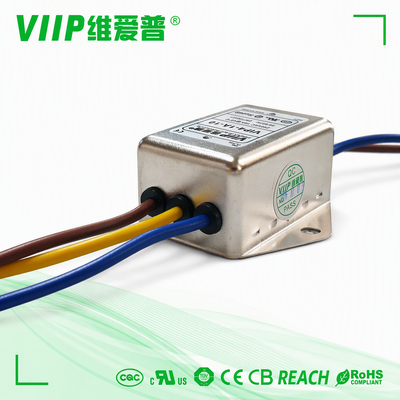

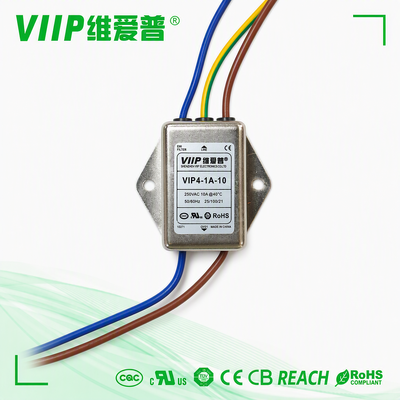

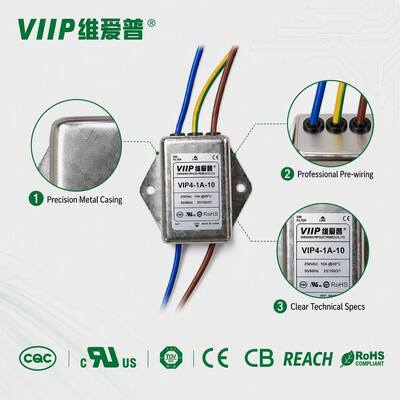

VIP4-1A-10 (10271) 10A EMC Noise Suppression Filter AC Line RFI Filter

Brand Name: Weiaipu VIIP
Model Number: VIP4-1A-10(10271)
MOQ: 120
Price: 4.17USD
Packaging Details: neutral
Payment Terms: T/T
Detail Information
Product Description
Detail Information

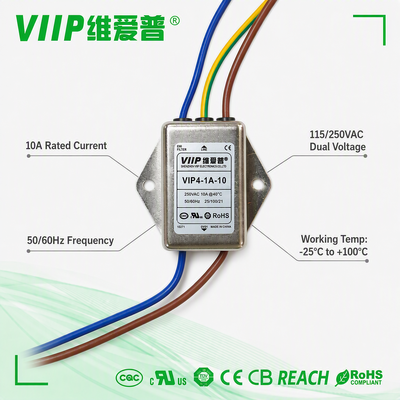

Certification:
CB UL CQC RoHS REACH
Voltage Rating:
115/250VAC
Line To Line:
1450 VDC
Current Rating:
10A RMS Max
Operating Frequency:
50/60Hz
Temperature Range:
-25°C~+100°C
Line To Ground:
2000 VAC
Supply Ability:
30K/MONTH
Highlight:

10A EMC noise suppression filter

,

AC line RFI filter

,

EMC EMI filter with warranty

Product Description
Product Brief Introduction

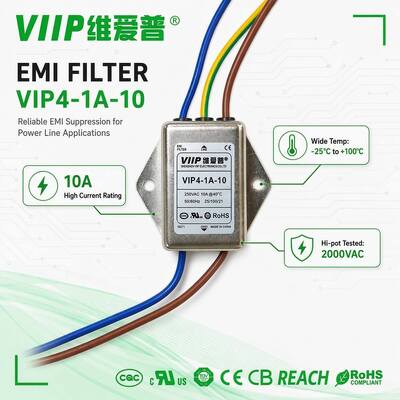

VIP4-1A-10 is a high performance single phase EMI power filter rated at 10A, built to eliminate noise on AC power cables. It accepts 115VAC and 250VAC input and operates at both 50Hz and 60Hz mains frequency. Designed with a single stage LC circuit, this unit efficiently attenuates common mode electromagnetic noise on power lines. It delivers purified power supply for electronic hardware and boosts the system’s ability to resist interference. Boasting solid electrical safety, broad temperature tolerance and compact construction, it is suitable for both industrial and consumer electronic systems.

VIP4-1A-10 (10271) 10A EMC Noise Suppression Filter AC Line RFI Filter

Application Scope and Usage

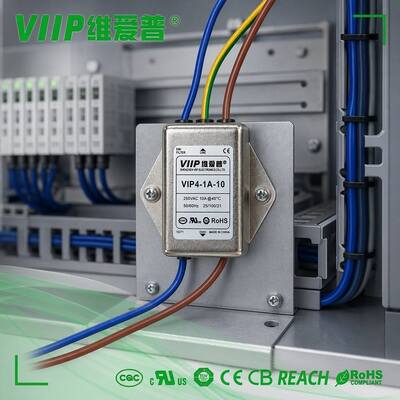

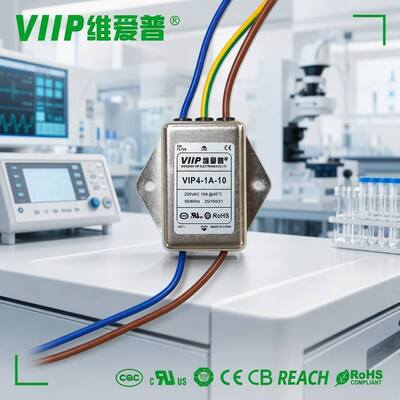

This 10A EMI filter finds broad use in single phase electronic devices that require upgraded EMC performance. Common scenarios cover industrial automation machinery, precision test meters, home appliances, switching power supplies, communication hardware and office automation devices. It suppresses high frequency noise coming from the power grid and stops electromagnetic disturbance from triggering device faults and signal chaos. It assists end products in meeting global EMC standards and reduces cross interference between different electronics to lift the stability and safety of the whole system.

VIP4-1A-10 (10271) 10A EMC Noise Suppression Filter AC Line RFI Filter

FAQ

Q1 What is common mode noise for power filters

A1 Common mode noise refers to the unwanted high frequency signals that appear on both live and neutral wires relative to the ground. This type of interference is one of the main causes of EMC failure. Our EMI filter can effectively weaken this noise so that your equipment can work reliably and pass electromagnetic compatibility tests.

Q2 What is leakage current of EMI filter

A2 Leakage current is the tiny current flowing from power lines to ground through the internal capacitors of the filter. Its value changes with working voltage. You need to check this parameter before use especially for equipment with strict ground current limits such as medical devices to ensure it matches your project requirements.

Q3 What is the maximum operating temperature of this filter

A3 This filter can work continuously within the temperature range from minus 25 degrees Celsius to 100 degrees Celsius. It can handle the heat generated inside cabinets and the temperature fluctuation of factory environments. Working beyond this temperature range will affect its service life and filtering performance.

Q4 Can multiple EMI filters be used together in one device

A4 It is possible to use multiple filters in one device but it is not always recommended. Improper cascading may cause resonance and reduce noise suppression effect. You can share your circuit layout with our engineering team and we will give professional suggestions on filter selection and layout.

Q5 What certifications can you provide for the EMI filter

A5 We can supply relevant certification documents and test reports for our EMI filters such as RoHS and REACH. If you need specific EMC test reports or other certificates for your product export please tell us your target market and we will check available documents for you.
