Clip On Ferrite Core

V18018 Anti-Interference 15mm Cable Opening Snap Type NiZn Ferrite Core EMC Noise Suppressor for Electronic Equipment

All Category

Flat Ferrite Core

Miss. Vicky Lee

vip6@szviip.com

19925448748

19925448748

Contact Now

V18018 Anti-Interference 15mm Cable Opening Snap Type NiZn Ferrite Core EMC Noise Suppressor for Electronic Equipment

Brand Name:	Weiaipu
Model Number:	V18018
MOQ:	300PCS
Price:	USD0.80
Packaging Details:	Carton
Payment Terms:	T/T

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

ROHS REACH

Model:

V18018

Brand:

VIIP Weiaipu

Material:

VN09 Nickel‑Zinc Soft Ferrite

Compliance:

RoHS, REACH

Test Frequency Range:

1‑500 MHz

Structure Type:

Split Clip‑on /snap‑on

Product Name:

Clip‑on / Split Clamp Ferrite Core

Highlight:

Snap Type Ferrite Core Noise Suppressor

NiZn Ferrite Core EMC Suppressor

15mm Cable Opening Ferrite Core

Product Description

V18018 Anti-Interference 15mm Cable Opening Snap Type NiZn Ferrite Core EMC Noise Suppressor

Weiaipu VIIP V18018 Clip-on Ferrite Core with 15mm ID NiZn EMI/RFI Noise Suppressor for Power Cable EMC Filter. This RoHS and REACH compliant component provides effective EMI/EMC cable noise suppression for electronic equipment.

Engineered for on-site EMC troubleshooting and high-frequency noise suppression for large-diameter pre-installed cables, this split clamp-style ferrite core clamps directly onto finished wiring without requiring cable disassembly. It delivers stable broadband impedance performance across 1-500 MHz, providing minimum impedance of 25 Ω at 25 MHz and 70 Ω at 100 MHz.

Key Features

Suitable for consumer electronics power cord applications
Perfect for EMC debugging and interference improvement
Pre-tested before delivery to guarantee performance
Compact housing size saves equipment internal space
Snap-lock structure keeps ferrite tightly closed on cable

Specifications

Parameter	Value
Model	V18018
Material	VN09 Nickel-Zinc Soft Ferrite, Split-clamp type
Core Inner Diameter	15.0 mm

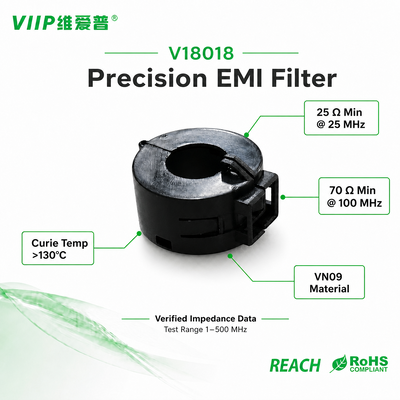

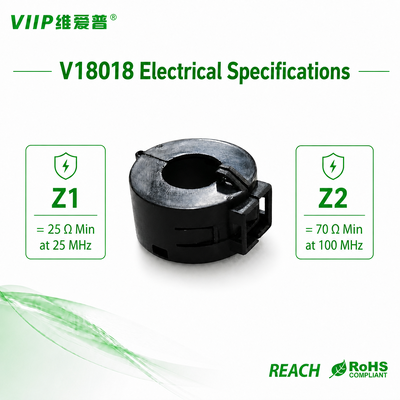

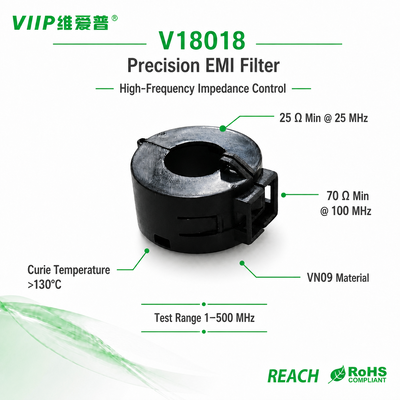

Min. Impedance	25 Ω @ 25 MHz; 70 Ω @ 100 MHz
Test Frequency Range	1-500 MHz
Compliance	RoHS, REACH

Note: Complete dimensional tolerances refer to original approval sheet Rev.4.0. Main dimension reference: A=29.0 mm, B=33.0 mm, C=15.0 mm, D=15.5 mm, E=21.5 mm

Applications

EMC troubleshooting for large-diameter pre-installed power and signal cables of industrial robot workstation units
High-frequency noise suppression for heavy-duty communication harnesses of intelligent warehousing AGV handling equipment
EMI mitigation for external power cables of oil-gas field remote data acquisition terminals
On-site noise rectification for interconnection cables of broadcast-TV signal transmission peripheral devices

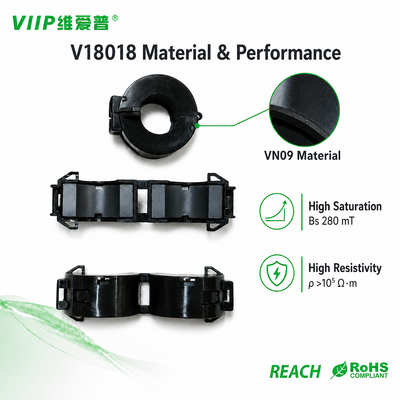

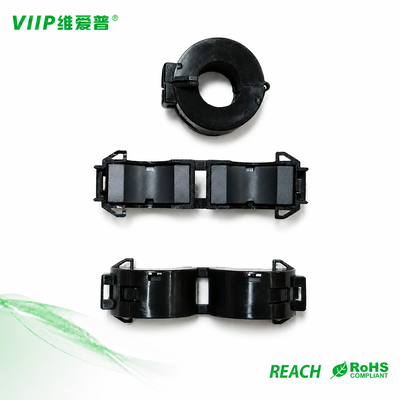

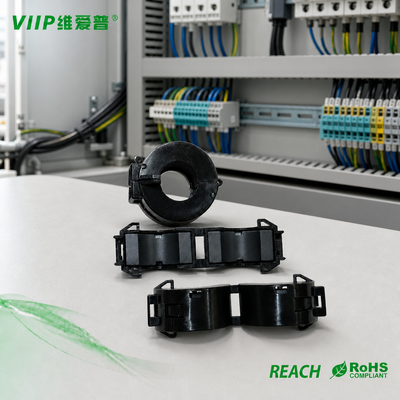

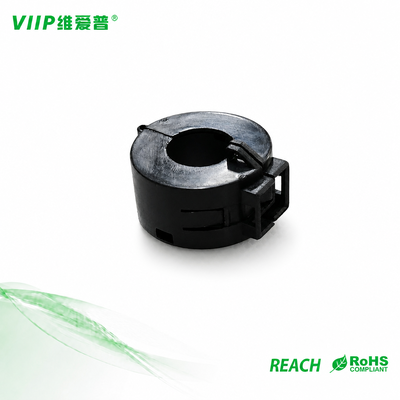

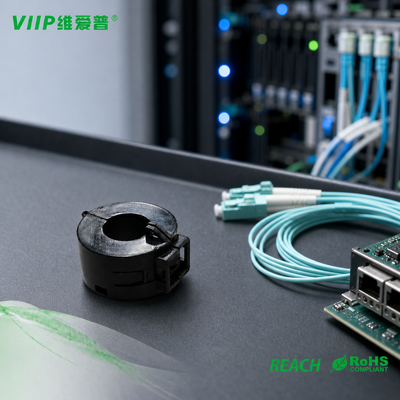

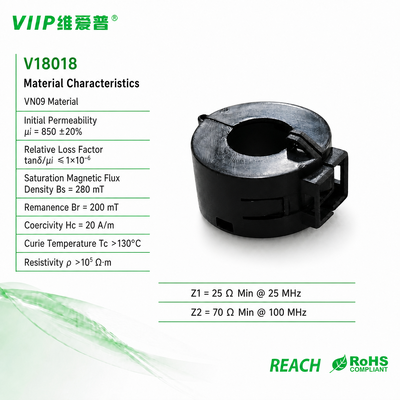

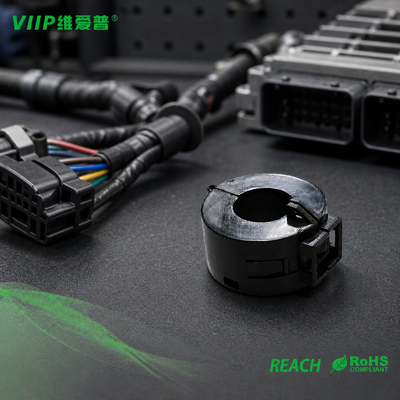

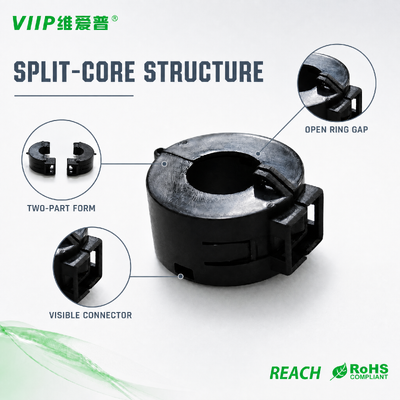

Product Images

Frequently Asked Questions

Can I get free samples for ferrite rings and clamps?

Yes, we can provide free samples for our ferrite rings and clamps.

What is your regular order requirement for ferrite rings & clamps?

Normally orders shall follow our minimum package quantity. Exceptions are acceptable for your first trial order.

Does the free-sample policy mean I can place small-quantity orders below MOQ for all orders?

Free samples are for performance verification only. Except for your first order, formal repeat orders need to follow our minimum package quantity requirement.

What certificates do your ferrite cores and clamp-on ferrites have? Can you provide approval sheets?

Our ferrite & clamp-on ferrite comply with RoHS and REACH. We can provide PDF approval sheets (specification document) for your project review.

What is the typical production lead-time for ferrite and clamp-on ferrite mass orders?

Production lead-time is typically 2-5 weeks, depending on order quantity and stock availability. The exact lead-time will be confirmed prior to placing a formal order.

Can you customize impedance/size for ferrite cores and clamp-on ferrites?

Custom service is available upon your technical requirement, MOQ for customized items will apply.

Are clamp-on ferrite rings reusable after installation?

Yes, the snap-on design allows for easy removal and reinstallation, making them reusable.
