Clip On Ferrite Core

Weiaipu VIIP V18018 Clip-on Ferrite Core 15mm ID NiZn EMI/RFI Noise Suppressor for Power Cable EMC Filter RoHS REACH

All Category

Flat Ferrite Core

Miss. Vicky Lee

vip6@szviip.com

19925448748

19925448748

Contact Now

Weiaipu VIIP V18018 Clip-on Ferrite Core 15mm ID NiZn EMI/RFI Noise Suppressor for Power Cable EMC Filter RoHS REACH

Brand Name:	Weiaipu
Model Number:	V18018
MOQ:	300PCS
Price:	USD0.80
Packaging Details:	Carton
Payment Terms:	T/T

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

ROHS REACH

Model:

V18018

Brand:

VIIP Weiaipu

Material:

VN09 Nickel‑Zinc Soft Ferrite

Compliance:

RoHS, REACH

Test Frequency Range:

1‑500 MHz

Structure Type:

Split Clip‑on /snap‑on

Product Name:

Clip‑on / Split Clamp Ferrite Core

Highlight:

15mm clip on ferrite core

NiZn EMI RFI noise suppressor

RoHS compliant ferrite core

Product Description

Weiaipu VIIP V18018 Clip-on Ferrite Core 15mm ID NiZn EMI/RFI Noise Suppressor for Power Cable EMC Filter RoHS REACH

The V18018 snap-on ferrite core features a 15mm cable hole for EMI suppression and anti-interference protection in wiring harnesses. This VIIP V18018 clip-on ferrite core with 15.0mm ID is made from VN09 material and complies with RoHS/REACH standards, serving as an effective EMI/EMC cable noise suppressor.

Engineered for on-site EMC troubleshooting and high-frequency noise suppression for large-diameter pre-installed cables, this split clamp-style ferrite core clamps directly onto finished wiring without requiring cable disassembly or re-termination. It delivers stable broadband impedance performance across 1-500 MHz, providing minimum impedance of 25 Ω at 25 MHz and 70 Ω at 100 MHz.

Key Features

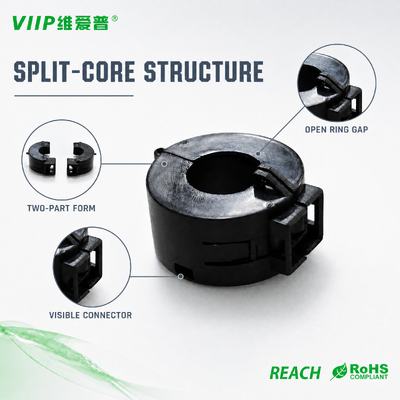

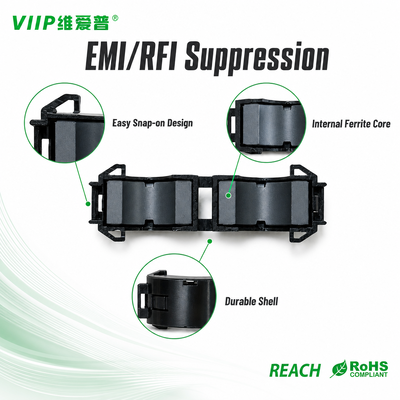

Snap-on clip-on design for easy installation without cutting cables
15 mm inner diameter compatible with various power cables

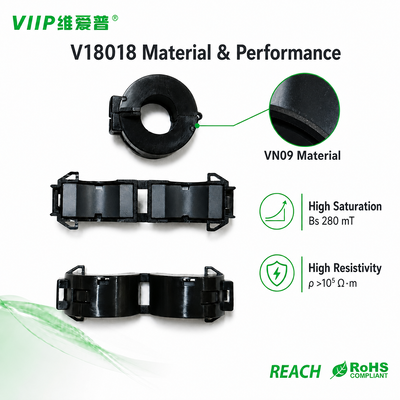

Made of Ni-Zn VN09 ferrite material
Excellent EMI & RFI noise suppression performance

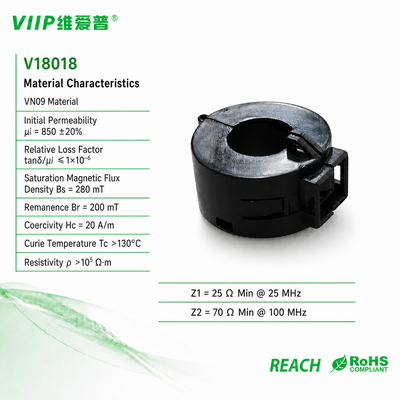

Specifications

Parameter	Value
Model	V18018
Material	VN09 Nickel-Zinc Soft Ferrite, Split-clamp type
Core Inner Diameter	15.0 mm

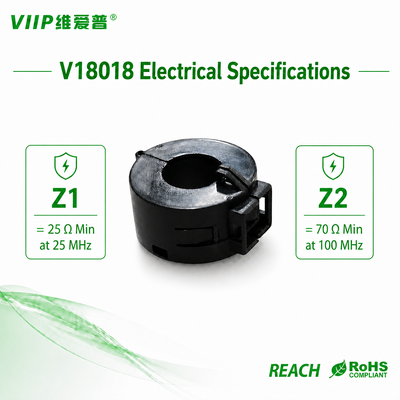

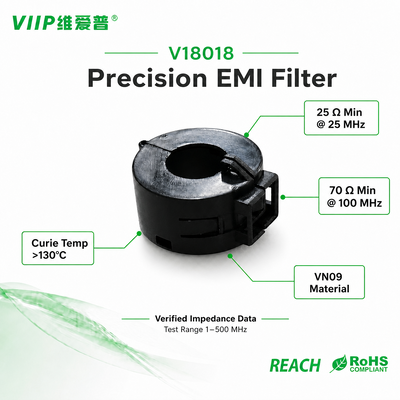

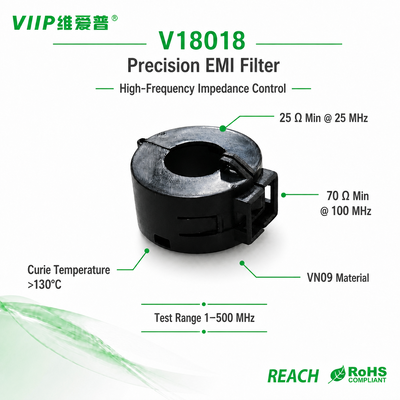

Min. Impedance	25 Ω @ 25 MHz; 70 Ω @ 100 MHz
Test Frequency Range	1-500 MHz
Compliance	RoHS, REACH

Note: Complete dimensional tolerances refer to original approval sheet Rev.4.0. Main dimension reference: A=29.0 mm, B=33.0 mm, C=15.0 mm, D=15.5 mm, E=21.5 mm

Applications

EMC troubleshooting for large-diameter pre-installed power and signal cables of new-energy charging equipment
High-frequency noise suppression for heavy-duty communication harnesses of smart transportation roadside terminals
EMI mitigation for external power cables of medical auxiliary detection devices
On-site noise rectification for interconnection cables of smart building and intelligent fire-protection systems

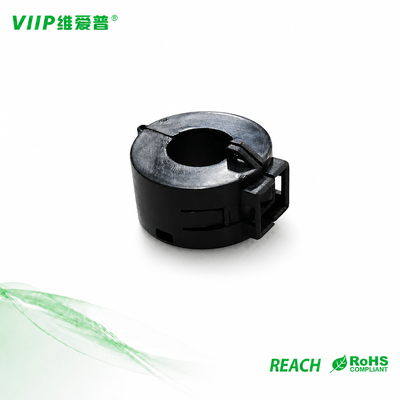

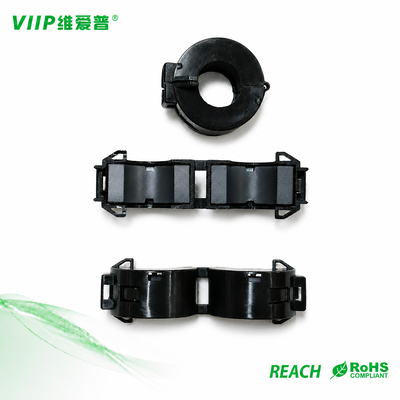

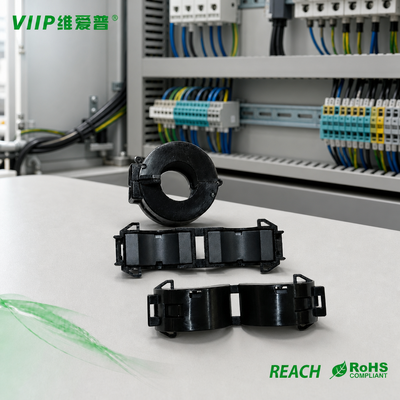

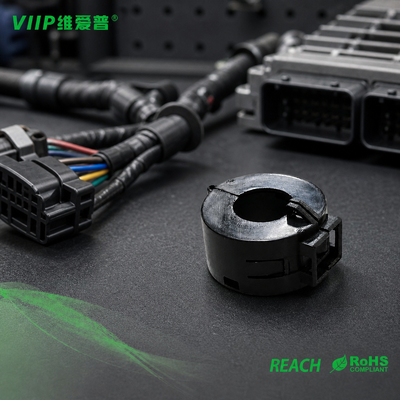

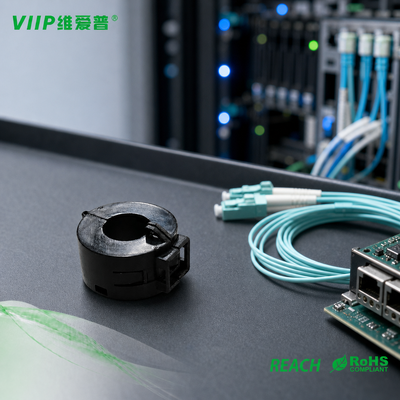

Product Images

Frequently Asked Questions

Can I get free samples for ferrite rings and clamps?

Yes, we can provide free samples for our ferrite rings and clamps.

What is your regular order requirement for ferrite rings & clamps?

Normally orders shall follow our minimum package quantity. Exceptions are acceptable for your first trial order.

Does the free-sample policy mean I can place small-quantity orders below MOQ for all orders?

Free samples are for performance verification only. Except for your first order, formal repeat orders need to follow our minimum package quantity requirement.

What certificates do your ferrite cores and clamp-on ferrites have? Can you provide approval sheets?

Our ferrite & clamp-on ferrite comply with RoHS and REACH. We can provide PDF approval sheets (specification document) for your project review.

What is the typical production lead-time for ferrite and clamp-on ferrite mass orders?

Production lead-time is typically 2-5 weeks, depending on order quantity and stock availability. The exact lead-time will be confirmed prior to placing a formal order.

Can you customize impedance/size for ferrite cores and clamp-on ferrites?

Custom service is available upon your technical requirement, MOQ for customized items will apply.

Are clamp-on ferrite rings reusable after installation?

Yes, the snap-on design allows for easy removal and reinstallation, making them reusable.
