V18018 Snap on Ferrite Core 15mm Cable Hole EMI Suppression Magnetic Core Anti-Interference Ferrite Core for Wiring Harness

Brand Name:	Weiaipu
Model Number:	V18018
MOQ:	300PCS
Price:	USD0.80
Packaging Details:	Carton
Payment Terms:	T/T

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

ROHS REACH

Model:

V18018

Brand:

VIIP Weiaipu

Material:

VN09 Nickel‑Zinc Soft Ferrite

Compliance:

RoHS, REACH

Test Frequency Range:

1‑500 MHz

Structure Type:

Split Clip‑on /snap‑on

Product Name:

Clip‑on / Split Clamp Ferrite Core

Highlight:

15mm snap on ferrite core

EMI suppression magnetic core

ferrite core for wiring harness

Product Description

V18018 Snap on Ferrite Core 15mm Cable Hole EMI Suppression Magnetic Core Anti-Interference Ferrite Core for Wiring Harness

VIIP V18018 Clip-on Ferrite Core, 15.0mm ID, VN09, RoHS/REACH, EMI/EMC Cable Noise Suppressor

Shenzhen VIIP V18018 EMC Ferrite Core 15.0mm VN09 RoHS REACH Anti-Interference Magnetic Core for Cable Filter

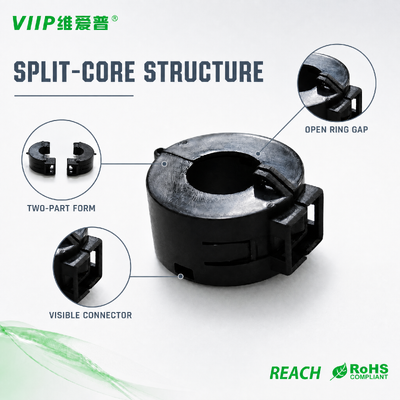

VIIP V18018 split clamp-style ferrite core is engineered for on-site EMC troubleshooting and high-frequency noise suppression for large-diameter pre-installed cables. Unlike solid toroidal cores requiring cable threading, this split ferrite design clamps directly onto finished wiring without cable disassembly or re-termination.

Delivering stable broadband impedance performance across 1-500 MHz, this core provides minimum impedance of 25 Ω at 25 MHz and 70 Ω at 100 MHz. It serves as an effective corrective component for projects suffering unexpected high-frequency conducted and radiated interference, fully complying with RoHS and REACH environmental requirements.

Key Features

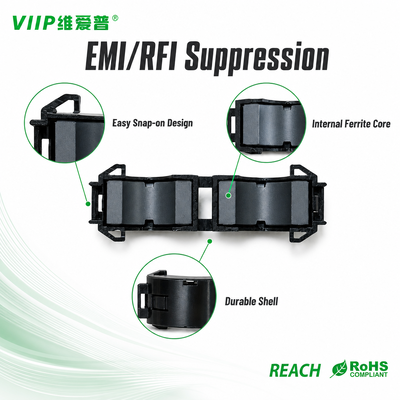

Snap-on clip-on structure enables quick field installation without cable connector disassembly

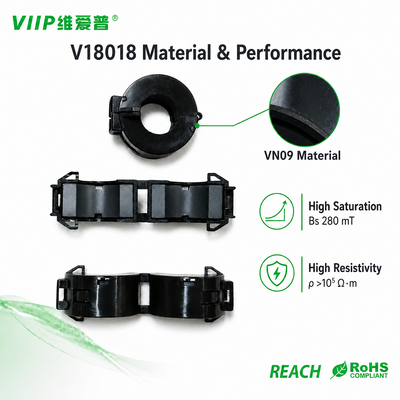

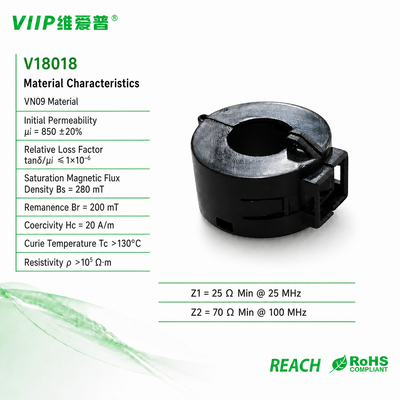

Adopts premium VN09 ferrite grade with initial permeability up to 850 (±20%)
Broad effective frequency range from 1 MHz to 500 MHz for wide-band EMI noise attenuation
15.0 mm core inner aperture, perfectly fits cables with outer diameter up to 15.0 mm
Optimized clip locking design prevents accidental pop-open under vibration and mechanical shock

Specifications

Item	Parameter
Model	V18018
Material	VN09 Nickel-Zinc Soft Ferrite, Split-clamp type
Core Inner Diameter	15.0 mm

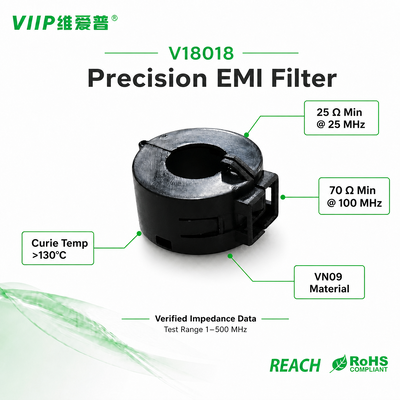

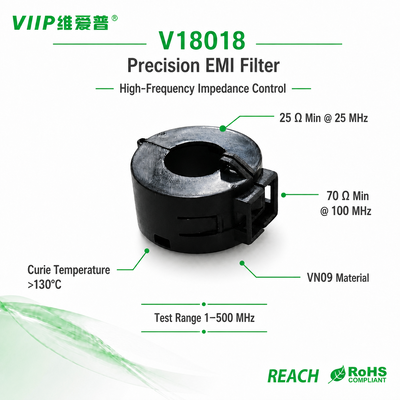

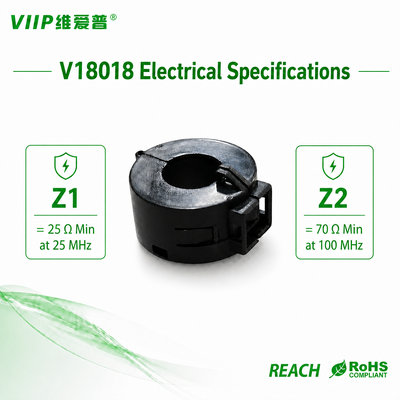

Min. Impedance	25 Ω @ 25 MHz; 70 Ω @ 100 MHz
Test Frequency Range	1-500 MHz
Compliance	RoHS, REACH

Note: Complete dimensional tolerances refer to original approval sheet Rev.4.0. Main dimension reference: A=29.0 mm, B=33.0 mm, C=15.0 mm, D=15.5 mm, E=21.5 mm

Applications

EMC troubleshooting for large-diameter pre-installed power and signal cables of industrial automation equipment
High-frequency noise suppression for heavy-duty communication harnesses of outdoor industrial control cabinets
EMI mitigation for external power cables of large-size test and measurement instruments
On-site noise rectification for interconnection cables of industrial monitoring and field-deployed automation systems

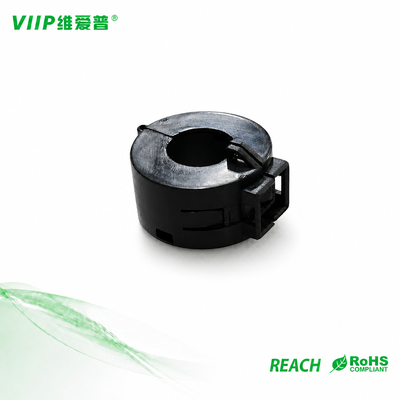

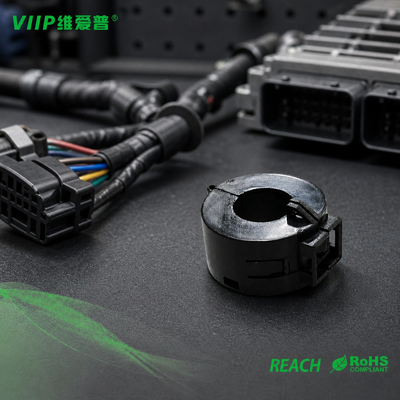

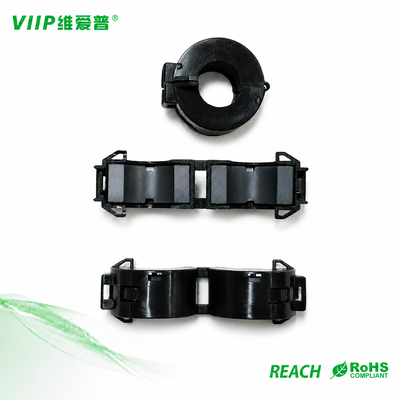

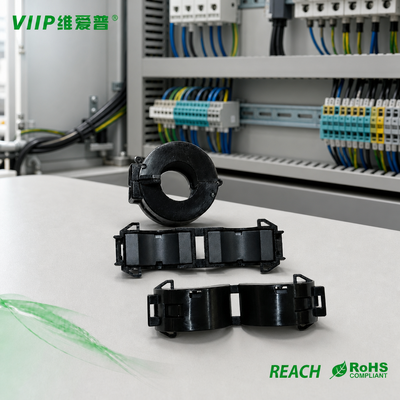

Product Images

Frequently Asked Questions

Can I get free samples for ferrite rings and clamps?

Yes, we can provide free samples for our ferrite rings and clamps.

What is your regular order requirement for ferrite rings & clamps?

Normally orders shall follow our minimum package quantity. Exceptions are acceptable for your first trial order.

Does the free-sample policy mean I can place small-quantity orders below MOQ for all orders?

Free samples are for performance verification only. Except for your first order, formal repeat orders need to follow our minimum package quantity requirement.

What certificates do your ferrite cores and clamp-on ferrites have? Can you provide approval sheets?

Our ferrite & clamp-on ferrite comply with RoHS and REACH. We can provide PDF approval sheets (specification document) for your project review.

What is the typical production lead-time for ferrite and clamp-on ferrite mass orders?

Production lead-time is typically 2-5 weeks, depending on order quantity and stock availability. The exact lead-time will be confirmed prior to placing a formal order.

Can you customize impedance/size for ferrite cores and clamp-on ferrites?

Custom service is available upon your technical requirement, MOQ for customized items will apply.

Are clamp-on ferrite rings reusable after installation?

Yes, the snap-on design allows for easy removal and reinstallation, making them reusable.
