Q1: Does the EMI filter produce leakage current during operation?

A1: All standard EMI power filters contain built-in Y capacitors, which will generate tiny leakage current during normal operation. This is a normal physical phenomenon for EMC filtering designs. The leakage current of this model is kept within a safe and reasonable range, which will not affect the normal use of equipment or cause safety hazards under standard grounding conditions.

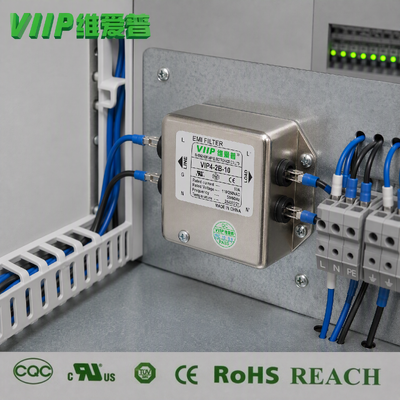

Q2: What is the correct installation position for an EMI filter?

A2: The EMI filter must be installed as close as possible to the equipment’s AC power input terminal. Shorten the input wiring as much as possible and keep the filter’s input cables and output cables completely separated. Avoid crossing or parallel wiring of input and output lines, which can prevent secondary interference and maximize the filtering effect.

Q3: Can the EMI filter be used for DC power supply devices?

A3: This series is a professional AC EMI filter, specially designed for 50/60Hz AC power systems. It cannot be applied to DC power circuits. Using AC filters on DC equipment will fail to achieve filtering effects and may even cause abnormal operation or component damage. Please select a dedicated DC EMI filter for DC scenarios.

Q4: What environmental factors will affect the service performance of EMI filters?

A4: Long-term high-temperature operation, humid environment, severe vibration and dusty working conditions will all affect the stability and service life of EMI filters. It is recommended to install the filter in a dry, ventilated and heat-dissipating environment, avoid over-temperature and damp exposure, and ensure long-term stable working performance.

Q5: Do I need to replace the EMI filter regularly?

A5: EMI filters have no fixed replacement cycle. With standard installation and rated load operation, they can work stably for many years. Regular inspection is recommended. If aging, abnormal heating, increased noise or poor anti-interference effect occurs, the filter should be checked or replaced in time to ensure continuous EMC compliance.
