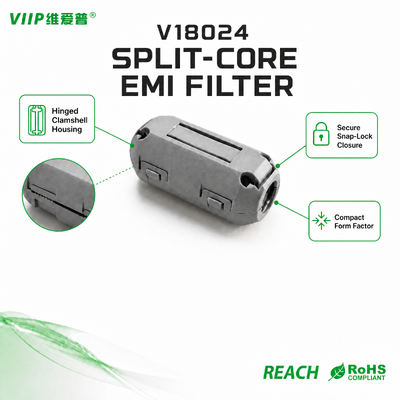

VIIP V18024 Clip-on Ferrite Core with 6.3mm Cable Opening VN09 Nickel-Zinc Soft Ferrite for 1-500 MHz EMC Noise Suppression

Brand Name:	Weiaipu
Model Number:	V18024
MOQ:	405PCS
Price:	USD0.41
Packaging Details:	Carton
Payment Terms:	T/T

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

ROHS REACH

Model:

V18024

Brand:

VIIP Weiaipu

Material:

VN09 Nickel‑Zinc Soft Ferrite

Compliance:

RoHS, REACH

Test Frequency Range:

1‑500 MHz

Product Type:

Split Clamp‑on Type

Highlight:

6.3mm Cable Opening Clip-on Ferrite Core

VN09 Nickel-Zinc Soft Ferrite EMC Ferrite Core

1-500 MHz Frequency Range Noise Suppression Ferrite Core

Product Description

Shenzhen VIIP V18024 EMC Ferrite Core 6.3mm VN09 RoHS REACH Anti‑Interference Magnetic Core for Cable Filter

Product Overview

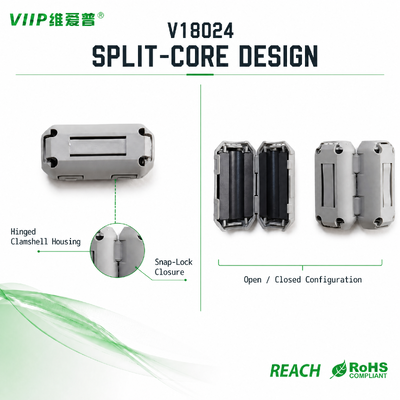

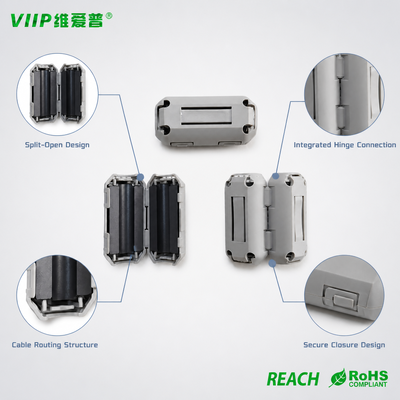

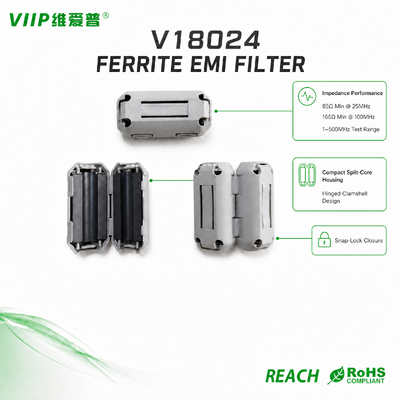

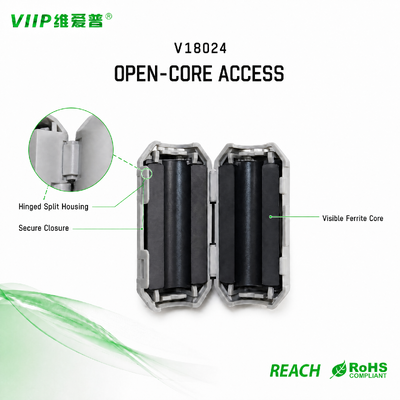

VIIP V18024 split clamp‑style ferrite core is engineered for on‑site EMC troubleshooting and high‑frequency noise suppression for pre‑installed medium‑diameter cables. Unlike solid toroidal cores requiring cable threading, this split ferrite design clamps directly onto finished wiring without cable disassembly or re‑termination.

Delivering stable broadband impedance performance across 1‑500 MHz, this core provides minimum impedance of 85 Ω at 25 MHz and 165 Ω at 100 MHz. It serves as an effective corrective component for projects suffering unexpected high‑frequency conducted and radiated interference, fully complying with RoHS and REACH environmental requirements.

Key Features

Official approval sheet and impedance‑frequency test curve report are available for customer project review.
Delivers excellent suppression for high‑frequency conducted interference on power supply cables.
Reduces EMI noise on signal cables and improves overall signal transmission stability.
Assists finished devices to pass third‑party EMC compliance certification tests.
Compact overall dimensions save valuable installation space inside control cabinets and equipment housings.

Specifications

Item	Parameter
Model	V18024
Material	VN09 Nickel‑Zinc Soft Ferrite, Split‑clamp type
Core Inner Diameter	6.3 mm
Min. Impedance	85 Ω @ 25 MHz; 165 Ω @ 100 MHz
Test Winding	Ø0.5×0.5TS×100L(mm)
Test Frequency Range	1‑500 MHz
Compliance	RoHS, REACH

Note: Complete dimensional tolerances refer to original approval sheet Rev.4.0. Main dimension reference:A=17.8mm,B=16.8mm,C=6.3mm,D=36.6mm,E=3.0 mm

Applications

EMI filtering for control signal cables of access‑control and video surveillance systems
High‑frequency interference suppression for data transmission lines of automated production‑line equipment
Noise attenuation for wiring harnesses of collaborative industrial robot peripheral modules
EMC interference mitigation for power and communication cables of smart building IoT gateway units

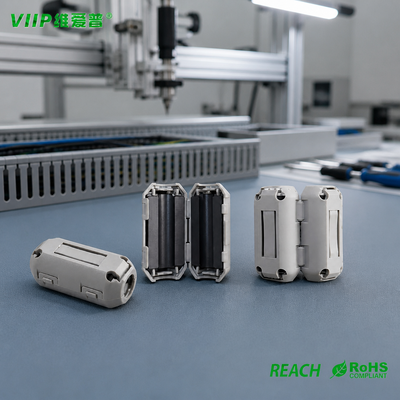

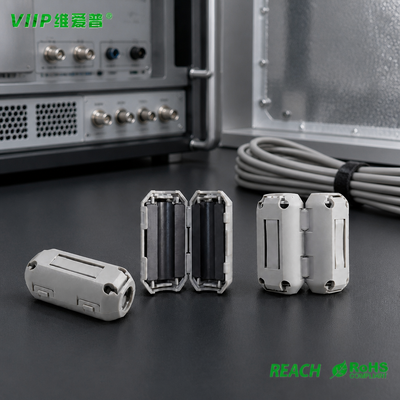

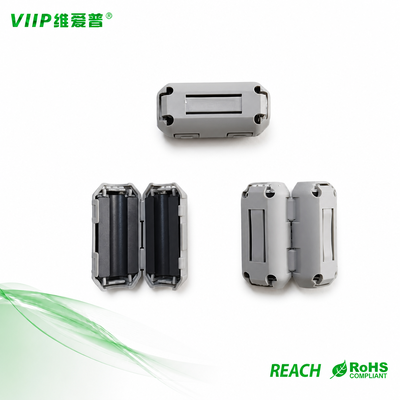

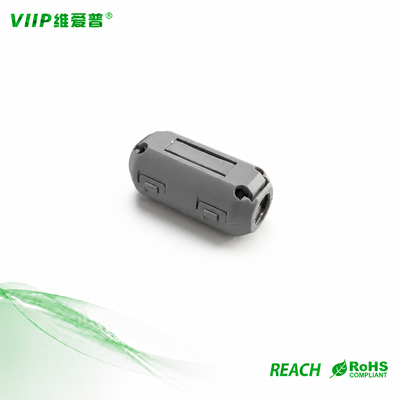

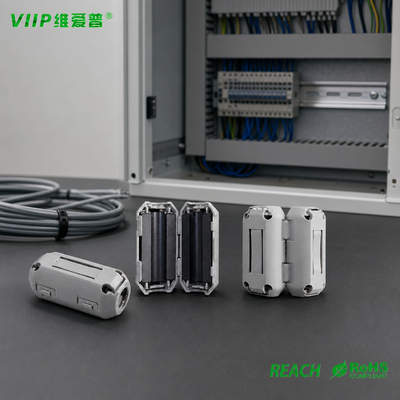

Product Images

Frequently Asked Questions

Can I get free samples for ferrite rings and clamps?

Yes, we can provide free samples for our ferrite rings and clamps.

What is your regular order requirement for ferrite rings & clamps?

Normally orders shall follow our minimum package quantity. Exceptions are acceptable for your first trial order.

Does the free-sample policy mean I can place small-quantity orders below MOQ for all orders?

Free samples are for performance verification only. Except for your first order, formal repeat orders need to follow our minimum package quantity requirement.

What certificates do your ferrite cores and clamp-on ferrites have? Can you provide approval sheets?

Our ferrite & clamp-on ferrite comply with RoHS and REACH. We can provide PDF approval sheets (specification document) for your project review.

What is the typical production lead-time for ferrite and clamp-on ferrite mass orders?

Production lead-time is typically 2-5 weeks, depending on order quantity and stock availability. The exact lead-time will be confirmed prior to placing a formal order.

Can you customize impedance/size for ferrite cores and clamp-on ferrites?

Custom service is available upon your technical requirement, MOQ for customized items will apply.

Are clamp-on ferrite rings reusable after installation?

Yes, the snap-on design allows for easy removal and reinstallation, making them reusable.
