Clip On Ferrite Core

VIIP V18024 Clip On Ferrite Core with VN09 Nickel-Zinc Soft Ferrite for 6.3mm Cable Hole and 1-500 MHz Frequency Range

All Category

Flat Ferrite Core

Miss. Vicky Lee

vip6@szviip.com

19925448748

19925448748

Contact Now

VIIP V18024 Clip On Ferrite Core with VN09 Nickel-Zinc Soft Ferrite for 6.3mm Cable Hole and 1-500 MHz Frequency Range

Brand Name:	Weiaipu
Model Number:	V18024
MOQ:	405PCS
Price:	USD0.41
Packaging Details:	Carton
Payment Terms:	T/T

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

ROHS REACH

Model:

V18024

Brand:

VIIP Weiaipu

Material:

VN09 Nickel‑Zinc Soft Ferrite

Compliance:

RoHS, REACH

Test Frequency Range:

1‑500 MHz

Product Type:

Split Clamp‑on Type

Highlight:

VN09 Nickel-Zinc Soft Ferrite Clip On Ferrite Core

6.3mm Cable Hole EMC Ferrite Core

1-500 MHz Frequency Range Ferrite Noise Suppression Core

Product Description

Shenzhen VIIP V18024 EMC Ferrite Core 6.3mm VN09 RoHS REACH Anti‑Interference Magnetic Core for Cable Filter

Product Overview

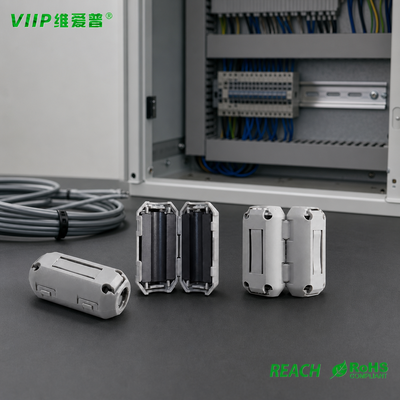

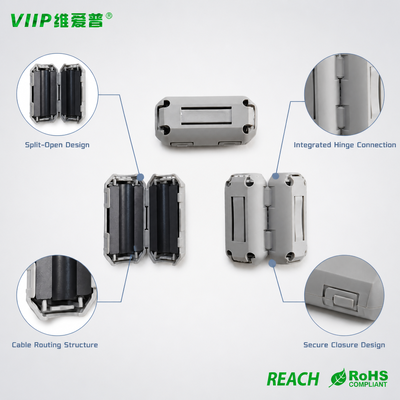

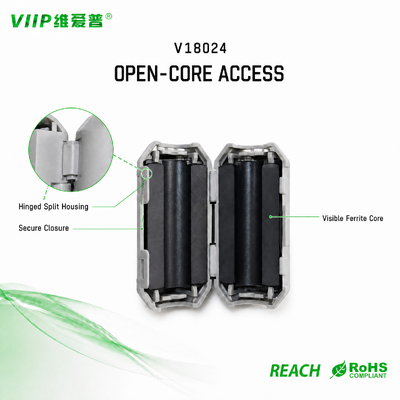

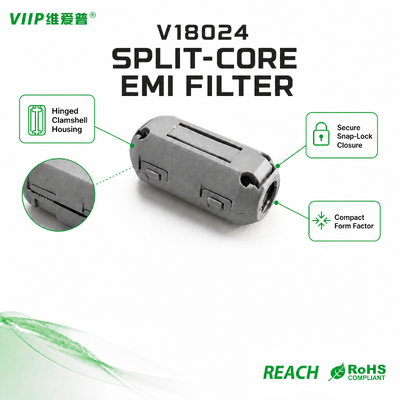

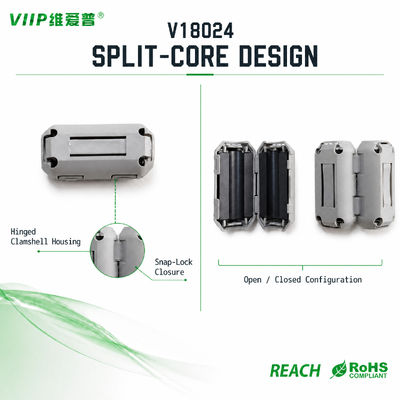

VIIP V18024 split clamp‑style ferrite core is engineered for on‑site EMC troubleshooting and high‑frequency noise suppression for pre‑installed medium‑diameter cables. Unlike solid toroidal cores requiring cable threading, this split ferrite design clamps directly onto finished wiring without cable disassembly or re‑termination.

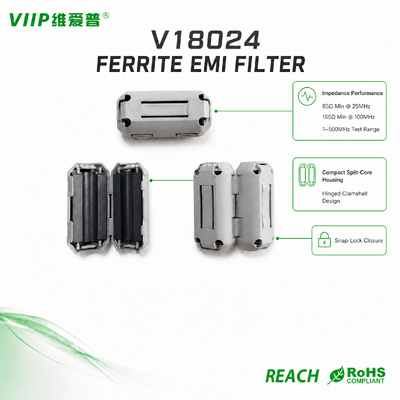

Delivering stable broadband impedance performance across 1‑500 MHz, this core provides minimum impedance of 85 Ω at 25 MHz and 165 Ω at 100 MHz. It serves as an effective corrective component for projects suffering unexpected high‑frequency conducted and radiated interference, fully complying with RoHS and REACH environmental requirements.

Key Features

Available for diversified application scenarios: industry, medical, communication, lab‑instrument and security equipment.
Dense‑texture ferrite core body, resist cracking under normal assembling and installation stress.
Support technical consultation of EMC debugging, obtain professional suggestion for noise‑reduction solution.
Adopts VN09 nickel‑zinc ferrite material, Curie temperature＞130 °C, good high‑frequency loss characteristic.

Specifications

Item	Parameter
Model	V18024
Material	VN09 Nickel‑Zinc Soft Ferrite, Split‑clamp type
Core Inner Diameter	6.3 mm
Min. Impedance	85 Ω @ 25 MHz; 165 Ω @ 100 MHz
Test Winding	Ø0.5×0.5TS×100L(mm)
Test Frequency Range	1‑500 MHz
Compliance	RoHS, REACH

Note: Complete dimensional tolerances refer to original approval sheet Rev.4.0. Main dimension reference:A=17.8mm,B=16.8mm,C=6.3mm,D=36.6mm,E=3.0 mm

Applications

Interference attenuation for signal harnesses of photovoltaic combiner box peripheral assemblies
EMC noise mitigation for communication and power cables of outdoor IoT monitoring terminals
High‑frequency noise suppression for interconnection cables of small‑scale energy‑storage auxiliary units
On‑site EMC debug & rectification for finished equipment cables without rewiring

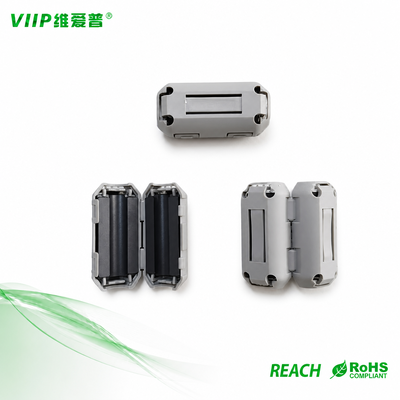

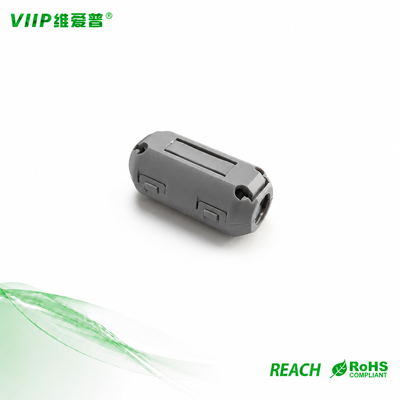

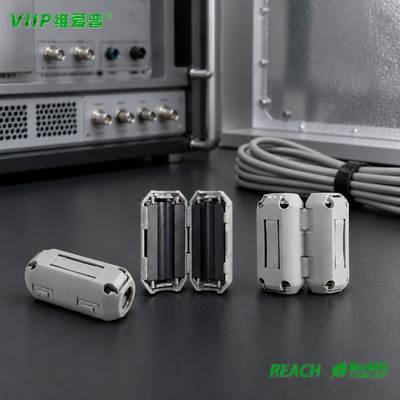

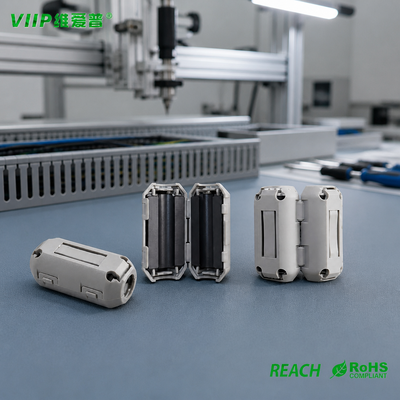

Product Images

Frequently Asked Questions

Can I get free samples for ferrite rings and clamps?

Yes, we can provide free samples for our ferrite rings and clamps.

What is your regular order requirement for ferrite rings & clamps?

Normally orders shall follow our minimum package quantity. Exceptions are acceptable for your first trial order.

Does the free-sample policy mean I can place small-quantity orders below MOQ for all orders?

Free samples are for performance verification only. Except for your first order, formal repeat orders need to follow our minimum package quantity requirement.

What certificates do your ferrite cores and clamp-on ferrites have? Can you provide approval sheets?

Our ferrite & clamp-on ferrite comply with RoHS and REACH. We can provide PDF approval sheets (specification document) for your project review.

What is the typical production lead-time for ferrite and clamp-on ferrite mass orders?

Production lead-time is typically 2-5 weeks, depending on order quantity and stock availability. The exact lead-time will be confirmed prior to placing a formal order.

Can you customize impedance/size for ferrite cores and clamp-on ferrites?

Custom service is available upon your technical requirement, MOQ for customized items will apply.

Are clamp-on ferrite rings reusable after installation?

Yes, the snap-on design allows for easy removal and reinstallation, making them reusable.
