Clip On Ferrite Core

VIIP V18023 6.8mm Nickel-Zinc Soft Ferrite Clip-on Ferrite Core for 1-500 MHz EMC Noise Suppression

All Category

Flat Ferrite Core

Miss. Vicky Lee

vip6@szviip.com

19925448748

19925448748

Contact Now

VIIP V18023 6.8mm Nickel-Zinc Soft Ferrite Clip-on Ferrite Core for 1-500 MHz EMC Noise Suppression

Brand Name:	Weiaipu
Model Number:	V18023
MOQ:	450PCS
Price:	USD0.51
Packaging Details:	Carton
Payment Terms:	T/T

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

ROHS REACH

Model:

V18023

Brand:

Material:

Nickel‑Zinc Soft Ferrite (VN09)

Compliance:

RoHS, REACH

Test Frequency Range:

1‑500 MHz

Product Type:

Split Clamp‑style EMI Ferrite Core

Highlight:

6.8mm Clip-on Ferrite Core

Nickel-Zinc Soft Ferrite EMC Ferrite Core

1-500 MHz Split Clamp-style Ferrite Core

Product Description

Shenzhen VIIP V18023 EMC Ferrite Core 6.8mm VN09 RoHS REACH Anti-Interference Magnetic Core for Cable Filter

Product Overview

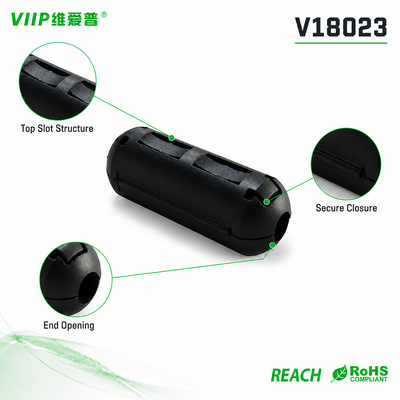

VIIP V18023 split clamp-style ferrite core is engineered for on-site EMC troubleshooting and high-frequency noise suppression for pre-installed medium-diameter cables. Unlike solid toroidal cores requiring cable threading, this split ferrite design clamps directly onto finished wiring without cable disassembly or re-termination.

Delivering stable broadband impedance performance across 1-500 MHz, this core provides minimum impedance of 135 Ω at 25 MHz and 235 Ω at 100 MHz. It serves as an effective corrective component for projects suffering unexpected high-frequency conducted and radiated interference, fully complying with RoHS and REACH environmental requirements.

Key Features

Help finished equipment pass third‑party EMC compliance certification testing.

Compact outer dimension, saves installation space inside equipment cabinets.

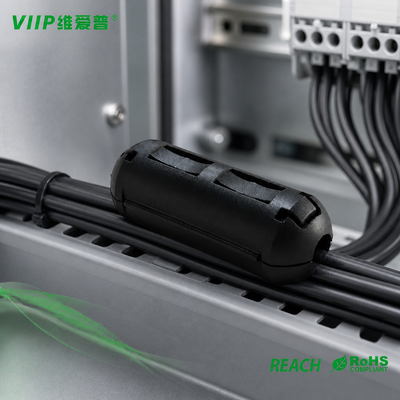

No welding or special tools required for field retrofitting of existing finished cables.

Original manufacturer supply from Shenzhen VIIP Electronics, stable delivery capacity for bulk orders.

Specifications

Item	Parameter
Model	V18023
Material	Nickel-Zinc Soft Ferrite, Split-clamp type
Min. Impedance	135 Ω @ 25 MHz; 235 Ω @ 100 MHz
Test Equipment	E4991A + 16194A
Test Frequency Range	1-500 MHz
Compliance	RoHS, REACH

Note: Complete dimensional tolerances refer to original approval sheet Rev.4.0.

Applications

Interference attenuation for peripheral control cables of non‑road vehicle electronic control units
EMC noise mitigation for sensor transmission cables of railway auxiliary on‑board equipment
Interference attenuation for high‑speed data cables of industrial video surveillance assemblies
EMC noise mitigation for power‑signal composite cables of outdoor security alarm devices

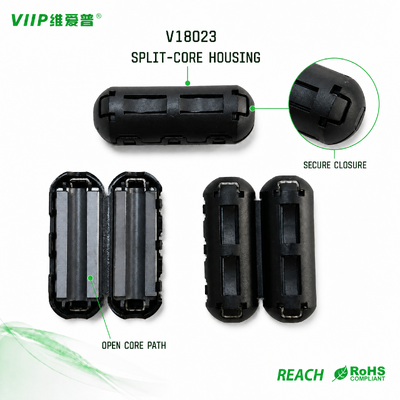

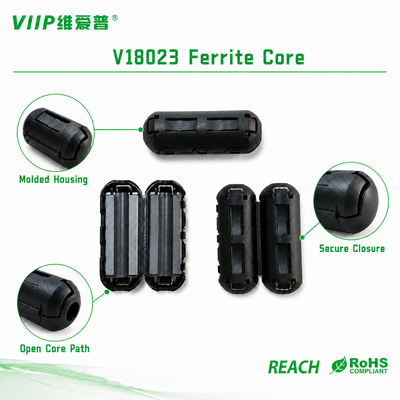

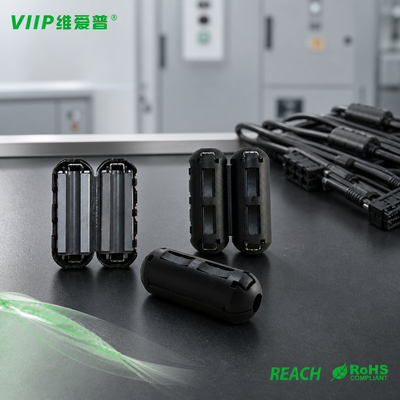

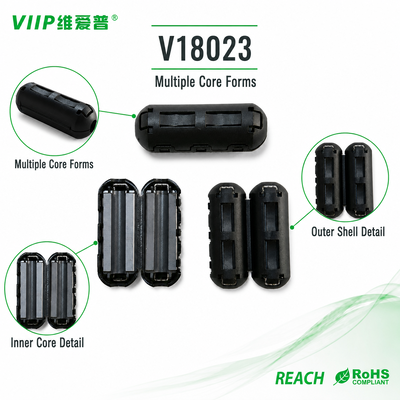

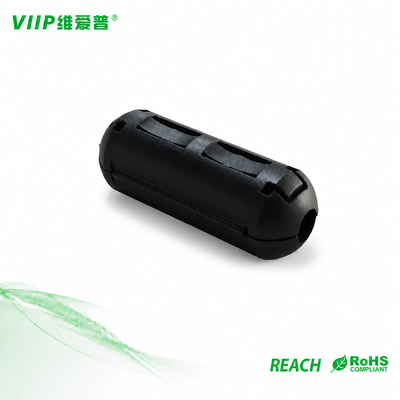

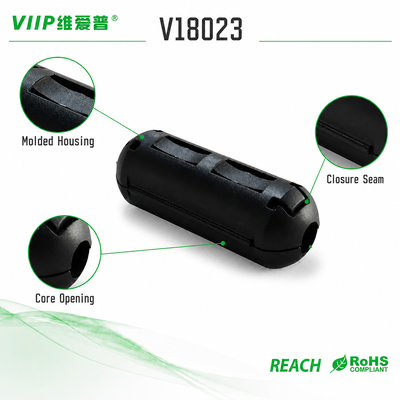

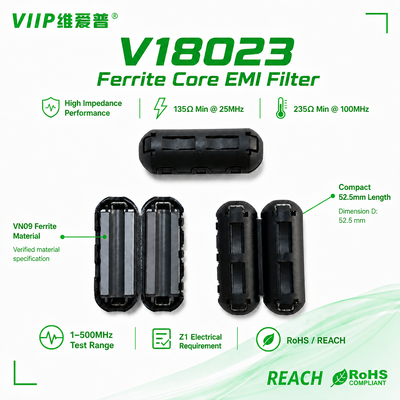

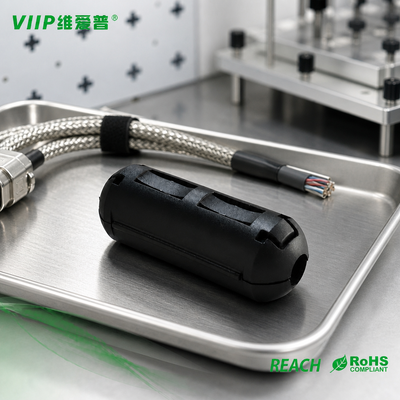

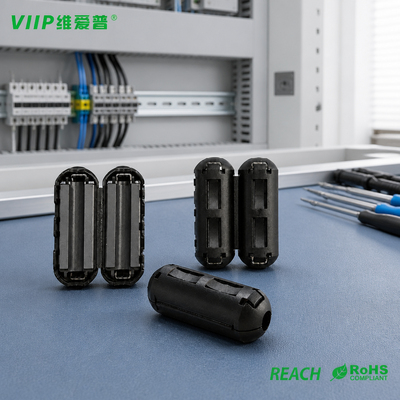

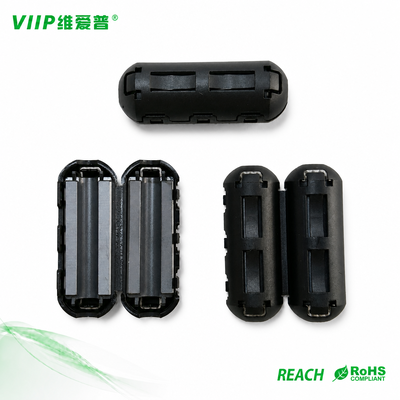

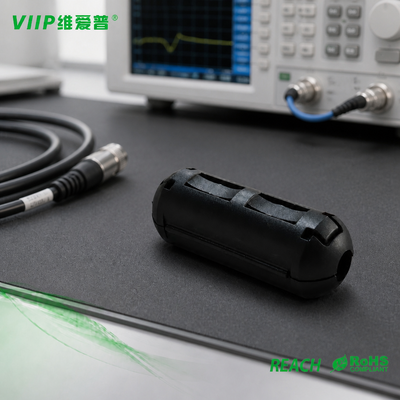

Product Images

Frequently Asked Questions

Can I get free samples for ferrite rings and clamps?

Yes, we can provide free samples for our ferrite rings and clamps.

What is your regular order requirement for ferrite rings & clamps?

Normally orders shall follow our minimum package quantity. Exceptions are acceptable for your first trial order.

Does the free-sample policy mean I can place small-quantity orders below MOQ for all orders?

Free samples are for performance verification only. Except for your first order, formal repeat orders need to follow our minimum package quantity requirement.

What certificates do your ferrite cores and clamp-on ferrites have? Can you provide approval sheets?

Our ferrite & clamp-on ferrite comply with RoHS and REACH. We can provide PDF approval sheets (specification document) for your project review.

What is the typical production lead-time for ferrite and clamp-on ferrite mass orders?

Production lead-time is typically 2-5 weeks, depending on order quantity and stock availability. The exact lead-time will be confirmed prior to placing a formal order.

Can you customize impedance/size for ferrite cores and clamp-on ferrites?

Custom service is available upon your technical requirement, MOQ for customized items will apply.

Are clamp-on ferrite rings reusable after installation?

Yes, the snap-on design allows for easy removal and reinstallation, making them reusable.
