Clip On Ferrite Core

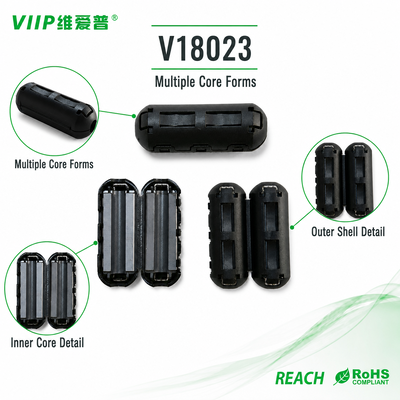

VIIP V18023 Clip-on Ferrite Core 6.8mm VN09 EMI Suppression Anti-Interference Magnetic Core for Cable EMC Noise Filter

All Category

Flat Ferrite Core

Miss. Vicky Lee

vip6@szviip.com

19925448748

19925448748

Contact Now

VIIP V18023 Clip-on Ferrite Core 6.8mm VN09 EMI Suppression Anti-Interference Magnetic Core for Cable EMC Noise Filter

Brand Name:	Weiaipu
Model Number:	V18023
MOQ:	450PCS
Price:	USD0.51
Packaging Details:	Carton
Payment Terms:	T/T

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

ROHS REACH

Model:

V18023

Brand:

Material:

Nickel‑Zinc Soft Ferrite (VN09)

Compliance:

RoHS, REACH

Test Frequency Range:

1‑500 MHz

Product Type:

Split Clamp‑style EMI Ferrite Core

Highlight:

Clip-on ferrite core 6.8mm VN09

EMI suppression magnetic core for cable

Ferrite core EMC noise filter

Product Description

Shenzhen VIIP V18023 EMC Ferrite Core 6.8mm VN09 RoHS REACH Anti-Interference Magnetic Core for Cable Filter

Product Overview

VIIP V18023 split clamp-style ferrite core is engineered for on-site EMC troubleshooting and high-frequency noise suppression for pre-installed medium-diameter cables. Unlike solid toroidal cores requiring cable threading, this split ferrite design clamps directly onto finished wiring without cable disassembly or re-termination.

Delivering stable broadband impedance performance across 1-500 MHz, this core provides minimum impedance of 135 Ω at 25 MHz and 235 Ω at 100 MHz. It serves as an effective corrective component for projects suffering unexpected high-frequency conducted and radiated interference, fully complying with RoHS and REACH environmental requirements.

Key Features

Snap‑on clip‑on structure for fast on‑site installation without cable disassembly.
Adopts premium VN09 ferrite material with initial permeability up to 850.
Wide effective working frequency range covering 1 MHz‑500 MHz for broadband EMI attenuation.
6.8 mm inner aperture, perfectly fits cables with outer diameter up to 6.8 mm.

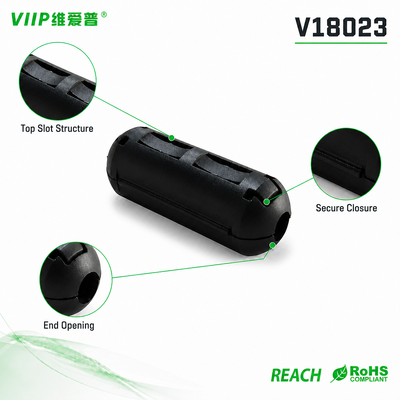

Optimized clip locking‑structure, effectively prevents pop‑open under vibration and mechanical shock.

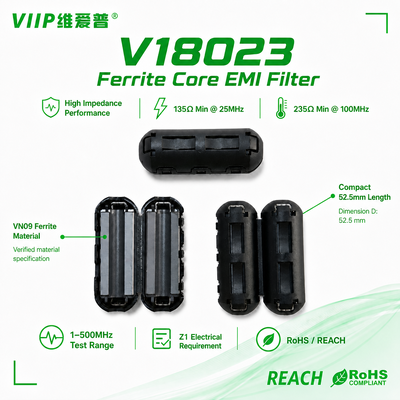

Specifications

Item	Parameter
Model	V18023
Material	Nickel-Zinc Soft Ferrite, Split-clamp type
Min. Impedance	135 Ω @ 25 MHz; 235 Ω @ 100 MHz
Test Equipment	E4991A + 16194A
Test Frequency Range	1-500 MHz
Compliance	RoHS, REACH

Note: Complete dimensional tolerances refer to original approval sheet Rev.4.0.

Applications

Interference attenuation for signal harnesses of photovoltaic combiner box peripheral assemblies
EMC noise mitigation for communication and power cables of outdoor IoT monitoring terminals
High‑frequency noise suppression for interconnection cables of small‑scale energy‑storage auxiliary units

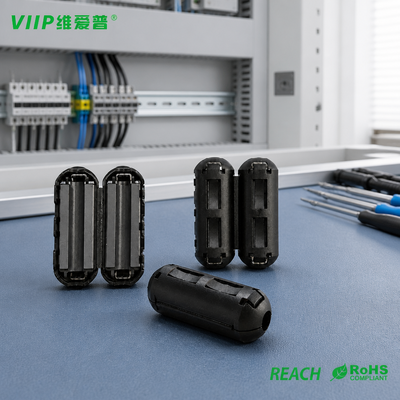

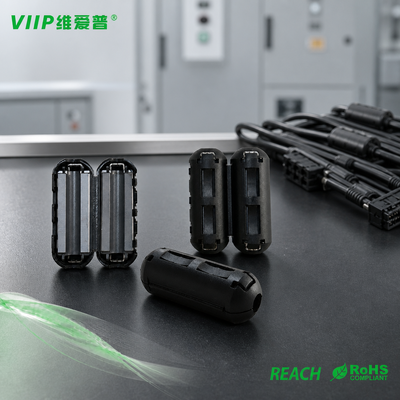

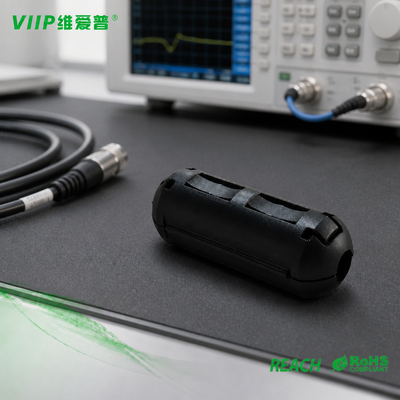

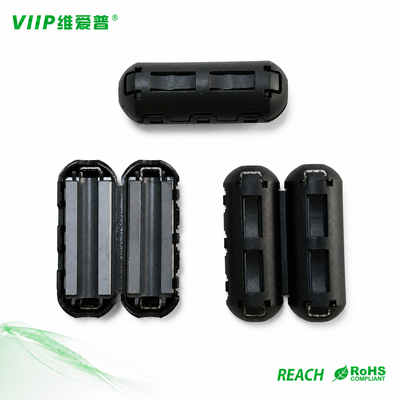

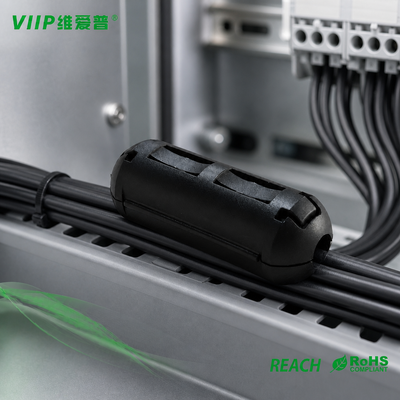

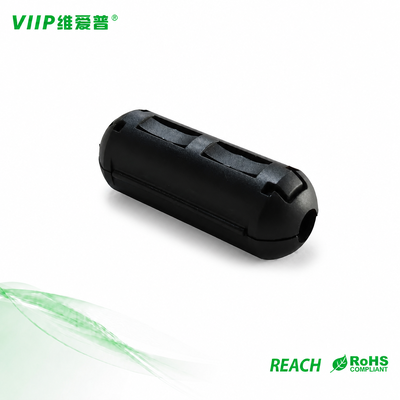

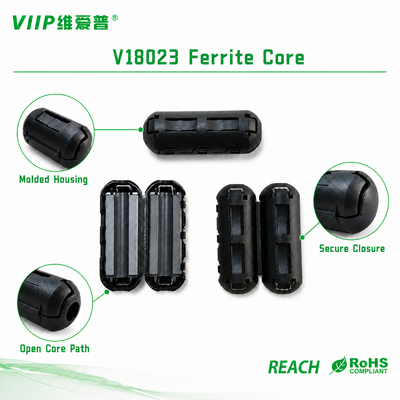

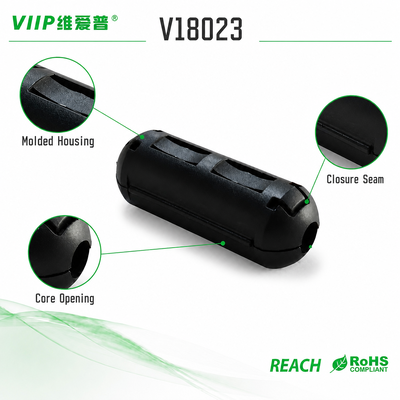

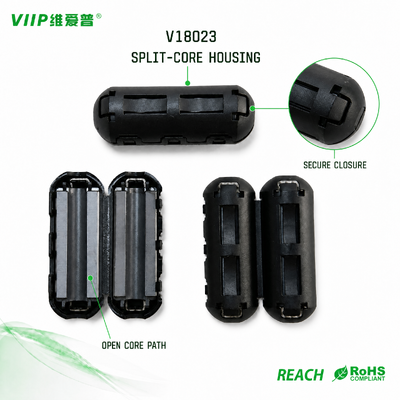

Product Images

Frequently Asked Questions

Can I get free samples for ferrite rings and clamps?

Yes, we can provide free samples for our ferrite rings and clamps.

What is your regular order requirement for ferrite rings & clamps?

Normally orders shall follow our minimum package quantity. Exceptions are acceptable for your first trial order.

Does the free-sample policy mean I can place small-quantity orders below MOQ for all orders?

Free samples are for performance verification only. Except for your first order, formal repeat orders need to follow our minimum package quantity requirement.

What certificates do your ferrite cores and clamp-on ferrites have? Can you provide approval sheets?

Our ferrite & clamp-on ferrite comply with RoHS and REACH. We can provide PDF approval sheets (specification document) for your project review.

What is the typical production lead-time for ferrite and clamp-on ferrite mass orders?

Production lead-time is typically 2-5 weeks, depending on order quantity and stock availability. The exact lead-time will be confirmed prior to placing a formal order.

Can you customize impedance/size for ferrite cores and clamp-on ferrites?

Custom service is available upon your technical requirement, MOQ for customized items will apply.

Are clamp-on ferrite rings reusable after installation?

Yes, the snap-on design allows for easy removal and reinstallation, making them reusable.
