Shenzhen VIIP V18023 EMC Ferrite Core 6.8mm VN09 RoHS REACH Anti-Interference Magnetic Core for Cable Filter

Brand Name: Weiaipu
Model Number: V18023
MOQ: 450PCS
Price: USD0.51
Packaging Details: Carton
Payment Terms: T/T
Detail Information
Product Description
Detail Information
Place of Origin:
China
Certification:
ROHS REACH
Model:
V18023
Brand:
VIIP
Material:
Nickel‑Zinc Soft Ferrite (VN09)
Compliance:
RoHS, REACH
Test Frequency Range:
1‑500 MHz
Product Type:
Split Clamp‑style EMI Ferrite Core
Highlight:

EMC Ferrite Core 6.8mm VN09

,

RoHS REACH Ferrite Core for Cable

,

Clip On Ferrite Core Anti-Interference

Product Description
Shenzhen VIIP V18023 EMC Ferrite Core 6.8mm VN09 RoHS REACH Anti-Interference Magnetic Core for Cable Filter
Product Overview

VIIP V18023 split clamp-style ferrite core is engineered for on-site EMC troubleshooting and high-frequency noise suppression for pre-installed medium-diameter cables. Unlike solid toroidal cores requiring cable threading, this split ferrite design clamps directly onto finished wiring without cable disassembly or re-termination.

Delivering stable broadband impedance performance across 1-500 MHz, this core provides minimum impedance of 135 Ω at 25 MHz and 235 Ω at 100 MHz. It serves as an effective corrective component for projects suffering unexpected high-frequency conducted and radiated interference, fully complying with RoHS and REACH environmental requirements.

Key Features
  • Precision-moulded clip interface enables secure locking, preventing accidental pop-open under cable vibration, shock and long-term service conditions
  • Optimised for cables with maximum inner pass-through diameter of 6.8 mm, fits bundled wiring while maintaining tight core closure for maximum noise damping efficiency
  • Full traceability of raw material and finished-lot testing supports EMC certification documentation, simplifying customers' product compliance submission workflows
  • Curie temperature exceeds 130 °C, ensuring stable magnetic performance under elevated working-temperature conditions
Specifications
Item Parameter
Model V18023
Material Nickel-Zinc Soft Ferrite, Split-clamp type
Min. Impedance 135 Ω @ 25 MHz; 235 Ω @ 100 MHz
Test Equipment E4991A + 16194A
Test Frequency Range 1-500 MHz
Compliance RoHS, REACH

Note: Complete dimensional tolerances refer to original approval sheet Rev.4.0.

Applications
  • Interference attenuation for internal connection cables of industrial control cabinet assemblies
  • EMC noise mitigation for signal and power cables of large-scale automated manufacturing equipment
Product Images

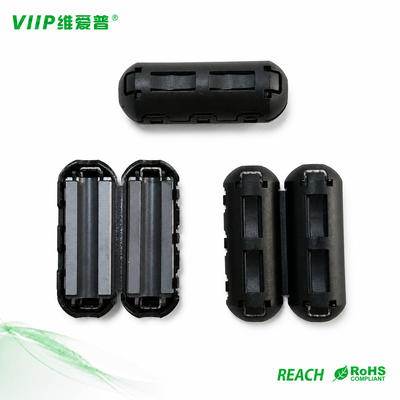

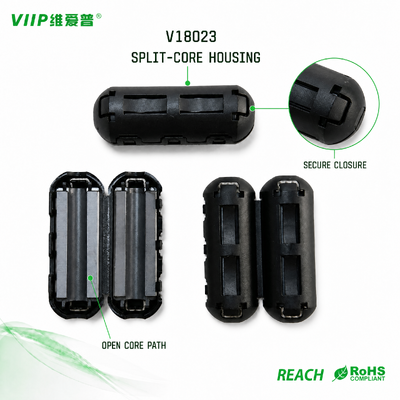

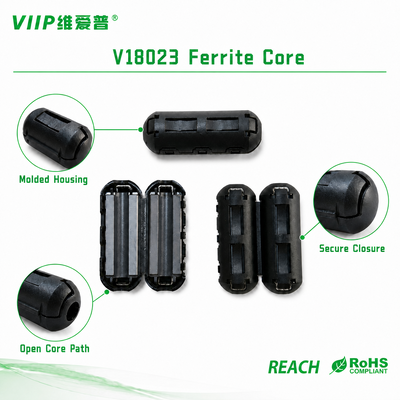

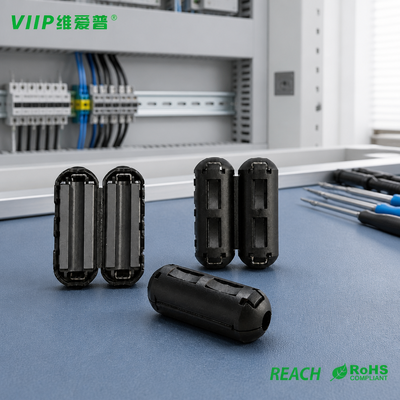

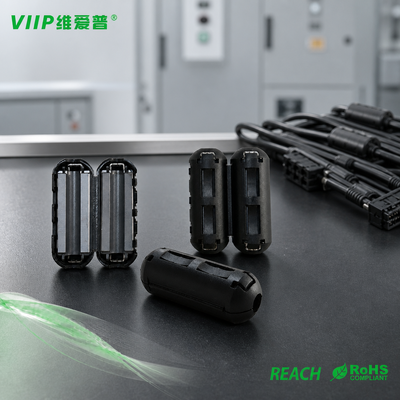

V18023 Ferrite Core front view showing clamp design and dimensions

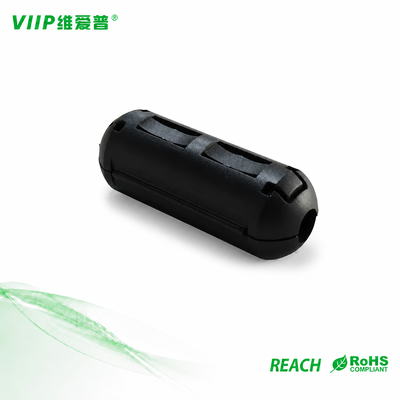

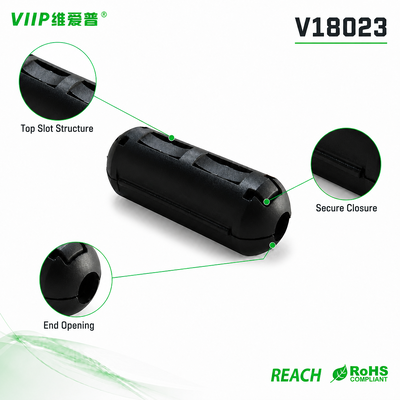

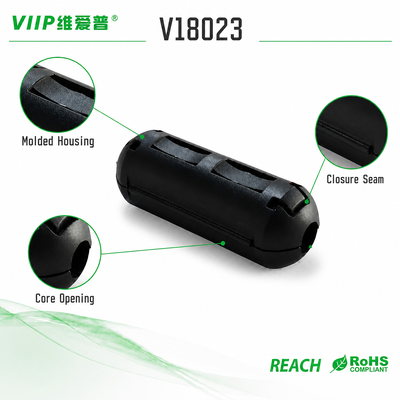

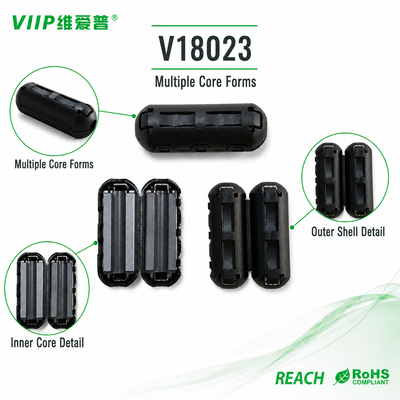

V18023 Ferrite Core side view displaying profile and mounting features

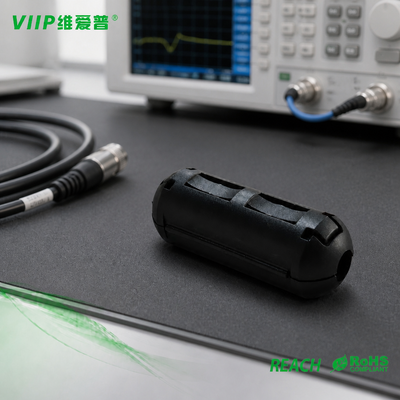

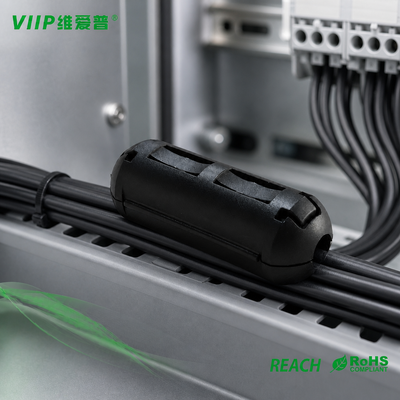

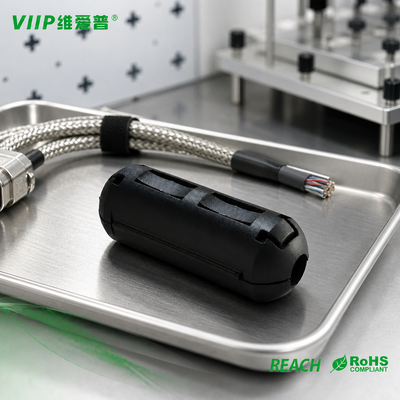

V18023 Ferrite Core installation demonstration on cable

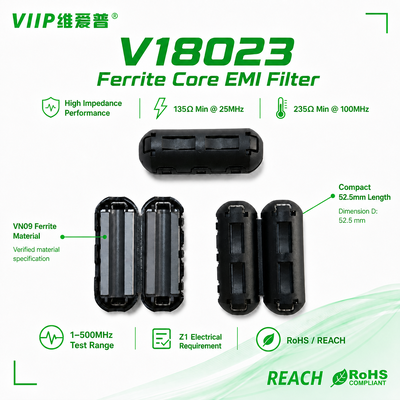

V18023 Ferrite Core technical specifications diagram with measurements
Frequently Asked Questions
Can I get free samples for ferrite rings and clamps?
Yes, we can provide free samples for our ferrite rings and clamps.
What is your regular order requirement for ferrite rings & clamps?
Normally orders shall follow our minimum package quantity. Exceptions are acceptable for your first trial order.
Does the free-sample policy mean I can place small-quantity orders below MOQ for all orders?
Free samples are for performance verification only. Except for your first order, formal repeat orders need to follow our minimum package quantity requirement.
What certificates do your ferrite cores and clamp-on ferrites have? Can you provide approval sheets?
Our ferrite & clamp-on ferrite comply with RoHS and REACH. We can provide PDF approval sheets (specification document) for your project review.
What is the typical production lead-time for ferrite and clamp-on ferrite mass orders?
Production lead-time is typically 2-5 weeks, depending on order quantity and stock availability. The exact lead-time will be confirmed prior to placing a formal order.
Can you customize impedance/size for ferrite cores and clamp-on ferrites?
Custom service is available upon your technical requirement, MOQ for customized items will apply.
Are clamp-on ferrite rings reusable after installation?
Yes, the snap-on design allows for easy removal and reinstallation, making them reusable.
