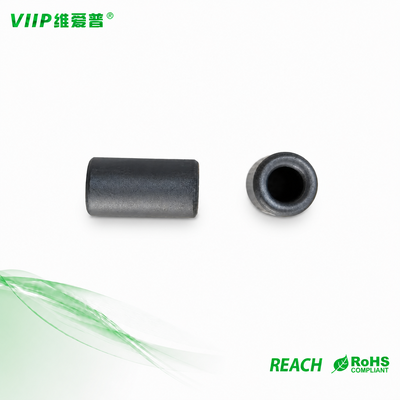

V180136H EMI Suppression Toroidal Ferrite Core, High Curie Temp Magnetic Core for Power Supply & Data Comm EMC Noise Reduction

Brand Name:	Weiaipu
Model Number:	V180136H
MOQ:	2310PCS
Price:	0.03USD
Packaging Details:	Carton
Payment Terms:	T/T

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

ROHS REACH

Model Number:

V180136H

Material:

Ni‑Zn Ferrite

Shape:

Toroidal / Gap‑free Ring Core

Test Frequency Range:

1MHz‑500MHz

Certification:

RoHS, REACH

Application:

EMI Suppression,PCBA,Power Cable,Harness,EMC Debugging

Highlight:

EMI suppression toroidal ferrite core

high Curie temp magnetic core

power supply EMC noise reduction

Product Description

V180136H EMI Suppression Toroidal Ferrite Core

Product Overview

The V180136H is a gap-free toroidal Mn-Zn ferrite EMI suppression core manufactured by Shenzhen VIIP Electronics Co., Ltd, optimized for high-frequency EMC noise suppression. This high-performance soft-magnetic component effectively suppresses high-frequency electromagnetic interference for wiring harnesses and PCBA circuits.

Impedance performance is supported by mass-production sample test data, covering noise-attenuation frequency band from 1 MHz to 500 MHz. Its closed toroidal magnetic-path structure provides stable broadband EMI filtering performance for cable harness and board-level EMC optimization.

Perfect match for switching power supply, consumer electronics and data-communication equipment projects
Toroidal structure without air-gap, delivers better magnetic shielding effect compared with split-type cores
Controlled raw-material sourcing process, reduces performance fluctuation between different production lots
Can be used together with EMI filter components to build complete hardware noise-reduction solutions

Electrical Characteristics

Item	Specification
Test instrument	E4991A + 16194A
Test frequency range	1 MHz ~ 500 MHz
Test winding fixture	Ø0.5 _0.5TS_ 100L(mm)
Min. Impedance @25 MHz	≥ 50 Ω
Min. Impedance @100 MHz	≥ 100 Ω

Impedance-vs-frequency test curve is attached in the official approval sheet for reference only.

Material & Physical Properties

Parameter	Value
Material Grade	Mn-Zn Ferrite
Relative Temperature Coefficient	*10⁻⁶
Saturation magnetic flux density Bs	150 mT @35 A/m
Density	Refer to approval sheet
Dimension	20 ±0.5 mm；10.5 ±0.4 mm

Full dimension drawings and detailed material parameters please refer to original APPROVAL SHEETS document.

Applications

Switching power supply internal common-mode inductor core assembly
Instrumentation sensor signal line anti-interference processing
Elevator control system signal cable noise suppression
Photovoltaic inverter auxiliary wiring EMC improvement
Audio-video equipment harness high-frequency noise reduction
Industrial IoT terminal equipment anti-EMI processing

Product Images

Frequently Asked Questions

Can I get free samples for H-series ferrite cores?

Yes, we can provide free H-series ferrite core samples for your performance testing and product evaluation.

What is your regular order requirement for ferrite cores?

Normally mass orders need to comply with our minimum package quantity requirement.

Does the free-sample policy allow small-quantity orders below MOQ for regular purchases?

Free samples are only intended for performance verification. While your first trial order can be negotiated, formal repeat orders must follow our minimum package quantity rule.

What certificates do H-series ferrite cores have?

Our H-series ferrite cores meet RoHS and REACH regulatory requirements.

What is the typical production lead-time for mass-production ferrite core orders?

Typical production lead-time ranges from 2 to 5 weeks, subject to order volume and stock status. Exact lead-time will be confirmed prior to your formal order placement.

Can you customize impedance, physical dimensions or material for H-type ferrite cores?

Customization service is available based on your detailed technical specifications. A dedicated MOQ will apply for all customized ferrite core projects.

Could you provide EMC technical support when I apply your ferrite cores in my projects?

Sure. Our in-house engineering team provides basic EMC technical consultation to assist you with noise-suppression design and circuit debugging work.

What applications are H-series ferrite cores suitable for?

H-series Ni-Zn ferrite cores are widely used for EMI / EMC noise suppression on PCBA traces, wiring harnesses, power cables, consumer electronics, power supplies and communication-related equipment.
