Product Introduction

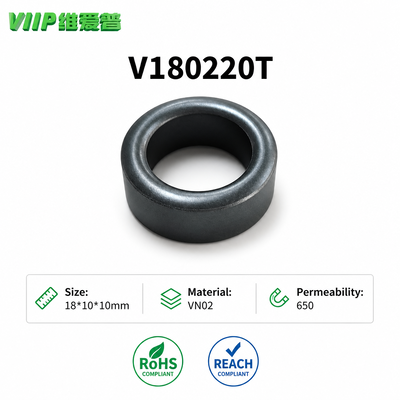

Manufactured from VN02 soft manganese‑zinc ferrite, the V180220T toroidal magnetic ring comes with an initial permeability of 650 at ±20% tolerance, alongside a relative loss factor of 20*10⁻⁶ measured at 0.1MHz. Boasting a Curie temperature higher than 140℃ and excellent electrical resistivity, this magnetic core maintains steady magnetic properties even when ambient temperature fluctuates. Thanks to its compact toroidal form, it provides dependable EMI suppression and acts as an essential magnetic part for various EMC filter solutions. Thorough raw‑material checks and mature manufacturing workflows ensure uniform batch quality for large‑volume production orders.

Application Range

This ferrite magnetic ring finds broad applications across consumer electronics, home appliances, industrial controllers, power supplies, communication hardware and wiring harness assemblies. It is well‑suited for power cable sets, signal cable processing, power adapters, inverters and diverse electronic modules requiring electromagnetic interference mitigation. It supports deployment for both mass‑market consumer goods and heavy‑duty industrial hardware systems.

Purpose

This magnetic core is mainly designed to curb high‑frequency EMI and RFI noise. It weakens undesired interference signals carried by power and signal cables, stops outside electromagnetic noise from disrupting regular circuit operation, and prevents internal circuit noise from radiating into the surrounding environment. It assists end products in passing EMC certification tests, minimizes signal distortion and boosts the overall anti‑interference capability of electronic devices.

FAQ for Ferrite Toroidal Core

Q1: Does the number of cable turns around ferrite core affect filtering performance? A1: Yes, the number of winding turns has a direct impact on noise suppression. More turns generally deliver better low‑frequency interference attenuation. However, excessive turns may raise parasitic capacitance and weaken high‑frequency filtering effects. Customers should balance turn counts according to their actual interference frequency bands.

Q2: What causes cracks or chipping on ferrite magnetic rings? A2: Ferrite material is brittle by nature. Mechanical shock, violent collision, improper pressing during assembly and rapid extreme temperature changes can result in cracks or chip damage. Please handle ferrite cores gently during installation and avoid strong physical impact.

Q3: Can one ferrite toroidal core solve all electromagnetic interference issues? A3: No. A single magnetic ring cannot eliminate all noise. The filtering effect depends on material grade, core size, wiring method and circuit design. In complex EMC cases, you may need to combine multiple cores or additional filter components to achieve satisfactory noise reduction results.

Q4: Is surface coating necessary for ferrite toroidal cores? A4: Black epoxy coating offers scratch resistance and insulation protection for ferrite cores. Standard models come with coated surfaces. For special assembly conditions such as embedded installation, uncoated bare cores are also available upon request. Coating will not change the core’s intrinsic magnetic parameters.

Q5: What factors will shorten the service life of ferrite magnetic rings? A5: Sustained operation above Curie temperature, repeated mechanical impact, long‑term exposure to humid or corrosive environments will shorten service life. When used within the rated temperature range and protected from physical damage, ferrite cores can maintain stable performance for a long working period.
