Product Description

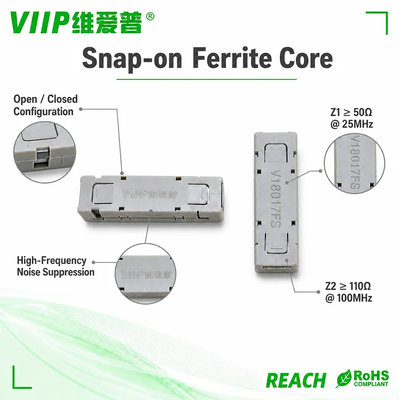

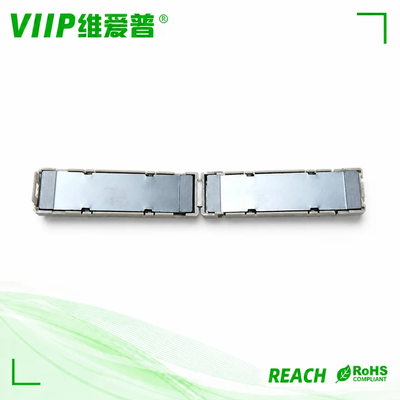

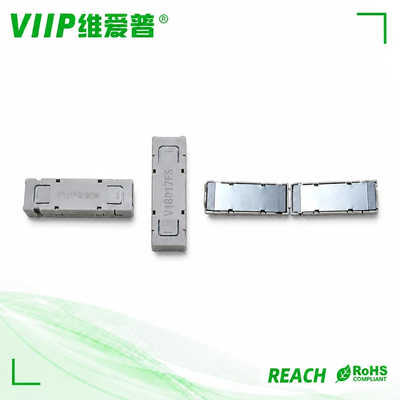

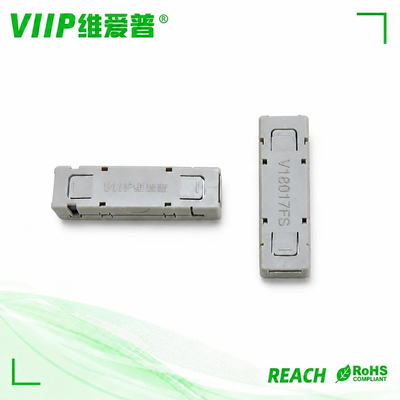

V18017FS ferrite magnetic ring adopts high-grade VN19 Mn-Zn ferrite material. It comes with 1600 initial permeability, ultra-low loss factor and stable temperature characteristics. This material owns high saturation flux density, resistivity higher than 10⁵ Ω.m and Curie temperature exceeding 150℃, ensuring excellent overall magnetic stability.

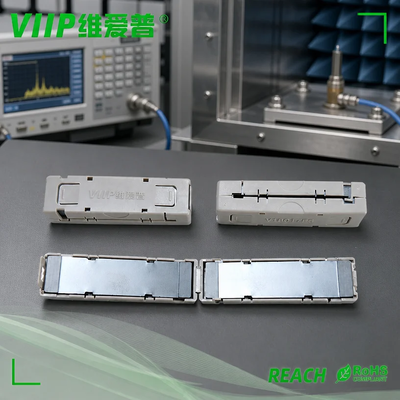

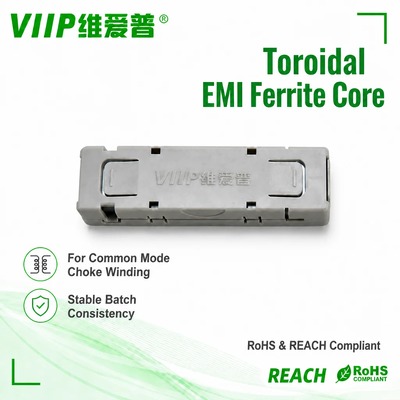

This toroidal core provides excellent impedance performance and strong EMI suppression ability, which can efficiently filter high-frequency noise and common-mode interference. Supported by standardized production and strict quality control, every batch maintains stable physical and magnetic parameters. Customized sizes and specifications are available to fit different electronic project designs and application demands.

Applications & Uses

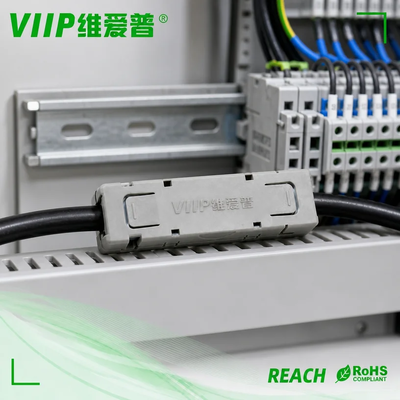

Common mode chokes for various power supply units EMI and EMC noise filtering for household electronic appliances Industrial control devices and switching power supply equipment Signal line anti-interference processing and noise reduction Filtering application for adapters, chargers and LED drivers High-frequency noise elimination for all types of electronic circuits

Five New General FAQ for Ferrite Cores

Q: What causes heat generation of ferrite cores during operation?

A: Core loss and copper loss from winding are the main heat sources. High frequency and excessive current will increase loss and lead to temperature rise.

Q: Can ferrite magnetic rings work stably in humid environments?

A: Yes. Finished cores are insulated and moisture-proof treated. They feature good environmental adaptability and will not fail easily under normal humid conditions.

Q: What is the service life of Mn-Zn ferrite cores?

A: Ferrite cores have extremely low aging rate. Under rated temperature and load conditions, they can maintain stable performance for long-term service with almost no attenuation.

Q: Does more winding turns mean better filtering effect?

A: Moderate more turns improve impedance and noise suppression. However, excessive turns will increase parasitic capacitance and affect high-frequency filtering performance.

Q: Can ferrite cores be used for both AC and DC circuits?

A: Yes. Ferrite magnetic rings are widely used in AC-DC hybrid circuits. They effectively suppress high-frequency interference while ensuring normal DC and low-frequency current transmission.
