Product Description

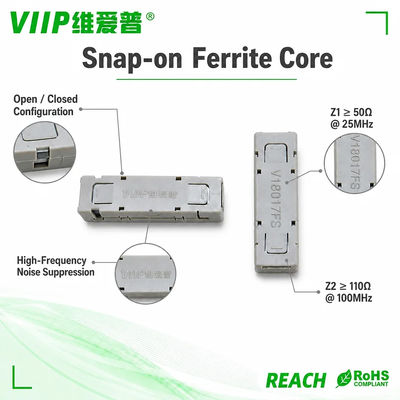

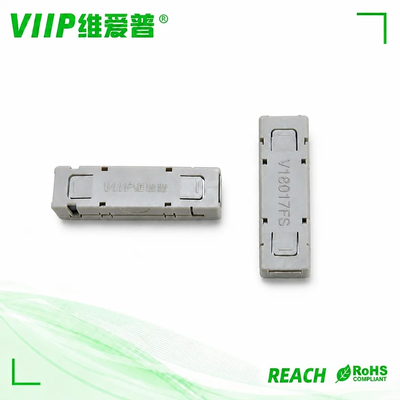

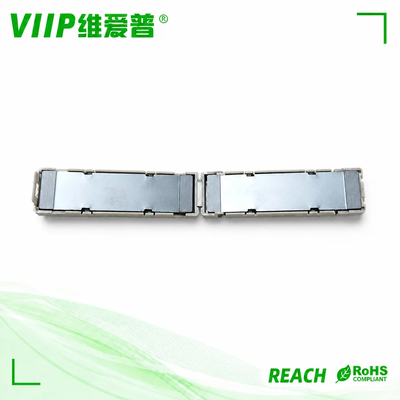

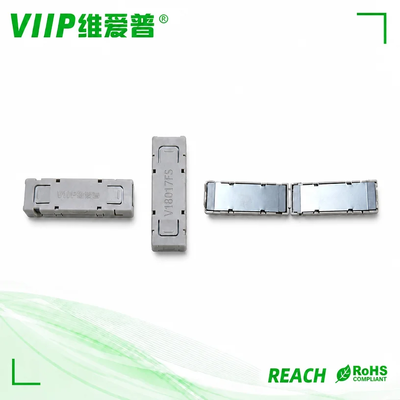

V18017FS ferrite magnetic ring is manufactured from high‑quality VN19 Mn‑Zn ferrite material. It owns initial permeability of 1600, low loss factor and stable temperature coefficient. The material features high saturation magnetic flux density, high resistivity over 10⁵ Ω.m and Curie temperature higher than 150℃.

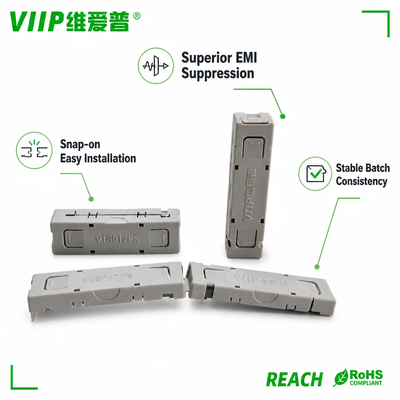

This magnetic core provides outstanding EMI noise suppression and great impedance characteristics. Strict production control ensures consistent physical and magnetic parameters for batch orders. It can effectively restrain common‑mode interference and high‑frequency noise. Custom options are acceptable to satisfy different project requirements.

Applications & Uses

• Common mode chokes for power supply units
• EMC EMI noise filtering for household electronic devices

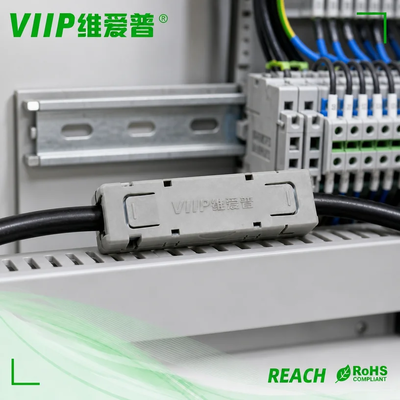

• Industrial control equipment and switching power supplies
• Signal line anti‑interference processing
• Adapter, charger and LED driver filtering
• Various electronic circuits for high‑frequency noise elimination

Five General FAQ for Ferrite Cores

Q: What factor mainly affects the noise suppression performance of ferrite core?

A: Material permeability, working frequency range, core dimension and winding turns will directly influence its noise suppression effect.

Q: What is the difference between Mn‑Zn ferrite and Ni‑Zn ferrite magnetic ring?

A: Mn‑Zn ferrite applies for low‑to‑medium frequency with high permeability. Ni‑Zn ferrite fits for high‑frequency scenario with high resistance.

Q: Will high working temperature damage ferrite core?

A: Working temperature shall stay below Curie temperature. Once exceeding Curie point, the ferrite will lose its magnetic property temporarily.

Q: Can I get custom ferrite core samples before bulk order?

A: Yes, samples can be provided for performance testing. Custom size and material are available upon request.

Q: Why does the same model ferrite core have different impedance data?

A: Impedance changes with testing frequency. Test under different frequency points will get different impedance results.
