Product Description:

The EMI Ferrite Core, crafted from high-quality VN09 material, is an essential component designed to effectively suppress electromagnetic interference in a wide range of electronic applications. Known for its superior magnetic properties, this ferrite core is specifically engineered to enhance the performance of EMI noise filters, making it an ideal choice for reducing unwanted noise and improving signal integrity in various electronic devices.

One of the standout features of this electromagnetic interference ferrite core is its impressive remanence value of 200. Remanence, which indicates the residual magnetism left in the core after an external magnetic field is removed, reflects the core’s ability to retain magnetic properties and contribute to stable filtering performance. Coupled with a coercivity of 20, this ferrite core exhibits excellent resistance to demagnetization, ensuring reliable operation even under fluctuating magnetic environments.

The ferrite toroidal EMI core is meticulously designed to optimize magnetic flux distribution, minimizing core losses and enhancing noise suppression capabilities. With a relative loss factor of 16 at 0.01 MHz, this core demonstrates low energy dissipation during operation, which is crucial for maintaining efficiency in high-frequency applications. This characteristic ensures that the core not only filters out electromagnetic noise effectively but also operates with minimal heat generation and power loss.

Density is another critical parameter that influences the performance of ferrite cores, and this product boasts a density of 4.6 g/cm³. Such density contributes to the mechanical strength and durability of the core, making it suitable for use in demanding environments where stability and longevity are required. The robust construction ensures that the EMI noise filter ferrite core maintains its shape and magnetic properties over extended periods, providing consistent performance throughout its service life.

Designed to be versatile, the EMI Ferrite Core is widely used in various applications including power supplies, communication devices, automotive electronics, and consumer electronics. Its ability to suppress high-frequency noise makes it indispensable for enhancing electromagnetic compatibility (EMC) in electronic circuits. By incorporating this ferrite core into your designs, you can significantly reduce electromagnetic interference that could otherwise degrade device performance or cause malfunction.

The ferrite toroidal EMI core’s toroidal shape is particularly advantageous as it provides a closed magnetic path, which minimizes electromagnetic radiation and crosstalk between adjacent components. This shape also facilitates easy integration into existing circuit designs, allowing engineers to implement effective EMI suppression solutions without extensive modifications. Additionally, the toroidal design helps in achieving compact and lightweight EMI noise filter assemblies, which is critical for modern electronic devices where space and weight are at a premium.

Manufactured with strict quality control standards, this electromagnetic interference ferrite core ensures consistent electrical and magnetic properties, meeting industry requirements for reliability and performance. Whether you are designing new electronic products or upgrading existing systems, the EMI Ferrite Core made from VN09 material offers a dependable solution for managing electromagnetic interference challenges.

In summary, the EMI Ferrite Core with VN09 material presents an excellent combination of high remanence, optimal coercivity, low relative loss factor, and substantial density, making it a superior choice for EMI noise filtering applications. Its ferrite toroidal design further enhances its effectiveness by providing efficient magnetic flux management and ease of integration. If you seek a robust and efficient ferrite core to combat electromagnetic interference, this EMI noise filter ferrite core stands out as a top-tier option to improve the electromagnetic compatibility and overall performance of your electronic systems.

Features:

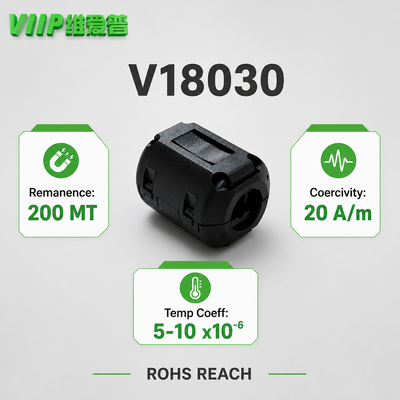

• Product Name: EMI Ferrite Core
• Coercivity: 20
• Relative Temperature Coefficient: 5-10
• Density: 4.6
• Material: VN09
• Remanence: 200
• Effective Ferrite clip-on EMI core for easy installation
• High-performance EMI noise filter ferrite core
• Reliable EMI suppression ferrite core for reducing electromagnetic interference

Technical Parameters:

Applications:

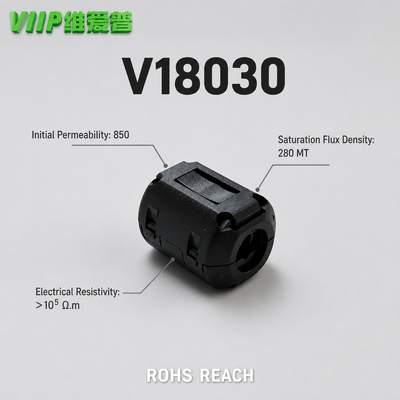

The VIIP WeiAiPu EMI choke ferrite core, model number V18030, is a high-quality component originating from China, designed to effectively suppress electromagnetic interference in various electronic devices. Certified with Rohs Reach, this ferrite split bead EMI core ensures compliance with international environmental standards, making it an excellent choice for manufacturers seeking reliable and eco-friendly EMI suppression solutions.

This ferrite split bead EMI core is widely applied in numerous occasions and scenarios where electromagnetic interference can disrupt signal integrity and device performance. It is commonly used in power supply lines, data cables, and communication equipment to reduce noise and enhance signal clarity. With a relative loss factor of 16 at 0.01MHz and a coercivity of 20, the V18030 model delivers efficient suppression of high-frequency interference, ensuring stable operation in sensitive electronic circuits.

In industrial environments, the EMI choke ferrite core is essential for protecting machinery and control systems from electromagnetic disturbances caused by heavy equipment and motors. It is also suitable for consumer electronics, including computers, televisions, and audio devices, where maintaining signal quality and preventing data loss is critical. The ferrite split bead EMI core’s remanence of 200 and relative temperature coefficient between 5-10 allow it to perform consistently across varying temperature conditions, making it ideal for use in automotive electronics and outdoor communication devices.

For manufacturers and distributors, VIIP WeiAiPu offers a minimum order quantity of 100pcs with packaging details arranged in cartons for safe transportation. With a robust supply ability of 2000PCS per day and a delivery time of 5-7 days, customers can rely on prompt fulfillment of orders. Payment terms are flexible with T/T options, facilitating smooth commercial transactions.

Made from premium VN09 material, the V18030 EMI choke ferrite core combines durability with excellent magnetic properties, enhancing its effectiveness in EMI noise suppression. Whether integrated into new product designs or used as a replacement component, this ferrite split bead EMI core provides a cost-effective and efficient solution for maintaining electromagnetic compatibility in a wide range of electronics applications.

Customization:

VIIP WeiAiPu offers customized product services for the EMI Ferrite Core model V18030, designed to meet diverse application needs. Our Ferrite sleeve EMI core, EMI suppression ferrite core, and Ferrite ring EMI core products are manufactured with high-quality VN09 material, ensuring excellent performance with a relative temperature coefficient of 5-10 and a relative loss factor of 16 (0.01MHz). The cores exhibit strong magnetic properties, including a coercivity of 20 and remanence of 200, making them ideal for effective EMI suppression.

Produced in CHINA and certified with Rohs Reach standards, these EMI ferrite cores are available with a minimum order quantity of 100pcs. We ensure reliable packaging in cartons to protect the products during transit. Our supply ability is 2000PCS per day, with a typical delivery time of 5-7 days after order confirmation.

Payment terms are flexible with T/T accepted, facilitating easy transactions. Whether you need Ferrite sleeve EMI core, EMI suppression ferrite core, or Ferrite ring EMI core, VIIP WeiAiPu is dedicated to providing customized solutions that meet your specific electromagnetic interference suppression requirements.

FAQ:

Q1: What is the brand and model number of this EMI Ferrite Core?

A1: The EMI Ferrite Core is branded VIIP WeiAiPu and the model number is V18030.

Q2: Where is the VIIP WeiAiPu V18030 EMI Ferrite Core manufactured?

A2: This product is made in CHINA.

Q3: Does the VIIP WeiAiPu V18030 EMI Ferrite Core have any certifications?

A3: Yes, it is certified with Rohs Reach.

Q4: What is the minimum order quantity for purchasing the VIIP WeiAiPu V18030 EMI Ferrite Core?

A4: The minimum order quantity is 100 pieces.

Q5: What are the packaging and delivery details for this product?

A5: The EMI Ferrite Core is packaged in cartons, with a delivery time of 5-7 days.

Q6: What payment terms are accepted for ordering the VIIP WeiAiPu V18030 EMI Ferrite Core?

A6: Payments are accepted via T/T (Telegraphic Transfer).

Q7: What is the supply ability of the VIIP WeiAiPu V18030 EMI Ferrite Core?

A7: The supply ability is 2000 pieces per day.
