China Manufacturer V18007H H-Shape Ferrite Core NiZn Ferrite Core for EMC Debugging IoT Devices and Communication Hardware

Brand Name:	Weiaipu
Model Number:	V18007H
MOQ:	3000PCS
Price:	0.02USD
Packaging Details:	Carton
Payment Terms:	T/T

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

ROHS REACH

Material Grade:

Test Frequency Range:

1 MHz ~ 500 MHz

Initial Permeability μi:

20 @0.1 MHz

Highlight:

H-Shape Ferrite Core for EMC debugging

NiZn Ferrite Core for IoT devices

Ferrite Core for communication hardware

Product Description

Ni-Zn H-Type Ferrite Core V18007H High Impedance EMC EMI Noise Suppression for PCBA Wiring Harness

Product Overview

The V18007H is a high‑performance Mn‑Zn ferrite core from Shenzhen VIIP Electronics, purpose‑built to mitigate EMI and RFI interference in electronic systems. Optimized for EMC noise attenuation, this ferrite core efficiently dampens high‑frequency conducted interference for electronic wiring and circuit assemblies while satisfying RoHS and REACH global environmental compliance standards.

Production sample validation confirms its impedance characteristics across the 1‑500 MHz working frequency spectrum. Thanks to its seamless toroidal magnetic‑path structure, it delivers dependable wide‑band noise‑suppression performance, making it ideal for EMC tuning on cable harnesses as well as circuit‑board‑level anti‑interference optimization.

Key Features

• Consistent impedance performance verified by E4991A+16194A professional test equipment across 1‑500MHz frequency band
• Excellent batch‑to‑batch magnetic property consistency for large‑volume electronic manufacturing projects
• Gap‑free toroidal magnetic‑path structure minimizes magnetic leakage and improves broadband noise attenuation effect
• Strict dimensional tolerance control ensures good interchangeability for winding and cable assembly operations

Electrical Characteristics

Item	Specification
Test instrument	E4991A
Test frequency range	1 MHz ~ 500 MHz
Test winding fixture	Ø0.5 _0.5TS_ 100L(mm)
Typical Impedance @25 MHz (average of 10 samples)	26.8 Ω (Min. 20 Ω spec)
Typical Impedance @100 MHz (average of 10 samples)	77.9 Ω (Min. 40 Ω spec)

Impedance-vs-frequency test curve is attached in the official approval sheet for reference.

Material Properties

Parameter	Value
Material Grade	VNO2
Initial permeability μi	20 @0.1 MHz
Relative Loss Factor	20*10⁻⁶ @0.1 MHz

Applications

EMI noise attenuation for compact embedded control boards and miniature drive circuit wiring
Anti‑interference optimization for industrial wireless sensor nodes and data‑acquisition harness
High‑frequency interference suppression for portable analytical instruments and field detection device cables
Conducted noise filtering for small‑sized battery‑powered devices and wearable electronic assemblies
EMC improvement for smart lighting control modules and low‑voltage internal connection wiring
Broad‑band noise mitigation for network communication terminals and compact IoT gateway internal harness

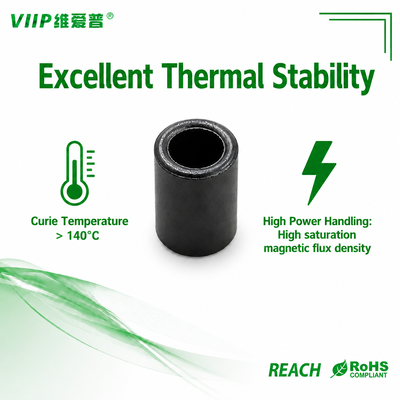

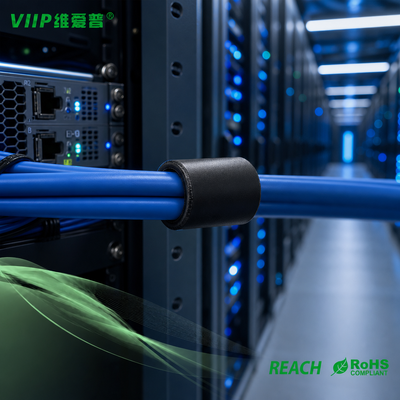

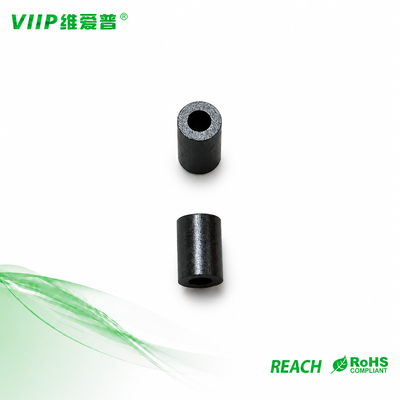

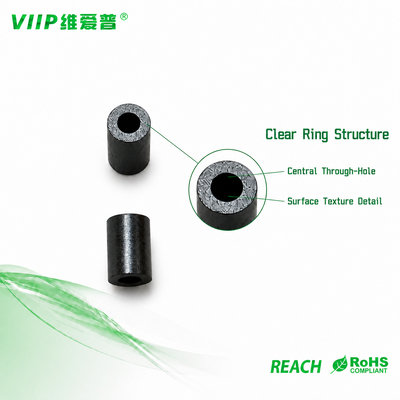

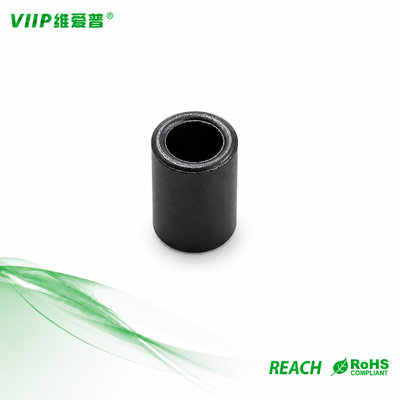

Product Images

Frequently Asked Questions

Can I get free samples for H-series ferrite cores?

Yes, we can provide free H-series ferrite core samples for your performance testing and product evaluation.

What is your regular order requirement for ferrite cores?

Normally mass orders need to comply with our minimum package quantity requirement.

Does the free-sample policy allow small-quantity orders below MOQ for regular purchases?

Free samples are only intended for performance verification. While your first trial order can be negotiated, formal repeat orders must follow our minimum package quantity rule.

What certificates do H-series ferrite cores have?

Our H-series ferrite cores meet RoHS and REACH regulatory requirements.

What is the typical production lead-time for mass-production ferrite core orders?

Typical production lead-time ranges from 2 to 5 weeks, subject to order volume and stock status. Exact lead-time will be confirmed prior to your formal order placement.

Can you customize impedance, physical dimensions or material for H-type ferrite cores?

Customization service is available based on your detailed technical specifications. A dedicated MOQ will apply for all customized ferrite core projects.

Could you provide EMC technical support when I apply your ferrite cores in my projects?

Sure. Our in-house engineering team provides basic EMC technical consultation to assist you with noise-suppression design and circuit debugging work.

What applications are H-series ferrite cores suitable for?

H-series Ni-Zn ferrite cores are widely used for EMI / EMC noise suppression on PCBA traces, wiring harnesses, power cables, consumer electronics, power supplies and communication-related equipment.
