V18007H EMI Suppression Ferrite Core High Freq Noise Filter for Consumer Electronics Signal Cables Power Adapters RoHS REACH

Brand Name:	Weiaipu
Model Number:	V18007H
MOQ:	3000PCS
Price:	0.02USD
Packaging Details:	Carton
Payment Terms:	T/T

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

ROHS REACH

Material Grade:

Test Frequency Range:

1 MHz ~ 500 MHz

Initial Permeability μi:

20 @0.1 MHz

Highlight:

EMI suppression ferrite core for cables

Ferrite core noise filter for adapters

RoHS compliant ferrite core filter

Product Description

Ni-Zn H-Type Ferrite Core V18007H High Impedance EMC EMI Noise Suppression for PCBA Wiring Harness

Product Overview

V18007H, part number 6080024033, is a high‑performance Mn‑Zn ferrite core produced by Shenzhen VIIP Electronics, dedicated to EMI and RFI noise suppression for cables and electronic wiring harnesses. This ferrite core delivers minimum impedance of 20 Ω at 25 MHz and 40 Ω at 100 MHz, offering reliable high‑frequency interference attenuation over the 1‑500 MHz test frequency band.

Tested by professional E4991A + 16194A impedance analyzer, this ferrite core features consistent batch‑to‑batch magnetic properties and stable broadband noise‑reduction capability. Adopting solid toroidal magnetic‑path construction, it works well for both cable‑level and circuit‑level EMC improvement projects. Strict appearance inspection standards control surface defects for mass‑volume manufacturing. The component meets RoHS and REACH environmental standards, suitable for global export electronic equipment.

Key Features

Strict mass‑production sampling inspection ensures stable electrical parameters and repeatable dimensional performance
Full impedance‑frequency characterization tested across 1 MHz to 500 MHz bandwidth
Fully compliant with RoHS and REACH requirements, suitable for global export electronic projects
Interference suppression for wearable electronics, small‑size household appliances
compact ferrite core, mini ferrite core, ferrite for cable noise filter, emi noise attenuation, emi suppression, common mode interference suppression

Electrical Characteristics

Item	Specification
Test instrument	E4991A
Test frequency range	1 MHz ~ 500 MHz
Test winding fixture	Ø0.5 _0.5TS_ 100L(mm)
Typical Impedance @25 MHz (average of 10 samples)	26.8 Ω (Min. 20 Ω spec)
Typical Impedance @100 MHz (average of 10 samples)	77.9 Ω (Min. 40 Ω spec)

Impedance-vs-frequency test curve is attached in the official approval sheet for reference.

Material Properties

Parameter	Value
Material Grade	VNO2
Initial permeability μi	20 @0.1 MHz
Relative Loss Factor	20*10⁻⁶ @0.1 MHz

Applications

EMI noise mitigation for new‑energy small‑power control units, BMS auxiliary wiring and compact power modules
Anti‑interference processing for office automation hardware, printer peripheral cables and desktop lab device harness
High‑frequency noise attenuation for smart wearable electronics, handheld terminal and portable detection equipment wiring
Conducted interference suppression for compact switching power supplies, DC‑DC converter assemblies and embedded circuit boards
EMC performance improvement for automated production sensors, vision inspection equipment and machine vision signal cables
High‑reliability EMI filtering for on‑board auxiliary electronics, transportation‑grade low‑voltage signal harness

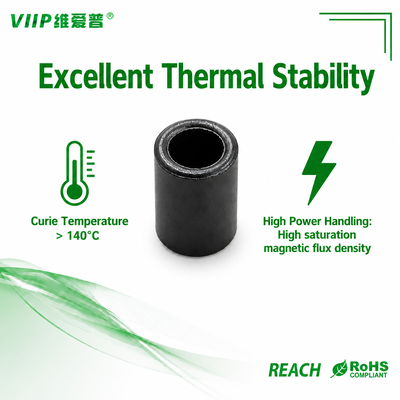

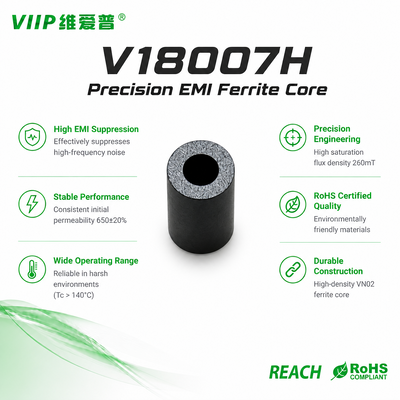

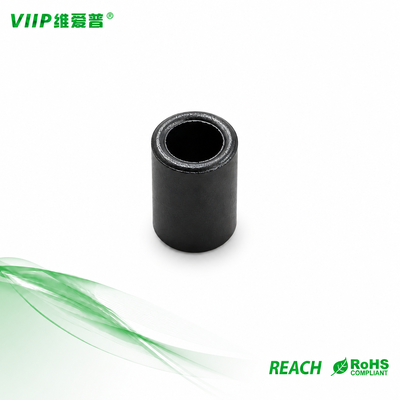

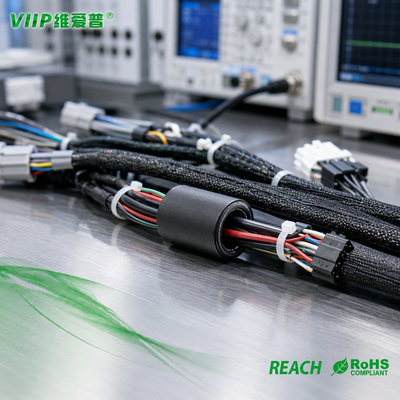

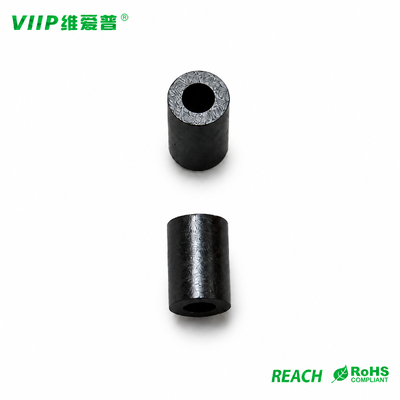

Product Images

Frequently Asked Questions

Can I get free samples for H-series ferrite cores?

Yes, we can provide free H-series ferrite core samples for your performance testing and product evaluation.

What is your regular order requirement for ferrite cores?

Normally mass orders need to comply with our minimum package quantity requirement.

Does the free-sample policy allow small-quantity orders below MOQ for regular purchases?

Free samples are only intended for performance verification. While your first trial order can be negotiated, formal repeat orders must follow our minimum package quantity rule.

What certificates do H-series ferrite cores have?

Our H-series ferrite cores meet RoHS and REACH regulatory requirements.

What is the typical production lead-time for mass-production ferrite core orders?

Typical production lead-time ranges from 2 to 5 weeks, subject to order volume and stock status. Exact lead-time will be confirmed prior to your formal order placement.

Can you customize impedance, physical dimensions or material for H-type ferrite cores?

Customization service is available based on your detailed technical specifications. A dedicated MOQ will apply for all customized ferrite core projects.

Could you provide EMC technical support when I apply your ferrite cores in my projects?

Sure. Our in-house engineering team provides basic EMC technical consultation to assist you with noise-suppression design and circuit debugging work.

What applications are H-series ferrite cores suitable for?

H-series Ni-Zn ferrite cores are widely used for EMI / EMC noise suppression on PCBA traces, wiring harnesses, power cables, consumer electronics, power supplies and communication-related equipment.
