V18041FJ Ferrite Core High Impedance EMI Suppression Magnetic Ring for Electronic Equipment
  • Name
  • Name
  • Name
  • Name
  • Name
  • Name
  • Name

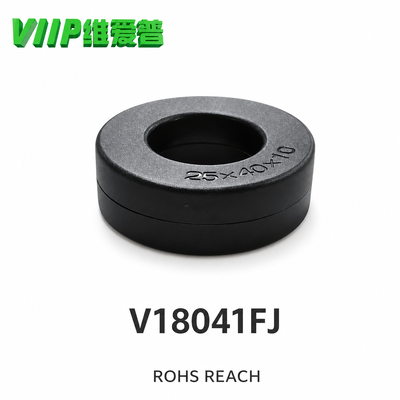

V18041FJ Ferrite Core High Impedance EMI Suppression Magnetic Ring for Electronic Equipment

Brand Name: Weiaipu VIIP
Model Number: V18041FJ
MOQ: 216
Price: 1.6USD
Packaging Details: neutral
Detail Information
Product Description
Detail Information
Place of Origin:
china
Certification:
RoHS REACH
Mate-rial:
1K107B
Initial Permeability:
80000
Curie Tempera-ture:
570
Working Temperature:
-50~150
Saturation Magnetostriation:
2~3
Electeical Resistivity:
0.11
Highlight:

Ferrite Core EMI Suppression Ring

,

High Impedance Magnetic Ring for Electronics

,

EMI Suppression Ferrite Core with Warranty

Product Description

1. Product Overview

The V18041FJ is a high-performance toroidal soft ferrite core manufactured from premium 1K107B grade ferrite material, specially engineered for high-frequency EMI suppression and common-mode noise filtering. Featuring an ultra-high initial permeability of 80000 and a saturation magnetic flux density of 1250mT, this magnetic ring delivers excellent noise absorption capability and stable magnetic conductivity under high-frequency operating conditions. It supports a wide operating temperature range from -50℃ to 150℃ with a high Curie temperature of 570℃, ensuring consistent magnetic performance without attenuation even in extreme cold, high heat, and frequently changing temperature environments. Adopting standardized precision production and strict batch testing procedures, the V18041FJ features highly uniform dimensional tolerance, stable electrical resistivity, and extremely low eddy current loss. It effectively eliminates high-frequency common-mode interference inside electronic circuits, optimizes signal transmission quality, reduces equipment operating noise, and helps end products fully meet international EMC electromagnetic compatibility test standards.
V18041FJ Ferrite Core High Impedance EMI Suppression Magnetic Ring for Electronic Equipment

2. Application Scope & Purpose

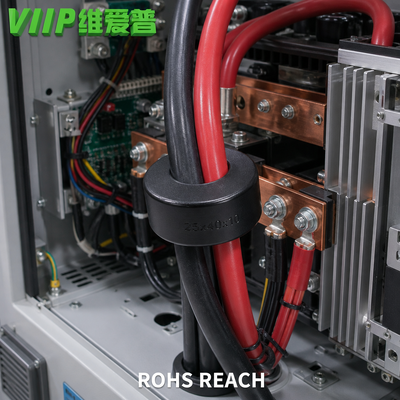

The V18041FJ ferrite magnetic ring is widely applied in common-mode choke coils, EMC filter modules, and high-frequency noise reduction circuits in various electronic devices. It is perfectly suitable for switching power supplies, power adapters, industrial control power systems, household electrical appliances, communication power modules, automotive electronic circuits, and intelligent control equipment. The core main function is to suppress high-frequency common-mode electromagnetic interference on power lines and signal lines, filter out clutter noise generated during device operation, prevent signal distortion and equipment malfunction caused by electromagnetic interference, improve the overall anti-interference ability of electronic products, and greatly increase the pass rate of EMC certification for terminal electronic equipment.
V18041FJ Ferrite Core High Impedance EMI Suppression Magnetic Ring for Electronic Equipment

3. FAQ

Q1: What are the core advantages of the V18041FJ magnetic ring compared with ordinary ferrite cores? A1: The V18041FJ adopts high-grade 1K107B soft ferrite material with ultra-high permeability, higher saturation flux density, and wider temperature adaptability than ordinary ferrite cores. It provides stronger high-frequency noise suppression effect, lower internal heat loss, and more stable long-term working performance, making it more suitable for industrial and high-standard EMC filtering scenarios.
Q2: What temperature environment can the V18041FJ magnetic ring adapt to? A2: This magnetic ring supports a wide operating temperature range of -50℃ to 150℃ and has a Curie temperature of 570℃. It can maintain stable magnetic and filtering performance in extreme low-temperature environments, high-temperature continuous operation, and complex temperature fluctuation conditions, without performance degradation or failure.
Q3: What main electronic devices is the V18041FJ suitable for? A3: It is widely used in switching power supplies, power adapters, industrial control equipment, household appliances, communication power modules, automotive electronics, and various circuit boards that require EMC anti-interference processing. It can be flexibly applied to common-mode inductors and filter circuits of different specifications.
Q4: Does the V18041FJ magnetic ring generate large heat during high-frequency operation? A4: No. The 1K107B high-quality material has excellent resistivity, which effectively inhibits internal eddy current generation during high-frequency operation. It greatly reduces eddy current loss and self-heating, effectively avoids excessive temperature rise of the circuit, reduces thermal aging of peripheral components, and improves the overall service life and stability of electronic equipment.
Q5: Can the V18041FJ help products pass EMC electromagnetic compatibility tests? A5: Definitely yes. The V18041FJ has excellent high-frequency noise filtering and common-mode interference suppression capabilities. It can effectively clean up circuit electromagnetic clutter, optimize electromagnetic environment, and significantly improve the EMC performance of terminal products, which is a reliable core component for customers to pass various international EMC certification tests.
