Product Description

V180162T Broadband EMI Ferrite Core

RoHS REACH Compliant EMC Magnetic Core for Cable Harness High-Frequency Noise Suppression

Product Overview

The V180162T is an EMI suppression ferrite core manufactured by Shenzhen VIIP Electronics Co., Ltd, designed for EMC noise suppression. This medical-grade component effectively suppresses high-frequency electromagnetic interference within electronic circuits and fully complies with RoHS & REACH environmental requirements.

Impedance performance is verified with 10-piece production sample test data, targeting noise attenuation across the 1-500 MHz frequency range. Its toroidal gap-free magnetic-path design provides stable broadband noise-reduction performance for cable harness and circuit-level EMC optimization.

Key Features

Broad-band performance covering 1-500MHz frequency range, delivering outstanding high-frequency electromagnetic noise attenuation for wiring systems
Tested and validated by Keysight E4991A impedance analyzer, providing reliable test data for product performance evaluation and project verification
Material with initial permeability 650, offering well-balanced impedance characteristics for common-mode noise suppression on power cables
Stable magnetic properties, maintaining consistent EMI filtering capability under normal working temperature range

Physical Dimension

Dimensional data is sourced from the official approval sheet sample test records (Rev.4.0). Sample measured typical values (10-sample average): A=18.98 mm, B=10.98 mm, C=12.90 mm. Full dimensional tolerance data and individual sample readings are available upon request, refer to approval sheet 6080025020-V180162T Rev4.0.

Electrical Characteristics

Item	Specification
Test instrument	E4991A
Test frequency range	1 MHz ~ 500 MHz
Test winding fixture	Ø0.50.5TS100L(mm)
Typical inductance L (average of 10 samples)	29.96 μH
Typical Impedance @25 KHz (average)	85.04 Ω
Typical Impedance @100 MHz (average)	18.98 Ω

Impedance-vs-frequency test curve is attached in the official approval sheet for reference.

Material Properties

Parameter	Value
Initial permeability μi	650 (±20%)
Relative Loss Factor	20*10⁻⁶ @0.1 MHz
Saturation magnetic flux density	260 mT (@1600 A/m)
Remanence Br	150 mT
Coercivity	35 A/m
Electrical resistivity	High resistivity to minimize eddy-current loss under high-frequency working conditions

Applications

EMI noise suppression for desktop servers, industrial UPS power supplies and data-center cabinet wiring looms
Anti-interference treatment for fire-alarm control panels, fire safety detection sensors and building automation signal cables
High-frequency noise filtering for handheld industrial terminals, portable inspection devices and field-test equipment harnesses
Conducted interference reduction for household high-power adapters, smart kitchen appliances and multimedia peripheral cables
EMC optimization for unmanned drone flight controllers, robot sensing modules and UAV signal transmission lines
High-reliability power-cable EMI suppression for mining explosion-proof electronics and underground industrial monitoring devices

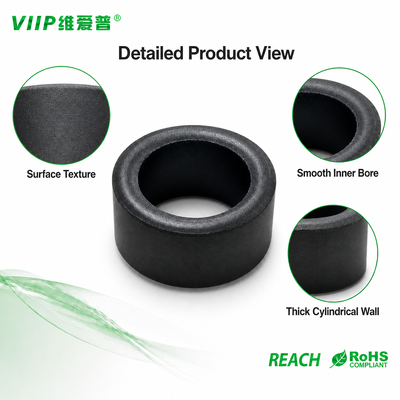

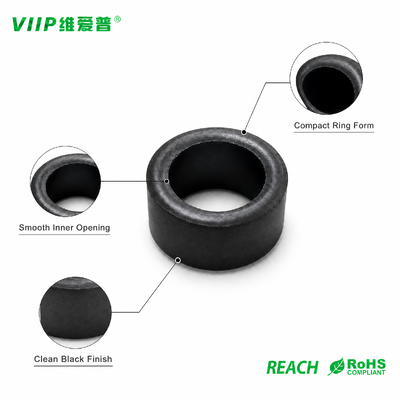

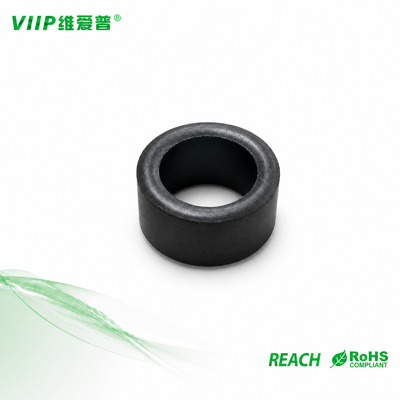

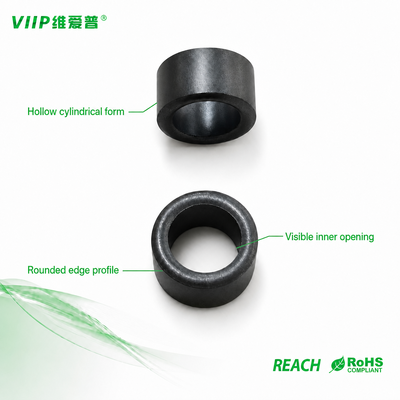

Product Images

Frequently Asked Questions

Can I get free samples for ferrite cores?

Yes, we can provide free ferrite core samples for your performance testing and evaluation.

What is your regular order requirement for ferrite cores?

Normally orders shall follow our minimum package quantity.

Does the free-sample policy mean I can place small-quantity orders below MOQ for all orders?

Free samples are for performance verification only. Except for your first trial order, formal repeat orders need to follow our minimum package quantity requirement.

What certificates do your ferrite cores have? Can you provide approval sheets and test reports?

Our ferrite cores comply with RoHS and REACH standards. We are able to supply PDF approval sheets together with batch test reports for your project certification review.

What is the typical production lead-time for ferrite core mass orders?

Production lead-time is typically 2-5 weeks, depending on order quantity and stock availability. The exact lead-time will be confirmed before you place the formal order.

Can you customize impedance, dimension or material for ferrite cores?

Custom service is available according to your technical specifications. A specific MOQ will be applied for customized ferrite core projects.

Can you offer EMC technical support when I use your ferrite cores in my projects?

Yes. Our engineering team can offer basic EMC technical consultation to support your noise-suppression design and debugging.
