VIIP V180162T EMC Ferrite Core: 1-500MHz Tested by E4991A for Industrial and Medical Wiring Harness EMI Interference Reduction

Brand Name:	Weiaipu
Model Number:	V180162T
MOQ:	1728PCS
Price:	USD0.07
Packaging Details:	Carton
Payment Terms:	T/T

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

ROHS REACH

Model:

V180162T

Product Type:

Ferrite Core (EMI / EMC Noise Suppression)

Compliance:

RoHS, REACH

Highlight:

EMI ferrite core for wiring harness

industrial wiring EMI reduction core

medical EMC ferrite core 500MHz

Product Description

VIIP V180162T EMC Ferrite Core

Product Overview

V180162T Medical-Grade VIIP Ferrite Core: High Impedance EMC Magnetic Core for Medical Equipment Power Cable Anti-Interference. This EMI suppression ferrite core from Shenzhen VIIP Electronics Co., Ltd. effectively suppresses high-frequency electromagnetic interference within electronic circuits and fully complies with RoHS & REACH environmental requirements.

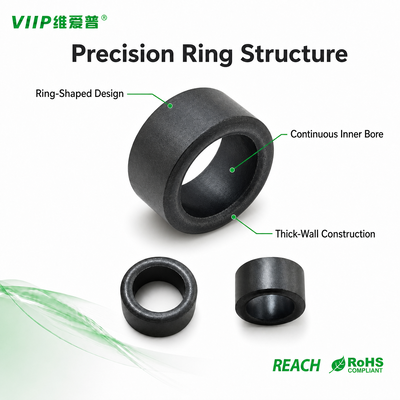

Impedance performance is verified with 10-piece production sample test data, targeting noise attenuation across the 1-500 MHz frequency range. Its toroidal gap-free magnetic-path design provides stable broadband noise-reduction performance for cable harness and circuit-level EMC optimization.

Key Features

Supports customers' EMC certification documentation requirements and simplifies compliance submission procedures
Official approval sheet (drawing & spec document) can be provided for project review
Optimized for thick bundled wire harness, fits large-gauge cable assemblies in power and signal lines
Resists influence of cable vibration and mechanical shock, maintains reliable noise-suppression performance in complex cabinet environments

Physical Dimension

Dimensional data sourced from official approval sheet sample test records (Rev.4.0). Sample measured typical values (10-sample average): A=18.98 mm, B=10.98 mm, C=12.90 mm. Full dimensional tolerance data and individual sample readings available upon request - refer to approval sheet 6080025020-V180162T Rev4.0.

Electrical Characteristics

Item	Specification
Test instrument	E4991A
Test frequency range	1 MHz ~ 500 MHz
Test winding fixture	Ø0.5×0.5TS×100L(mm)
Typical inductance L (average of 10 samples)	29.96 μH
Typical Impedance @25 KHz (average)	85.04 Ω
Typical Impedance @100 MHz (average)	18.98 Ω

Impedance-vs-frequency test curve is attached in the official approval sheet for reference.

Material Properties

Parameter	Value
Initial permeability μi	650 (±20%)
Relative Loss Factor	20*10⁻⁶ @0.1 MHz
Saturation magnetic flux density	260 mT (@1600 A/m)
Remanence Br	150 mT
Coercivity	35 A/m
Curie temperature	>105 °C
Electrical resistivity	High resistivity to minimize eddy-current loss under high-frequency working conditions

Appearance Criteria

Multi-grade breakage-limit standard: Defect area and maximum allowable defect quantity are defined according to core outer dimension for mass-production quality control. All samples passed visual inspection (Y/N = Y for all tested samples) per the approval sheet report.

Applications

EMI noise suppression for telecom base-station equipment, optical communication modules and network communication cabling
Anti-interference treatment for marine-onboard electronic units, ship-borne sensor wiring and vessel control system harnesses
High-frequency noise filtering for commercial charging piles, EV onboard chargers and new-energy vehicle internal wiring assemblies
Conducted interference reduction for smart lighting drivers, LED display control boards and public lighting system cables
EMC optimization for security surveillance cameras, access-control terminals and smart IoT wireless sensing devices
High-reliability power-cable EMI suppression for aerospace auxiliary electronic modules and aviation cabin electrical peripherals

Product Images

Frequently Asked Questions

Can I get free samples for ferrite cores?

Yes, we can provide free ferrite core samples for your performance testing and evaluation.

What is your regular order requirement for ferrite cores?

Normally orders shall follow our minimum package quantity.

Does the free-sample policy mean I can place small-quantity orders below MOQ for all orders?

Free samples are for performance verification only. Except for your first trial order, formal repeat orders need to follow our minimum package quantity requirement.

What certificates do your ferrite cores have? Can you provide approval sheets and test reports?

Our ferrite cores comply with RoHS and REACH standards. We are able to supply PDF approval sheets together with batch test reports for your project certification review.

What is the typical production lead-time for ferrite core mass orders?

Production lead-time is typically 2-5 weeks, depending on order quantity and stock availability. The exact lead-time will be confirmed before you place the formal order.

Can you customize impedance, dimension or material for ferrite cores?

Custom service is available according to your technical specifications. A specific MOQ will be applied for customized ferrite core projects.

Can you offer EMC technical support when I use your ferrite cores in my projects?

Yes. Our engineering team can offer basic EMC technical consultation to support your noise-suppression design and debugging.
