V180152T EMC Ferrite Core: Precision Moulded Magnetic Core for Cable Vibration Shock Resistance EMI Noise Suppression Filter

All Category

Flat Ferrite Core

Miss. Vicky Lee

vip6@szviip.com

19925448748

19925448748

Contact Now

V180152T EMC Ferrite Core: Precision Moulded Magnetic Core for Cable Vibration Shock Resistance EMI Noise Suppression Filter

Brand Name:	Weiaipu
Model Number:	V180152T
MOQ:	2040PCS
Price:	USD0.07
Packaging Details:	Carton
Payment Terms:	T/T

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

ROHS REACH

Model:

V180152T

Product Type:

Ferrite Core (EMI / EMC Noise Suppression)

Compliance:

RoHS, REACH

Highlight:

EMC ferrite core for EMI suppression

Precision moulded ferrite core for cable vibration

Ferrite core with shock resistance EMI filter

Product Description

V180152T EMC Ferrite Core: Precision Moulded Magnetic Core for Cable Vibration Shock Resistance EMI Noise Suppression Filter

Product Overview

The V180152T is an EMI suppression ferrite core manufactured by Shenzhen VIIP Electronics Co., Ltd, designed for EMC noise suppression. This medical-grade component effectively suppresses high-frequency electromagnetic interference in electronic circuits and complies with RoHS & REACH requirements.

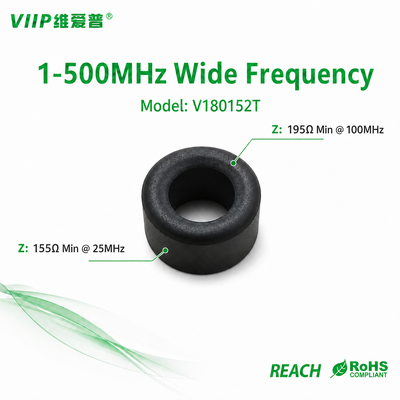

Impedance performance is validated with 10-sample production test data, targeting noise attenuation within the 1-500 MHz frequency range. Its toroidal gap-free magnetic-path design delivers stable broadband noise-reduction performance for cables and circuit-level EMC optimization.

Key Features

Flexible MOQ for trial orders and sample evaluation, with fast sample delivery
Suitable for industrial automation equipment, servo drives, PLC systems, and switching power supply noise filtering
Full raw material traceability—each lot can be traced back to raw material batch and finished-product test records
High impedance across wide frequency spectrum, effectively attenuating conducted electromagnetic interference on power lines and signal cables

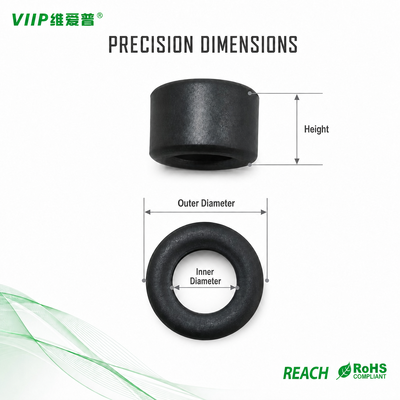

Physical Dimension

Raw specification document dimension data is incomplete; actual dimensions refer to official approval sheet sample test records. Typical measured values from sample inspection are available upon request.

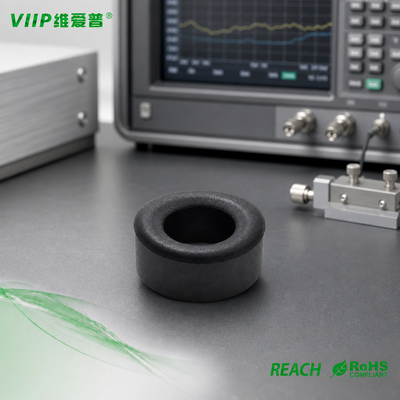

Electrical Characteristics

Test Condition	Specification
Test instrument	E4991A
Test frequency range	1 MHz ~ 500 MHz
Test winding fixture	Ø0.5 _0.5TS_ 100L(mm)

Material Properties (VN02 Ferrite Grade)

Property	Value
Initial permeability μi	650 (±20%)
Relative Loss Factor	20*10⁶ @0.1 MHz
Saturation magnetic flux density	260 mT (@1600 A/m)
Remanence Br	150 mT
Coercivity	35 A/m
Curie temperature	>105 °C
Electrical resistivity	High electrical resistivity suppresses eddy-current loss under high-frequency operation

Appearance Criteria

Multi-grade breakage-limit standard: Defect area and maximum defect quantity are defined according to core outer diameter for quality control of mass-production parts.

Applications

EMI noise mitigation for industrial switching-mode power supplies and DC-DC converter units
Interference suppression for industrial control boards, PLC peripheral modules and field-bus communication hardware
High-frequency noise attenuation for motor drive circuits and sensor signal transmission lines
EMC optimization for security surveillance hardware including network cameras and video recording devices
Conducted interference elimination for telecom base station auxiliary power and signal interface circuits

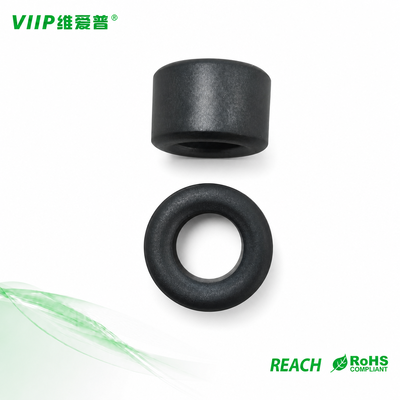

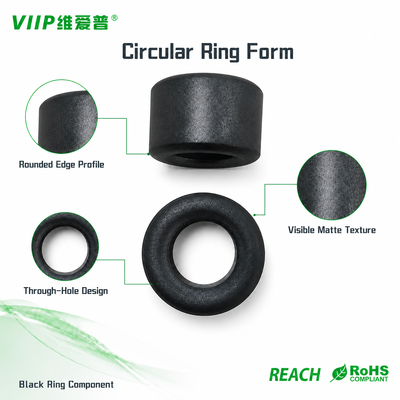

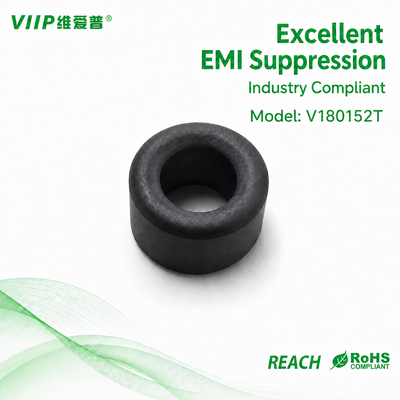

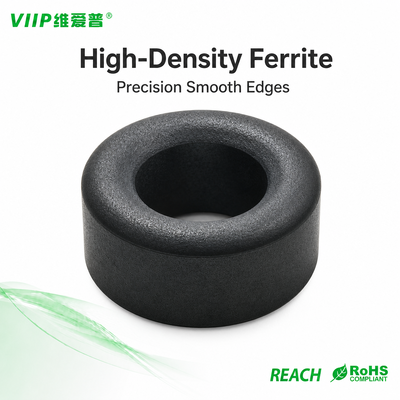

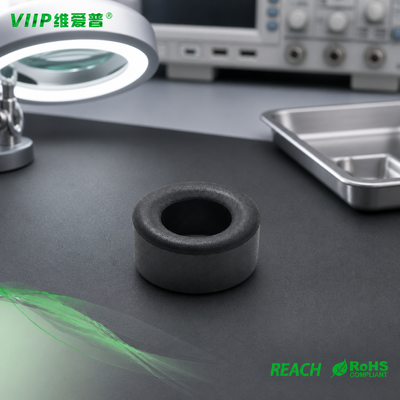

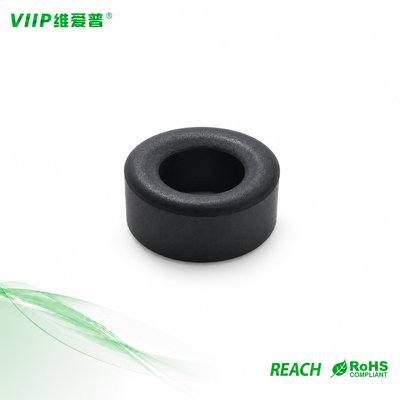

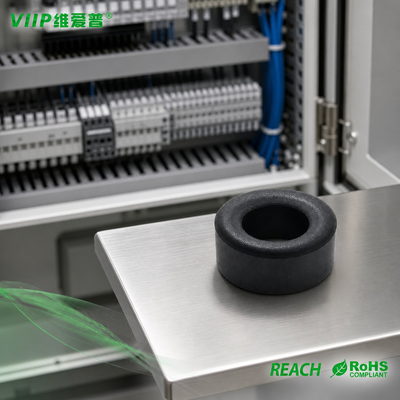

Product Images

Frequently Asked Questions

Can I get free samples for ferrite cores?

Yes, we can provide free ferrite core samples for your performance testing and evaluation.

What is your regular order requirement for ferrite cores?

Normally orders shall follow our minimum package quantity.

Does the free-sample policy mean I can place small-quantity orders below MOQ for all orders?

Free samples are for performance verification only. Except for your first trial order, formal repeat orders need to follow our minimum package quantity requirement.

What certificates do your ferrite cores have? Can you provide approval sheets and test reports?

Our ferrite cores comply with RoHS and REACH standards. We are able to supply PDF approval sheets together with batch test reports for your project certification review.

What is the typical production lead-time for ferrite core mass orders?

Production lead-time is typically 2-5 weeks, depending on order quantity and stock availability. The exact lead-time will be confirmed before you place the formal order.

Can you customize impedance, dimension or material for ferrite cores?

Custom service is available according to your technical specifications. A specific MOQ will be applied for customized ferrite core projects.

Can you offer EMC technical support when I use your ferrite cores in my projects?

Yes. Our engineering team can offer basic EMC technical consultation to support your noise-suppression design and debugging.
