VIIP V180152T Medical Grade Ferrite Core: EMC Noise Damping Magnetic Core for Hospital Device Power Cable Anti-Interference

Brand Name:	Weiaipu
Model Number:	V180152T
MOQ:	2040PCS
Price:	USD0.07
Packaging Details:	Carton
Payment Terms:	T/T

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

ROHS REACH

Model:

V180152T

Product Type:

Ferrite Core (EMI / EMC Noise Suppression)

Compliance:

RoHS, REACH

Highlight:

medical grade ferrite core

EMC noise damping magnetic core

hospital device power cable ferrite core

Product Description

VIIP V180152T Medical Grade Ferrite Core

EMC Noise Damping Magnetic Core for Hospital Device Power Cable Anti-Interference

Product Overview

The V180152T is an EMI suppression ferrite core manufactured by Shenzhen VIIP Electronics Co., Ltd, designed for EMC noise suppression. This component effectively suppresses high-frequency electromagnetic interference in electronic circuits and complies with RoHS & REACH requirements.

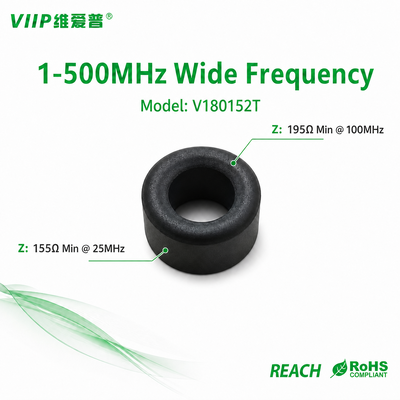

Impedance performance is validated with 10-sample production test data, targeting noise attenuation within the 1-500 MHz frequency range. Its toroidal gap-free magnetic-path design delivers stable broadband noise-reduction performance for cables and circuit-level EMC optimization.

Key Features

Fine surface treatment greatly reduces scratch risk of enameled wire in winding work
Robust sintering structure improves mechanical strength against crack caused by winding tension
Fully comply with RoHS & REACH requirements
We can supply official approval sheets and batch test data for your product certification submission
Widely used for making common-mode inductors to eliminate high-frequency conducted noise of industrial power, signal transmission systems
We offer samples, flexible volume orders and supporting EMC design consultation service
Graded multi-level appearance defect control standard restricts defect area and defect quantity for stable mass-production consistency
Uniform ferrite material density minimizes internal micro-cracks and hidden mechanical failures

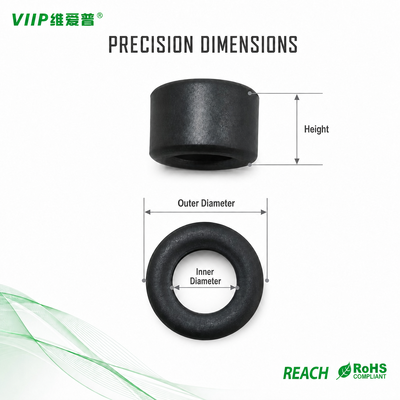

Physical Dimension

Raw specification document dimension data is incomplete; actual dimensions refer to official approval sheet sample test records. Typical measured values from sample inspection are available upon request.

Electrical Characteristics

Test Condition

Test instrument: E4991A
Test frequency range: 1 MHz ~ 500 MHz
Test winding fixture: Ø0.5 _0.5TS_ 100L(mm)

Material Properties (VN02 Ferrite Grade)

Initial permeability μi	650 (±20%)
Relative Loss Factor	20*10⁶ @0.1 MHz
Saturation magnetic flux density	260 mT (@1600 A/m)
Remanence Br	150 mT
Coercivity	35 A/m
Curie temperature	>105 °C
Electrical resistivity	High electrical resistivity suppresses eddy-current loss under high-frequency operation

Appearance Criteria

Multi-grade breakage-limit standard: Defect area and maximum defect quantity are defined according to core outer diameter for quality control of mass-production parts.

Applications

EMI filtering for power adapters of smartphones, tablets, and laptops
Anti-interference for smart wearable devices, smart home terminals, and IoT modules
High-frequency noise suppression on signal cables for HD audio/video equipment (e.g., monitors, projectors, set-top boxes)
Electromagnetic shielding for wireless charging modules and high-speed data interfaces (e.g., USB Type-C)

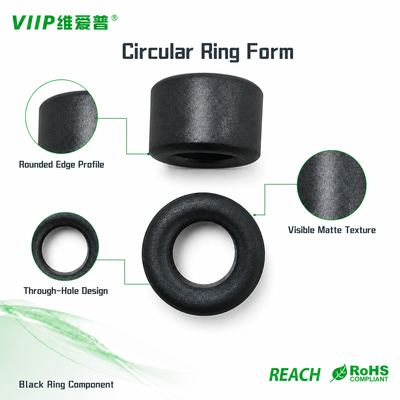

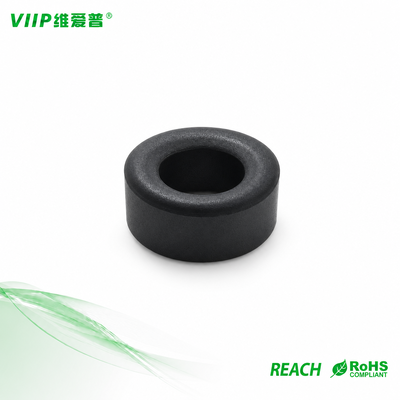

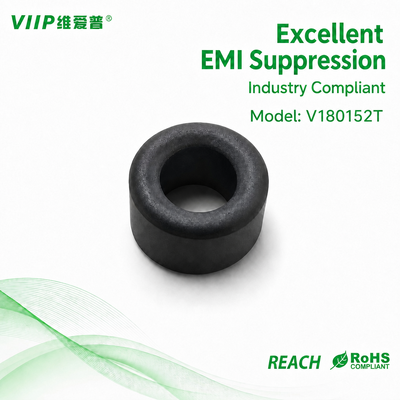

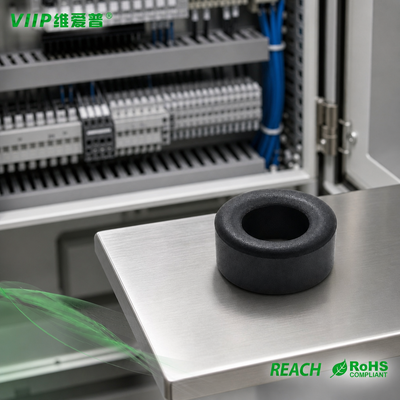

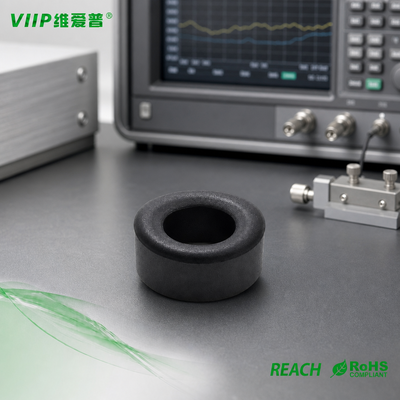

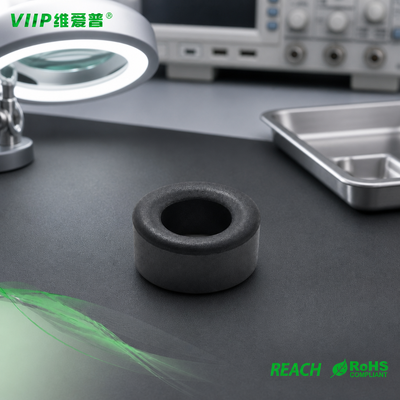

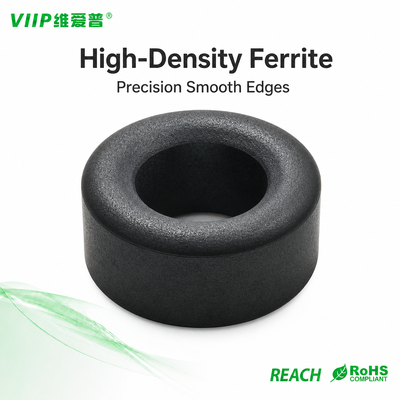

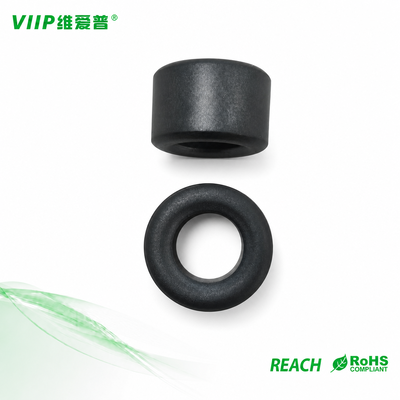

Product Images

Frequently Asked Questions

Can I get free samples for ferrite cores?

Yes, we can provide free ferrite core samples for your performance testing and evaluation.

What is your regular order requirement for ferrite cores?

Normally orders shall follow our minimum package quantity.

Does the free-sample policy mean I can place small-quantity orders below MOQ for all orders?

Free samples are for performance verification only. Except for your first trial order, formal repeat orders need to follow our minimum package quantity requirement.

What certificates do your ferrite cores have? Can you provide approval sheets and test reports?

Our ferrite cores comply with RoHS and REACH standards. We are able to supply PDF approval sheets together with batch test reports for your project certification review.

What is the typical production lead-time for ferrite core mass orders?

Production lead-time is typically 2-5 weeks, depending on order quantity and stock availability. The exact lead-time will be confirmed before you place the formal order.

Can you customize impedance, dimension or material for ferrite cores?

Custom service is available according to your technical specifications. A specific MOQ will be applied for customized ferrite core projects.

Can you offer EMC technical support when I use your ferrite cores in my projects?

Yes. Our engineering team can offer basic EMC technical consultation to support your noise-suppression design and debugging.
