Product Description:

The EMI Ferrite Core is a high-performance magnetic component designed to effectively suppress electromagnetic interference (EMI) in various electronic devices and systems. Manufactured from premium 1K107B material, this core offers exceptional magnetic properties that make it an ideal choice for improving signal integrity and reducing noise in sensitive electronic circuits. Its robust construction and superior material characteristics ensure reliable performance across a wide range of applications, including power supplies, communication devices, and audio equipment.

One of the key attributes of this EMI Ferrite Core is its density, measured at 7.3 REF. This density contributes significantly to the core’s ability to absorb and dissipate high-frequency noise, providing efficient EMI suppression. Additionally, the core boasts a high Curie temperature of 570°C, which means it can operate effectively under elevated temperatures without losing its magnetic properties. This thermal stability is crucial for applications subjected to harsh environmental conditions or intense operational heat.

The saturation magnetic flux density of this ferrite core is rated at 1250 Gauss, indicating its capacity to handle substantial magnetic flux without becoming magnetically saturated. This feature ensures that the core maintains its EMI suppression capabilities even under high current loads, making it suitable for demanding electronic circuits. Furthermore, the initial permeability of the core is an impressive 80,000, which reflects its ability to easily magnetize and demagnetize. This high permeability enhances the core's effectiveness in attenuating high-frequency noise signals.

Available in various forms including the ferrite clip-on EMI core, ferrite bead EMI core, and ferrite ring EMI core, this EMI Ferrite Core product line offers versatile solutions tailored to different application needs. The ferrite clip-on EMI core design allows for easy installation onto existing cables and wires, providing a convenient and cost-effective method to reduce EMI without the need for circuit redesign. The ferrite bead EMI core is typically used to suppress high-frequency noise in signal lines, ensuring cleaner signal transmission and improved device performance. Meanwhile, the ferrite ring EMI core is commonly employed in power lines and transformers, where it helps minimize electromagnetic noise and enhances overall system reliability.

Each variant of this EMI Ferrite Core is engineered to deliver optimal performance by leveraging the unique magnetic properties of the 1K107B material. This material is renowned for its excellent magnetic permeability and low core losses, which translate into efficient EMI attenuation and minimal impact on circuit operation. Whether you need to reduce interference in data communication lines, audio circuits, or power electronics, these ferrite cores provide a dependable solution that enhances electromagnetic compatibility (EMC) and reduces the risk of malfunction or signal degradation.

In summary, the EMI Ferrite Core made from 1K107B material with a density of 7.3 REF, a Curie temperature of 570°C, a saturation magnetic flux density of 1250 Gauss, and an initial permeability of 80,000 is a superior choice for EMI suppression applications. Its availability in ferrite clip-on EMI core, ferrite bead EMI core, and ferrite ring EMI core configurations ensures adaptability to various installation requirements and electronic devices. With excellent thermal stability, high saturation flux density, and outstanding permeability, this ferrite core product line guarantees effective noise attenuation, improved signal quality, and enhanced overall electronic performance.

Features:

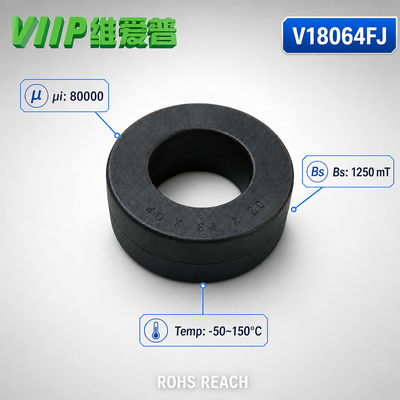

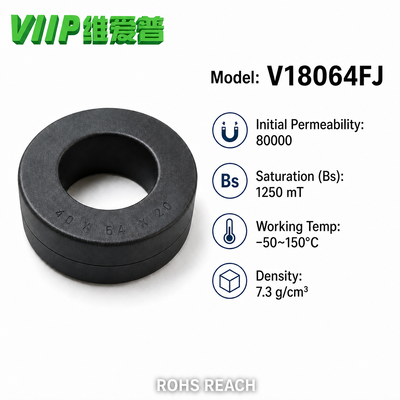

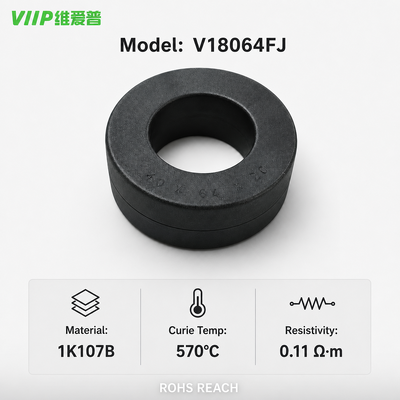

• Product Name: EMI Ferrite Core
• Material: 1K107B
• Density: 7.3 REF
• Curie Temperature: 570°C
• Initial Permeability: 80,000
• Saturation Magnetic Flux Density: 1250 mT
• Excellent EMI suppression ferrite core for reducing electromagnetic interference
• High-performance EMI choke ferrite core suitable for various electronic applications
• Durable and efficient ferrite toroidal EMI core designed for optimal magnetic properties

Technical Parameters:

Applications:

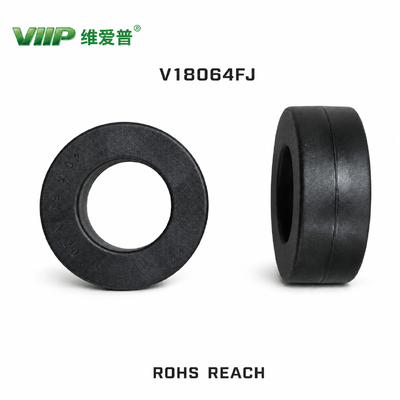

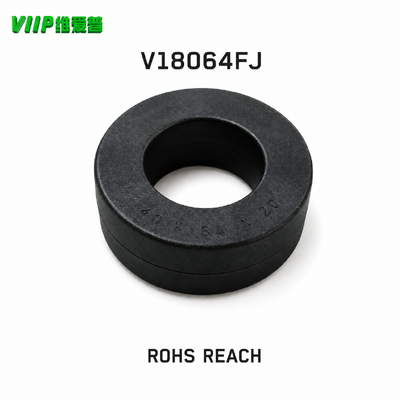

The VIIP WeiAiPu Ferrite ring EMI core, model number V18064FJ, is an essential component designed for effective electromagnetic interference (EMI) suppression across a variety of applications. Manufactured in China with high-quality 1K107B material, this EMI suppression ferrite core offers reliable performance and durability. It is certified under Rohs Reach, ensuring compliance with environmental and safety standards, making it an excellent choice for manufacturers seeking certified components.

This Ferrite ring EMI core is widely used in electronic devices where EMI noise reduction is critical. Its high saturation magnetic flux density of 1250 and a Curie temperature of 570°C enable it to perform efficiently under intense electromagnetic conditions. The core operates seamlessly within a working temperature range of -50°C to 150°C, making it suitable for use in both industrial and consumer electronics exposed to varying environmental conditions.

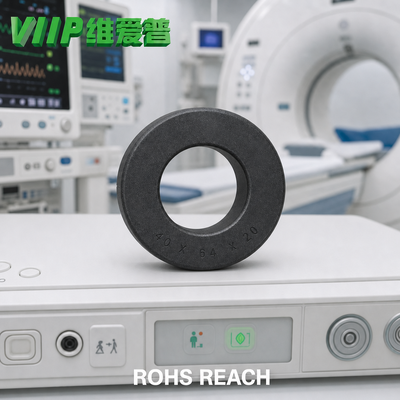

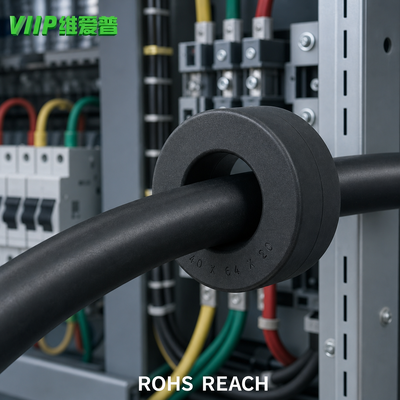

Typical application occasions for the VIIP WeiAiPu V18064FJ include power supplies, transformers, inverters, and various communication equipment. It is highly effective in scenarios where reducing high-frequency noise and improving signal integrity is crucial. The ferrite ring EMI core is also ideal for use in automotive electronics, medical devices, and household appliances, where it helps prevent electromagnetic disturbances that can affect sensitive circuits.

In manufacturing environments, the EMI suppression ferrite core is used to enhance the performance of electronic assemblies by minimizing EMI emissions. Its density of 7.3 REF ensures compactness without compromising magnetic properties, allowing integration into tight spaces. With a supply ability of 2000 pieces per day and a minimum order quantity of 100 pieces, VIIP WeiAiPu ensures timely delivery within 5-7 days via secure carton packaging. Payment terms are flexible with T/T options, supporting efficient procurement processes.

Overall, the VIIP WeiAiPu Ferrite ring EMI core V18064FJ is an indispensable component for engineers and designers focused on EMI mitigation. Its robust material properties, wide temperature tolerance, and certified quality make it an ideal choice for diverse EMI suppression applications, ensuring electronic devices operate smoothly and reliably in complex electromagnetic environments.

Customization:

VIIP WeiAiPu offers customized product services for the EMI Ferrite Core model V18064FJ, a high-quality Ferrite sleeve EMI core manufactured in CHINA. Our Ferrite sleeve EMI core complies with Rohs Reach certification, ensuring environmental safety and reliability.

The minimum order quantity for this Ferrite sleeve EMI core is 100pcs, with packaging details carefully arranged in cartons to protect the product during shipping. We guarantee a delivery time of 5-7 days to meet your urgent demands.

Payment terms are flexible with T/T accepted, and our supply ability reaches up to 2000PCS per day, ensuring consistent availability. This EMI Ferrite Core features a Curie Temperature of 570°C, a density of 7.3 REF, and an initial permeability of 80000, making it ideal for various electromagnetic interference applications.

Designed to operate efficiently within a working temperature range of -50 to 150°C, and made from premium 1K107B material, this Ferrite sleeve EMI core provides excellent performance and durability for your electronic devices.

FAQ:

Q1: What brand manufactures the EMI Ferrite Core model V18064FJ?

A1: The EMI Ferrite Core model V18064FJ is manufactured by VIIP WeiAiPu.

Q2: Where is the VIIP WeiAiPu EMI Ferrite Core V18064FJ produced?

A2: The EMI Ferrite Core V18064FJ is produced in China.

Q3: What certifications does the EMI Ferrite Core V18064FJ have?

A3: The EMI Ferrite Core V18064FJ is certified with Rohs Reach.

Q4: What is the minimum order quantity for the VIIP WeiAiPu EMI Ferrite Core V18064FJ?

A4: The minimum order quantity for the EMI Ferrite Core V18064FJ is 100 pieces.

Q5: What are the packaging and delivery details for the EMI Ferrite Core V18064FJ?

A5: The EMI Ferrite Core V18064FJ is packaged in cartons, with a typical delivery time of 5-7 days.

Q6: What are the payment terms and supply capacity for the EMI Ferrite Core V18064FJ?

A6: Payment terms are T/T, and the supply ability is 2000 pieces per day.
