V180220T Ferrite Core With Test Approval Sheet VN02 Grade Magnetic Core for Global Industrial Projects

Brand Name: Weiaipu
Model Number: V180220T
MOQ: 200PCS
Price: USD0.45
Packaging Details: Carton
Payment Terms: T/T
Detail Information
Product Description
Detail Information
Place of Origin:
China
Certification:
ROHS REACH
Model:
V180220T
Product Type:
Ferrite Core (EMI / EMC Noise Suppression)
Compliance:
RoHS, REACH
Highlight:

VN02 grade ferrite core

,

ferrite core with test approval

,

industrial EMI ferrite core

Product Description
V180220T Ferrite Core With Test Approval Sheet VN02 Grade Magnetic Core for Global Industrial Projects
V180220T Ring Ferrite Core for Winding Common Mode Choke High-Frequency EMC Suppression Component
VIIP V180220T Toroidal Ferrite Core RoHS REACH VN02 Grade Soft Magnetic Core for EMI Noise Suppression
Product Overview
V180220T is a Mn‑Zn EMI‑suppression ferrite core from Shenzhen VIIP Electronics, optimized to filter high‑frequency electromagnetic noise for electronic circuits and cables. It offers minimum impedance 35Ω@25MHz and 75Ω@100MHz for noise attenuation across 1‑500 MHz. Production sample tests confirm its stable electrical performance. It complies with RoHS & REACH and is ideal for manufacturing common‑mode inductors for electronic devices.
Key Features

• Optimized sintering craft enhances structural toughness, resisting cracking stress during high‑speed automatic winding
• Excellent high‑frequency noise‑suppression capability, ideal for building common‑mode inductors for power & signal circuits
• Balanced magnetic parameters maintain steady filtering performance under fluctuating ambient‑temperature conditions
• Formal approval sheets and full‑lot test reports are provided to support customers’ global product certification
• Smooth surface finish minimizes enameled‑wire abrasion, reducing hidden failure risks of wound inductive components
• Professional in‑house EMC technical team offers auxiliary suggestions for your circuit noise‑reduction debugging

Physical Dimension
Main dimension: 40.6 ±1.0 mm; other measured dimensions from sample test: 14.87 mm, 27.58 mm (typical average value).
Electrical Characteristics
Frequency Minimum Impedance
25 MHz ≥35 Ω
100 MHz ≥75 Ω
Average sample measured result: Z@25MHz=44.4Ω; Z@100MHz=90.3Ω (10-samples average).
Test Condition
  • Test instrument: E4991A + 16194A
  • Test frequency range: 1 MHz ~ 500 MHz
  • Test winding fixture: Ø0.5*0.5TS*100L(mm)
Material Properties (VN02 Ferrite Grade)
  • Initial permeability μi: 650 (±20%)
  • Relative Loss Factor: 20*10⁶ @0.1 MHz
  • Saturation magnetic flux density: 260 mT (@1600 A/m)
  • Remanence Br: 150 mT; Coercivity: 35 A/m
  • Curie temperature: >105 °C
Appearance Criteria
Defect area ≤6 mm² (breakage limit standard).
Applications

• High‑frequency noise attenuation for security monitoring systems, machine‑vision cameras and image‑transmission harness
• Conducted interference filtering for smart home control units and wireless IoT module peripheral circuits
• EMC improvement for automotive auxiliary electronics and low‑voltage signal wiring of on‑board accessories
• Noise suppression for LED intelligent drive systems and high‑efficiency power conversion circuit assemblies
• Interference mitigation for communication terminal hardware and wired peripheral signal‑processing circuitry

Product Images

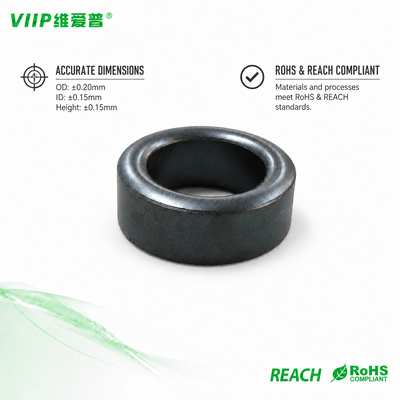

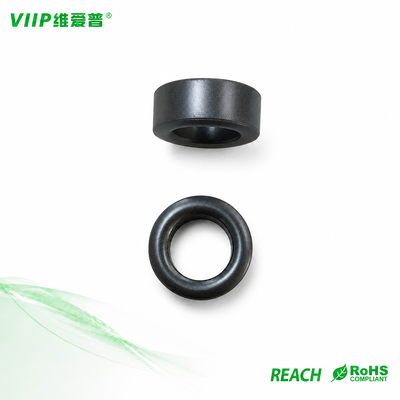

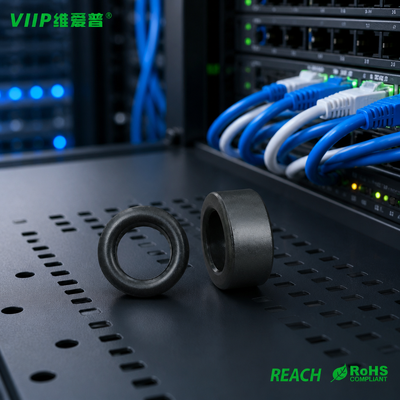

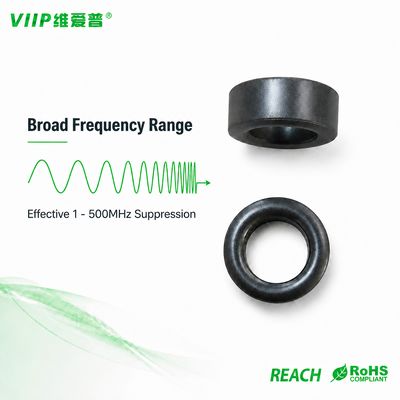

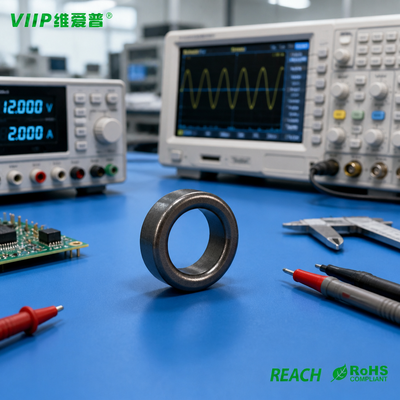

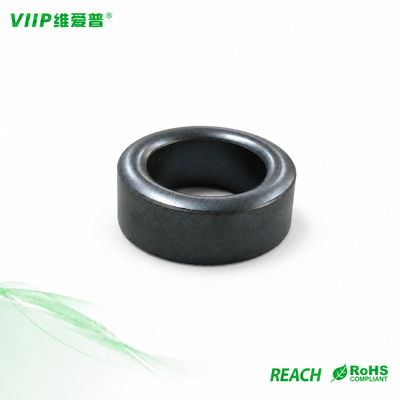

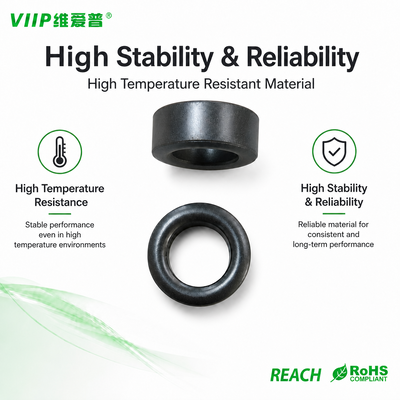

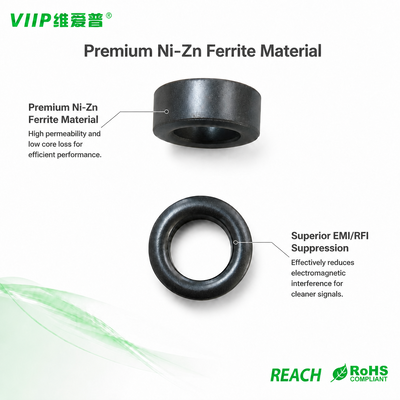

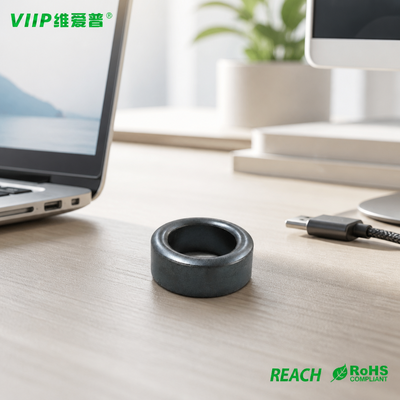

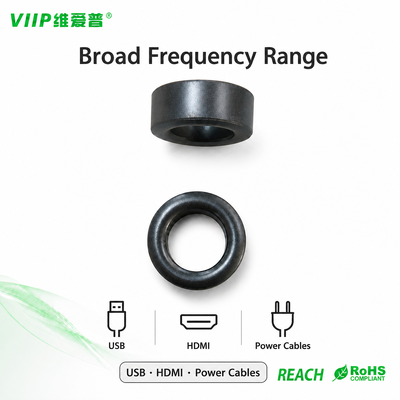

VIIP V180220T Ferrite Core product image showing front view VIIP V180220T Ferrite Core product image showing side view VIIP V180220T Ferrite Core product image showing dimensional details VIIP V180220T Ferrite Core product image showing packaging VIIP V180220T Ferrite Core product image showing application example
