V180220T Soft Toroid Ferrite Core

Product Overview

V180220T is an EMI suppression ferrite core manufactured by Shenzhen VIIP Electronics Co., Ltd, designed for EMC noise suppression. This component effectively suppresses high-frequency electromagnetic interference in electronic circuits and complies with RoHS & REACH requirements. Impedance performance is validated with 10-sample production test data, targeting noise attenuation within the 1-500 MHz frequency range.

Key Features

VN02-grade NiZn toroidal ferrite core with high magnetic flux density and superior anti-saturation property
Curie temperature exceeds 105℃, maintaining stable magnetic characteristics in elevated-temperature environments
Every core tested across 1-500 MHz frequency band by professional impedance analyzer
Strict dimension inspection ensures high batch consistency, compatible with automatic winding equipment

Physical Dimension

Main dimension: 40.6 ±1.0 mm; other measured dimensions from sample test: 14.87 mm, 27.58 mm (typical average value).

Electrical Characteristics

Frequency	Minimum Impedance
25 MHz	≥35 Ω
100 MHz	≥75 Ω

Average sample measured result: Z@25MHz=44.4Ω; Z@100MHz=90.3Ω (10-samples average).

Test Condition

Test instrument: E4991A + 16194A
Test frequency range: 1 MHz ~ 500 MHz
Test winding fixture: Ø0.5*0.5TS*100L(mm)

Material Properties (VN02 Ferrite Grade)

Initial permeability μi: 650 (±20%)
Relative Loss Factor: 20*10⁶ @0.1 MHz
Saturation magnetic flux density: 260 mT (@1600 A/m)
Remanence Br: 150 mT; Coercivity: 35 A/m
Curie temperature: >105 °C

Appearance Criteria

Defect area ≤6 mm² (breakage limit standard).

Applications

EMC/EMI noise suppression for cables and electronic circuitry
Suppress high-frequency common-mode & differential-mode interference
Power supply units, consumer electronics, data communication equipment
Products requiring RoHS & REACH compliant magnetic noise-filtering components
Used together with EMI filter design for circuit EMC debugging & improvement

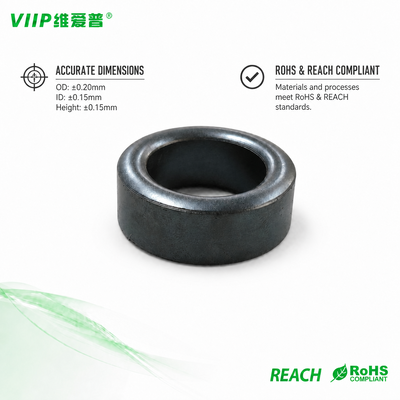

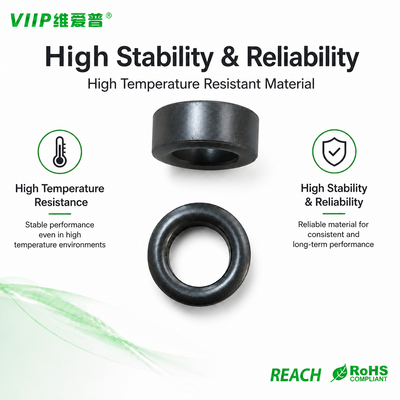

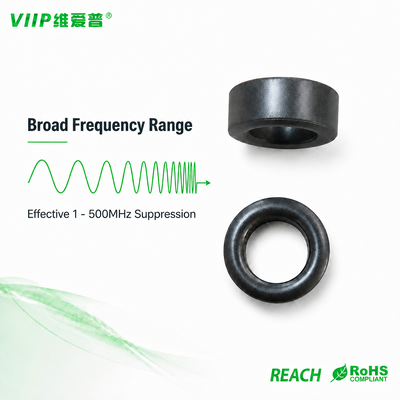

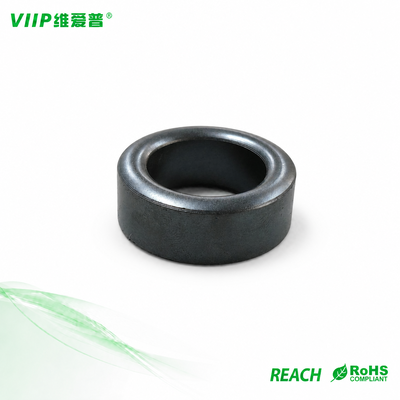

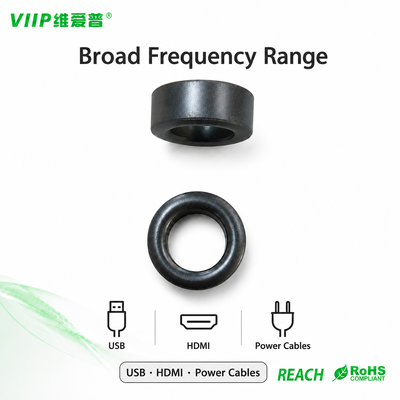

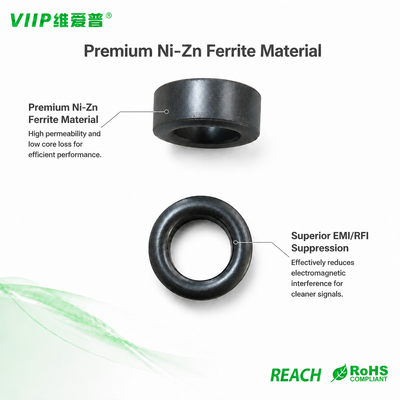

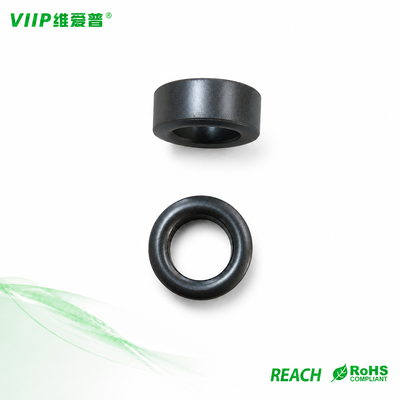

Product Images

Frequently Asked Questions

Can I get free samples for ferrite cores?

Yes, we can provide free ferrite core samples for your performance testing and evaluation.

What is your regular order requirement for ferrite cores?

Normally orders shall follow our minimum package quantity.

Does the free-sample policy mean I can place small-quantity orders below MOQ for all orders?

Free samples are for performance verification only. Except for your first trial order, formal repeat orders need to follow our minimum package quantity requirement.

What certificates do your ferrite cores have? Can you provide approval sheets and test reports?

Our ferrite cores comply with RoHS and REACH standards. We are able to supply PDF approval sheets together with batch test reports for your project certification review.

What is the typical production lead-time for ferrite core mass orders?

Production lead-time is typically 2-5 weeks, depending on order quantity and stock availability. The exact lead-time will be confirmed before you place the formal order.

Can you customize impedance, dimension or material for ferrite cores?

Custom service is available according to your technical specifications. A specific MOQ will be applied for customized ferrite core projects.

Can you offer EMC technical support when I use your ferrite cores in my projects?

Yes. Our engineering team can offer basic EMC technical consultation to support your noise-suppression design and debugging.
