V180209T Soft Ferrite Magnetic Core for Common Mode Inductor EMI Filtering Industrial Electronics

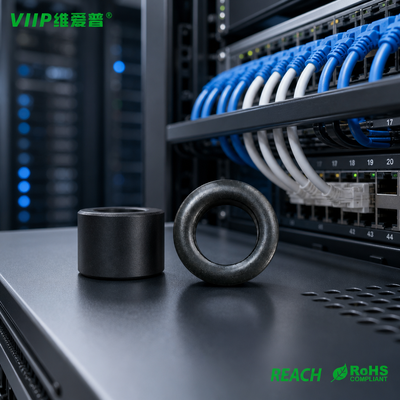

  • Name

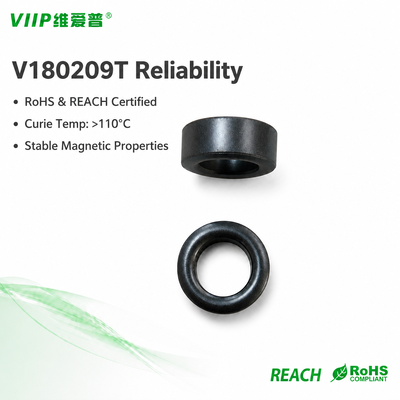

  • Name

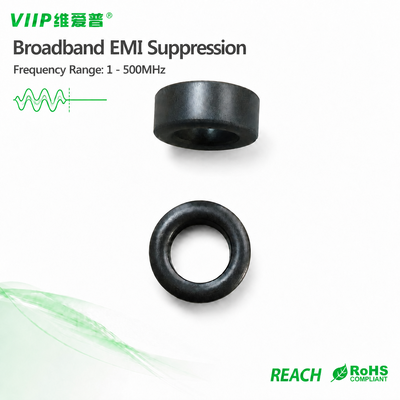

  • Name

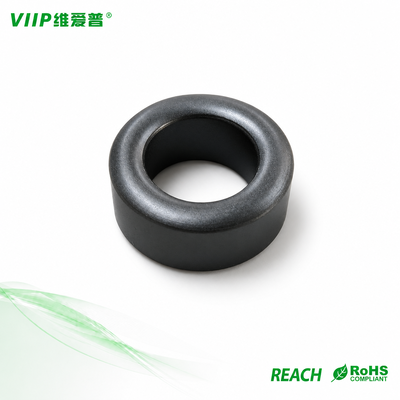

  • Name

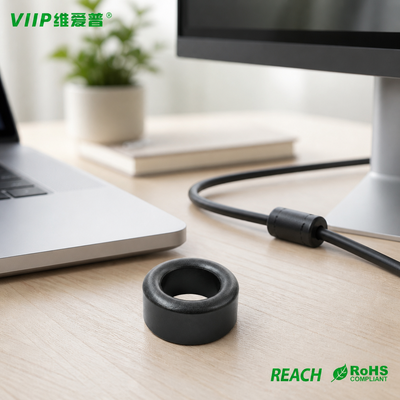

  • Name

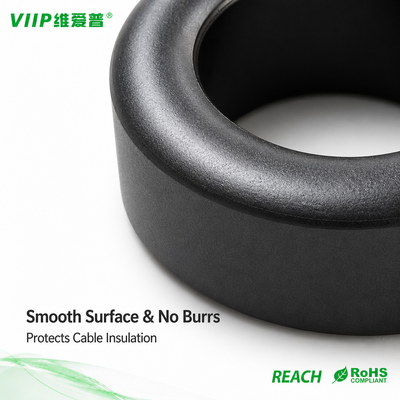

  • Name

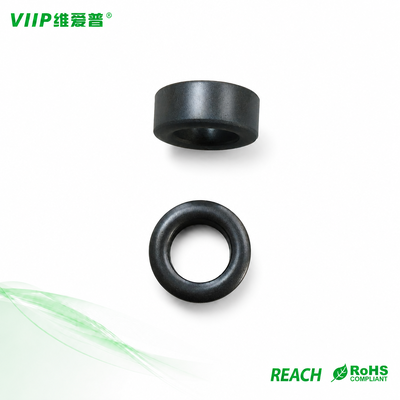

  • Name

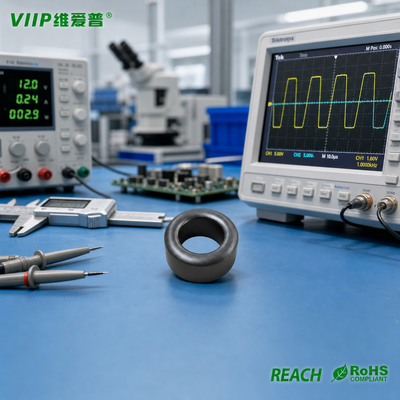

  • Name
  • Name
  • Name
  • Name
  • Name

V180209T Soft Ferrite Magnetic Core for Common Mode Inductor EMI Filtering Industrial Electronics

Brand Name: Weiaipu
Model Number: V180209T
MOQ: 624PCS
Price: USD0.23
Packaging Details: Carton
Payment Terms: T/T
Detail Information
Product Description
Detail Information
Place of Origin:
China
Certification:
ROHS REACH
Model:
V180209T
Product Type:
Ferrite Core
Compliance:
RoHS, REACH
Highlight:

soft ferrite magnetic core for EMI filtering

,

common mode inductor ferrite core

,

industrial electronics EMI ferrite core

Product Description

V180209T Ferrite Core

Product Overview

V180209T is an EMC‑focused EMI‑suppression ferrite core from Shenzhen VIIP Electronics Co., Ltd. It eliminates high‑frequency electromagnetic interference for electronic circuitry. The Rev4.0 approval sheet (Jul 1, 2025) meets RoHS and REACH requirements. Ten‑piece production sample testing validates its impedance performance for noise attenuation from 1 MHz to 500 MHz.

Key Features

  1. ≥30 Ω@25 MHz, ≥70 Ω@100 MHz for high‑frequency EMI attenuation
  2. RoHS & REACH compliant
  3. High‑resistivity Ni‑Zn ferrite, low eddy‑current loss
  4. Consistent electrical & dimensional performance verified by production samples
  5. 1‑500 MHz impedance characterization with Ø0.5×0.5TS×100L(mm) test fixture

Specifications

General

Item Parameter
Model V180209T
Manufacturer Part No. 6080026029
Product Type Ferrite Core (EMI / EMC noise suppression)
Document Revision Rev4.0
Issue Date July 1, 2025
Compliance RoHS, REACH

Physical Dimension

Main dimension: 19.0 ±0.6 mm; other measured dimensions from sample test: 31.13 mm,13.02 mm (typical average value).

Electrical Characteristics

Frequency Minimum Impedance
25 MHz ≥30 Ω
100 MHz ≥70 Ω

Average sample measured result: Z@25MHz=45.8Ω; Z@100MHz=97.0Ω (10‑samples average).

Test Condition

  • Test instrument: E4991A + 16194A
  • Test frequency range: 1 MHz ~ 500 MHz
  • Test winding fixture: Ø0.5×0.5TS×100L(mm)

Material Properties

  • High resistivity >10⁵ Ω·m
  • Working Curie temperature, high saturation magnetization for EMI ferrite material.

Appearance Criteria

Defect area ≤6 mm² (breakage limit standard).

Applications

  • smart home controllers
  • charging devices
  • industrial control modules
  • signal transmission lines

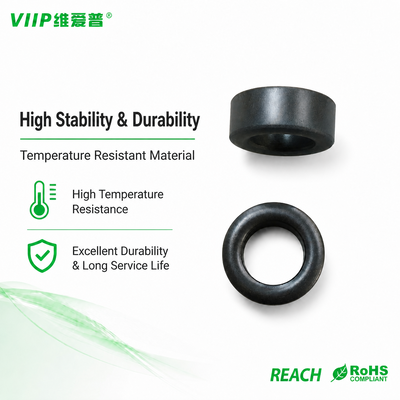

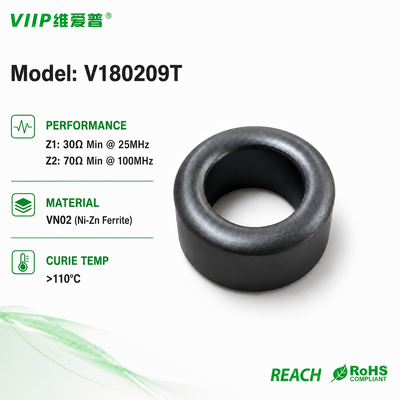

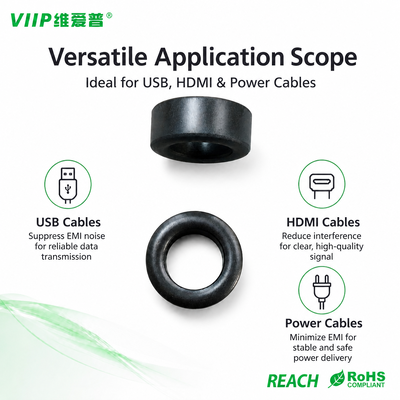

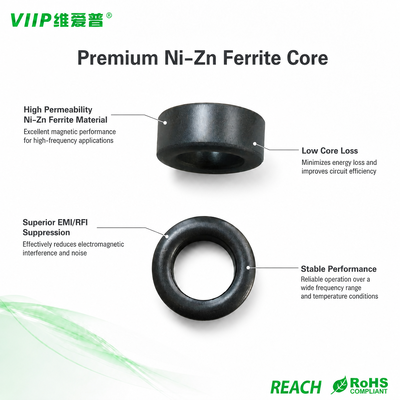

Product Images


V180209T Soft Ferrite Magnetic Core for Common Mode Inductor EMI Filtering Industrial Electronics

V180209T Soft Ferrite Magnetic Core for Common Mode Inductor EMI Filtering Industrial Electronics

V180209T Soft Ferrite Magnetic Core for Common Mode Inductor EMI Filtering Industrial Electronics

V180209T Soft Ferrite Magnetic Core for Common Mode Inductor EMI Filtering Industrial Electronics

V180209T Soft Ferrite Magnetic Core for Common Mode Inductor EMI Filtering Industrial Electronics

FAQs

Can I get free samples for ferrite cores?
Yes, we can provide free ferrite core samples for your performance testing and evaluation.
What is your regular order requirement for ferrite cores?
Normally orders shall follow our minimum package quantity.
Does the free-sample policy mean I can place small-quantity orders below MOQ for all orders?
Free samples are for performance verification only. Except for your first trial order, formal repeat orders need to follow our minimum package quantity requirement.
What certificates do your ferrite cores have? Can you provide approval sheets and test reports?
Our ferrite cores comply with RoHS and REACH standards. We are able to supply PDF approval sheets together with batch test reports for your project certification review.
What is the typical production lead-time for ferrite core mass orders?
Production lead-time is typically 2-5 weeks, depending on order quantity and stock availability. The exact lead-time will be confirmed before you place the formal order.
Can you customize impedance, dimension or material for ferrite cores?
Custom service is available according to your technical specifications. A specific MOQ will be applied for customized ferrite core projects.
Can you offer EMC technical support when I use your ferrite cores in my projects?
Yes. Our engineering team can offer basic EMC technical consultation to support your noise-suppression design and debugging.
