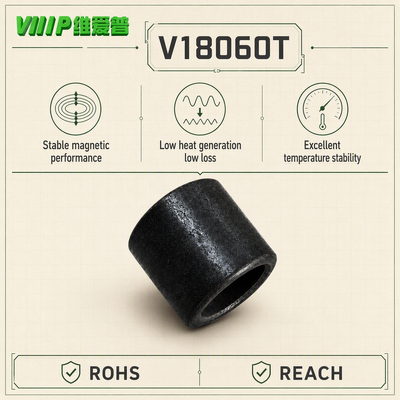

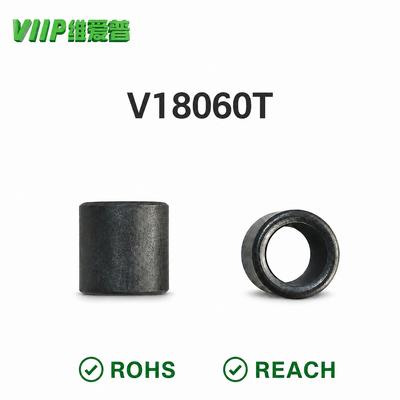

Product Description:

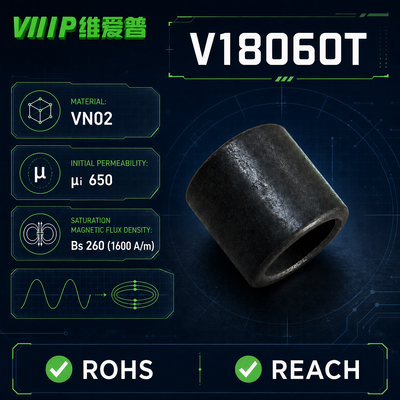

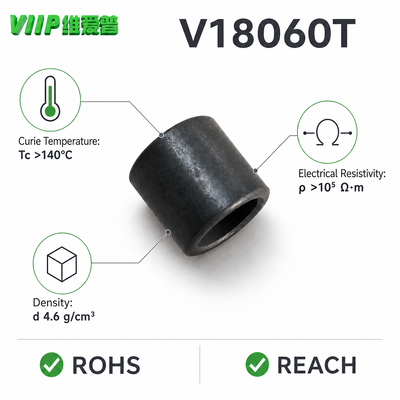

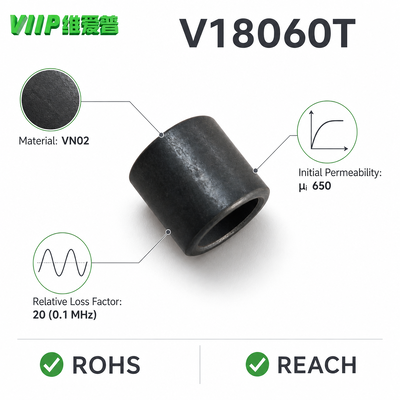

This toroidal ferrite magnetic ring is manufactured from premium VN02 manganese‑zinc soft ferrite material, with initial permeability of 650±20%. It features saturation magnetic flux density of 260 MT at 1600A/m, Curie temperature above 140℃ and high electrical resistivity over 10⁵ Ω·m. The relative loss factor is 20 under 0.1 MHz working condition, together with low temperature coefficient ranging from 2‑5 ×10⁻⁶, delivering stable magnetic performance under varying ambient temperature.

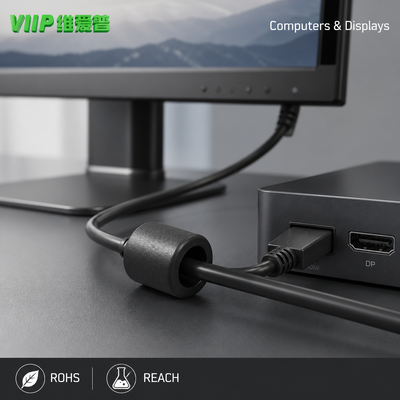

Specially engineered for cable EMI noise suppression, this ferrite core effectively absorbs high‑frequency common‑mode interference on power cords and multi‑core wire harnesses. It restrains conducted interference and electromagnetic radiation, helping end‑products satisfy EMC standards such as EN55014 and GB9254. Low material loss minimizes heat accumulation during long‑time continuous operation, improving component reliability for long‑duration equipment operation.
Precision‑sintered with stable dimensional tolerance, the magnetic ring supports convenient cable threading and automated harness assembly for mass production. Strict multi‑item magnetic‑parameter inspection is implemented for each production batch to secure consistent product performance. Suitable for household appliances, power adapters, chargers and industrial control wiring systems. We provide sample evaluation, bulk‑volume delivery as well as customized service for special dimension and magnetic parameters to meet diversified EMC design requirements.

Features:

• Product Name: EMC EMI Filter
• High performance EMC ElectroMagnetic Interference Filter designed to reduce electromagnetic noise.
• Coercivity: 35, ensuring stable magnetic properties for effective filtering.
• Density: 4.6, providing compact and efficient EMI suppression.
• Relative Temperature Coefficient: 2~5, maintaining consistent performance across temperature variations.
• Material: VN02, optimized for superior electromagnetic interference attenuation.
• Initial Permeability: 650, allowing excellent magnetic flux conduction.
• Reliable EMC ElectroMagnetic Interference Filter for a wide range of electronic applications.

Technical Parameters:

Applications:

The Weiaipu V18060T EMI Suppression Filter is a high-performance EMC ElectroMagnetic Interference Filter designed to effectively reduce electromagnetic interference in a wide range of applications. Manufactured in China and certified with ROHS, this filter ensures compliance with environmental and safety standards, making it ideal for industries that demand reliable interference reduction solutions. With a minimum order quantity of 10 units and a competitive price of 3 USD per piece, the V18060T filter is both cost-effective and efficient for bulk procurement.
This Interference Reduction Filter is particularly suitable for electronic devices and systems prone to electromagnetic noise, such as communication equipment, medical instruments, automotive electronics, and industrial machinery. The V18060T model features a remanence value of 150, a density of 4.6, initial permeability of 650, and coercivity of 35, ensuring superior magnetic properties for enhanced EMI suppression performance. The core material VN02 contributes to its durability and effectiveness in minimizing electromagnetic disturbances.
Packaging details include 120 pieces per carton, facilitating easy storage and transportation. The typical delivery time is 4 to 6 weeks, with payment terms based on T/T, offering flexibility for business transactions. The Weiaipu EMC ElectroMagnetic Interference Filter is designed to be integrated seamlessly into various electronic assemblies, providing robust interference mitigation that improves overall device reliability and performance.
Typical application occasions for the V18060T EMI Suppression Filter include power supply circuits, consumer electronics, industrial control systems, and automotive electronic modules. It is essential in environments where electromagnetic interference can cause malfunction or degradation of signal integrity. Furthermore, the filter is widely used in household appliances, LED lighting systems, and renewable energy equipment to ensure stable operation free from electromagnetic disruptions.
In summary, the Weiaipu V18060T EMC ElectroMagnetic Interference Filter is an indispensable component for engineers and manufacturers seeking efficient EMI suppression solutions. Its advanced material characteristics, compliance certifications, and versatile application scenarios make it a preferred choice for ensuring electromagnetic compatibility and enhancing the performance and longevity of electronic devices.

Customization:

Weiaipu offers customized EMC ElectroMagnetic Interference Filter solutions with the model number V18060T, designed to meet your specific requirements for EMI Interference Suppression Filter applications. Manufactured in China and certified with ROhs, this EMC ElectroMagnetic Interference Filter ensures high quality and reliability.
The product features a density of 4.6, remanence of 150, and an initial permeability of 650, made from premium VN02 material with a relative temperature coefficient ranging from 2 to 5. Weiaipu guarantees a minimum order quantity of 10 units, priced competitively at 3 USD each.
Packaging is handled efficiently with 120PCS per carton to ensure safe delivery. The estimated delivery time is between 4 to 6 weeks, with payment terms based on T/T. Choose Weiaipu for tailored EMC ElectroMagnetic Interference Filter solutions that effectively suppress EMI interference for your applications.

FAQ:

Q1: What is the brand and model number of this EMC EMI Filter?
A1: The EMC EMI Filter is manufactured by Weiaipu and the model number is V18060T.
Q2: Where is the EMC EMI Filter made?
A2: This product is made in China.
Q3: Is the EMC EMI Filter certified?
A3: Yes, the EMC EMI Filter V18060T is ROHS certified.
Q4: What is the minimum order quantity and the price per unit?
A4: The minimum order quantity is 10 units, and the price is 3 USD per unit.
Q5: How is the product packaged and what is the delivery time?
A5: The product is packaged with 120 pieces per carton. The delivery time is typically 4-6 weeks after order confirmation.
Q6: What are the payment terms for purchasing this EMC EMI Filter?
A6: The payment terms are T/T (Telegraphic Transfer).
