Product Description:

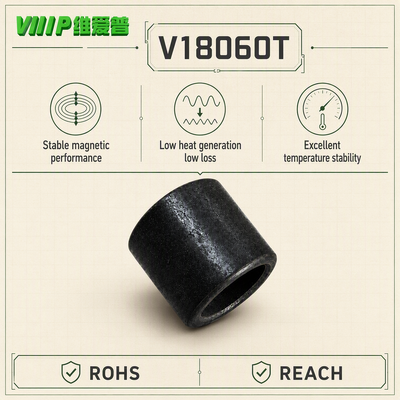

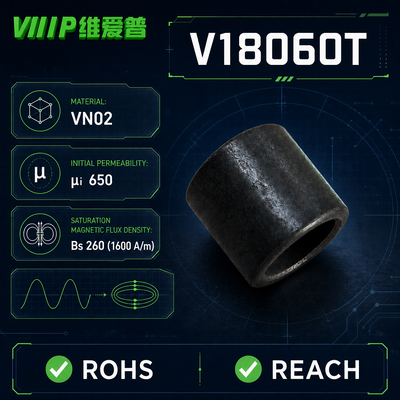

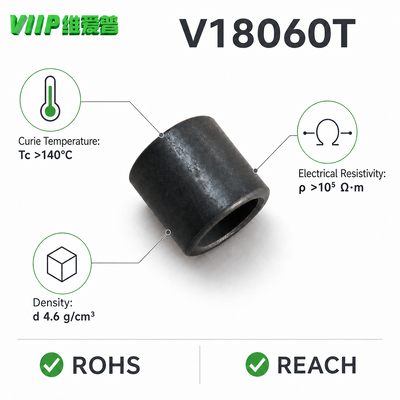

This toroidal ferrite magnetic ring is manufactured from premium VN02 manganese‑zinc soft ferrite material, with initial permeability of 650±20%. It features saturation magnetic flux density of 260 MT at 1600A/m, Curie temperature above 140℃ and high electrical resistivity over 10⁵ Ω·m. The relative loss factor is 20 under 0.1 MHz working condition, together with low temperature coefficient ranging from 2‑5 ×10⁻⁶, delivering stable magnetic performance under varying ambient temperature.

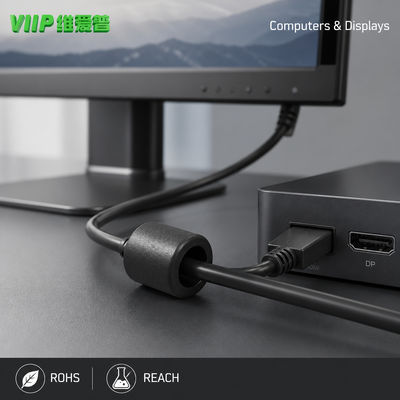

Specially engineered for cable EMI noise suppression, this ferrite core effectively absorbs high‑frequency common‑mode interference on power cords and multi‑core wire harnesses. It restrains conducted interference and electromagnetic radiation, helping end‑products satisfy EMC standards such as EN55014 and GB9254. Low material loss minimizes heat accumulation during long‑time continuous operation, improving component reliability for long‑duration equipment operation.

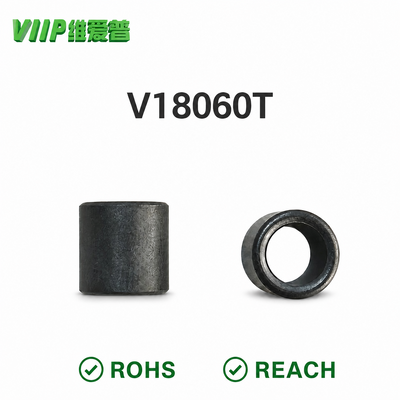

Precision‑sintered with stable dimensional tolerance, the magnetic ring supports convenient cable threading and automated harness assembly for mass production. Strict multi‑item magnetic‑parameter inspection is implemented for each production batch to secure consistent product performance. Suitable for household appliances, power adapters, chargers and industrial control wiring systems. We provide sample evaluation, bulk‑volume delivery as well as customized service for special dimension and magnetic parameters to meet diversified EMC design requirements.

Features:

• Product Name: EMC EMI Filter
• Coercivity: 35
• Remanence: 150
• Relative Temperature Coefficient: 2~5
• Material: VN02
• Initial Permeability: 650
• Effective EMI Suppression Filter for reducing electromagnetic interference
• High-performance EMI Interference Suppression Filter to ensure signal integrity
• Reliable EMI Suppression Filter designed for various electronic applications

Technical Parameters:

Applications:

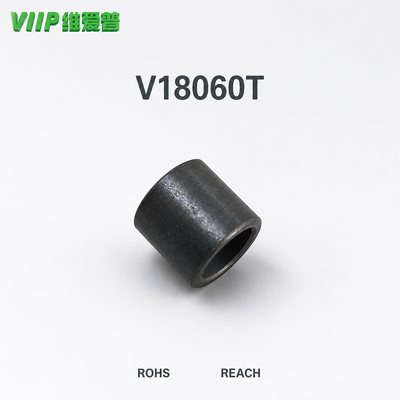

The Weiaipu V18060T EMC ElectroMagnetic Interference Filter is an advanced EMI Suppression Filter designed to effectively reduce electromagnetic interference in various electronic devices and systems. Manufactured in China and certified with ROHS compliance, this product ensures high quality and environmental safety. With a minimum order quantity of 10 units and an affordable price of 3 USD per piece, it is an ideal choice for both small and large scale applications. The packaging includes 120 pieces per carton, facilitating bulk orders, and delivery is expected within 4-6 weeks. Payment terms are flexible, with T/T accepted.

The V18060T model features excellent magnetic properties including a remanence of 150, density of 4.6, coercivity of 35, and an initial permeability of 650, making it highly efficient in filtering unwanted EMI signals. Its relative temperature coefficient ranges from 2 to 5, ensuring stable performance under varying thermal conditions. These characteristics make the Weiaipu EMC EMI Filter a reliable solution for maintaining signal integrity and enhancing electromagnetic compatibility in diverse environments.

Typical application occasions for the Weiaipu EMI Interference Suppression Filter include industrial automation systems, medical devices, communication equipment, consumer electronics, and automotive electronics. In industrial settings, it helps protect sensitive control systems from EMI disturbances, which can otherwise cause malfunctions or data corruption. In medical instrumentation, the filter ensures compliance with strict electromagnetic standards to avoid interference that could affect diagnostic accuracy or device functionality.

Communication networks and broadcasting equipment benefit from the EMI Suppression Filter by minimizing signal noise and cross-talk, thereby improving transmission quality and reducing downtime caused by electromagnetic interference. Consumer electronic devices such as televisions, computers, and audio equipment also utilize this filter to enhance performance and comply with regulatory electromagnetic emission limits. In automotive electronics, the filter contributes to the reliability of critical systems like engine control units and infotainment devices, which operate in environments with substantial electromagnetic noise.

Overall, the Weiaipu V18060T EMC ElectroMagnetic Interference Filter is ideally suited for scenarios requiring robust EMI mitigation. Its proven performance, cost-effectiveness, and compliance with international standards make it an excellent choice for engineers and manufacturers aiming to improve electromagnetic compatibility and ensure smooth operation of electronic systems in a wide range of industries.

Customization:

Weiaipu offers customized EMC ElectroMagnetic Interference Filter solutions with the model number V18060T, designed to provide excellent EMI Suppression Filter performance. Manufactured in China and certified with ROHS, this EMC ElectroMagnetic Interference Filter ensures compliance with international standards.

Our product features an initial permeability of 650 and remanence of 150, utilizing high-quality VN02 material with a density of 4.6. The relative temperature coefficient ranges between 2 to 5, guaranteeing stable performance under varying conditions.

The minimum order quantity is 10 units, priced at 3 USD each. Packaging is convenient with 120 pieces per carton. Delivery time is estimated between 4 to 6 weeks, and payments are accepted via T/T.

Choose Weiaipu's EMC ElectroMagnetic Interference Filter V18060T for reliable and efficient EMI Suppression Filter customization tailored to your specific requirements.

FAQ:

Q1: What is the brand and model number of this EMC EMI Filter?

A1: The brand name is Weiaipu, and the model number is V18060T.

Q2: Where is the EMC EMI Filter manufactured?

A2: This EMC EMI Filter is made in China.

Q3: Does the product have any certifications?

A3: Yes, the EMC EMI Filter is certified with ROHS compliance.

Q4: What is the minimum order quantity and the price per unit?

A4: The minimum order quantity is 10 units, and the price is 3 USD per unit.

Q5: How is the product packaged and what is the delivery time?

A5: The EMC EMI Filter is packaged 120 pieces per carton, and the delivery time is approximately 4-6 weeks.

Q6: What are the payment terms for purchasing this product?

A6: The payment terms are T/T (Telegraphic Transfer).
