VIIP V18038 EMI Ferrite Core 26mm Size, RoHS REACH Certified EMC Anti‑Interference Magnetic Core For Electronic Noise Suppression

Brand Name: Weiaipu
Model Number: V18038
MOQ: 72
Price: USD7.75
Packaging Details: Carton
Payment Terms: T/T
Detail Information
Product Description
Detail Information
Place of Origin:
China
Certification:
ROHS REACH
Highlight:

EMI ferrite core 26mm size

,

RoHS certified EMC magnetic core

,

electronic noise suppression ferrite core

Product Description
VIIP V18038 EMI Ferrite Core 26mm Size
Factory Supply V18038 Soft Ferrite Core 26mm, High Impedance EMC EMI Noise Filter Magnetic Core, RoHS & REACH Certified
Product Overview
VIIP V18038 split clamp-style ferrite core is purpose-built for on-site EMC troubleshooting and noise suppression on pre-routed large-size cables. Unlike solid toroidal cores requiring cable threading, this split ferrite design clamps directly onto finished wiring without cable disassembly or re-termination.
Characterized by proven broadband impedance performance across 1-500 MHz, this core delivers minimum impedance of 155 Ω at 25 MHz and 195 Ω at 100 MHz. It serves as a practical corrective component for projects facing unexpected high-frequency conducted and radiated interference, fully compliant with RoHS and REACH environmental requirements.
Key Features
  • Precision-calibrated split-gap tolerance maintains stable magnetic coupling, securing reliable EMI suppression performance under varying operating temperatures
  • High-density nickel-zinc ferrite material delivers superior broadband absorption, targeting high-frequency noise prevalent in industrial power and signal cables
Specifications
Item Parameter
Model V18038
Material Nickel-Zinc Soft Ferrite, Split-clamp type
Dimension B 26.0 mm, tolerance refer to test data
Dimension D 55.0 mm, tolerance refer to test data
Min. Impedance 155 Ω @ 25 MHz; 195 Ω @ 100 MHz
Test Equipment E4991A + 16194A
Test Frequency Range 1-500 MHz
Compliance RoHS, REACH
Note: Complete dimensional tolerances refer to original approval sheet Rev.4.0.
Applications
  • High-frequency noise damping for interconnection cabling of large-format industrial digital printing & imaging equipment
  • Noise suppression for external heavy-gauge wiring of port container handling and terminal automation machinery
Product Images

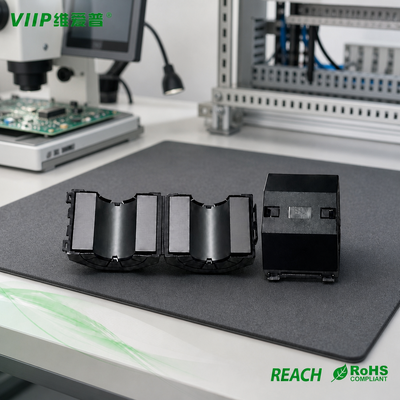

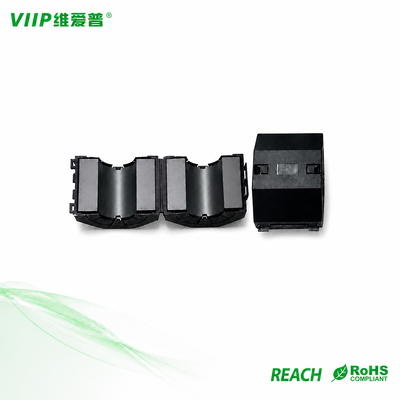

V18038 Ferrite Core front view

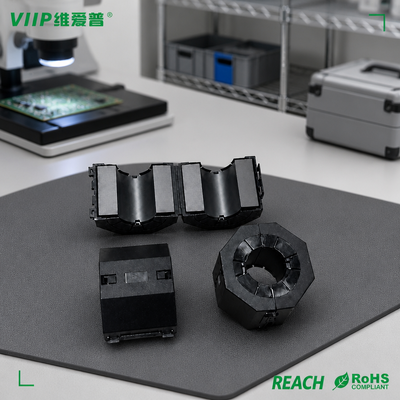

V18038 Ferrite Core side view

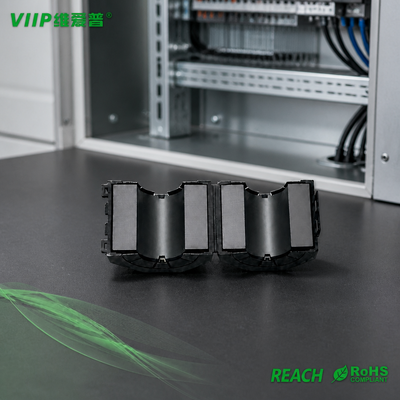

V18038 Ferrite Core installation demonstration

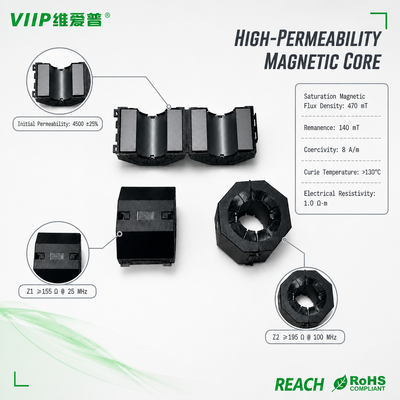

V18038 Ferrite Core technical specifications diagram
Frequently Asked Questions
Can I get free samples for ferrite rings and clamps?
Yes, we can provide free samples for our ferrite rings and clamps.
What is your regular order requirement for ferrite rings & clamps?
Normally orders shall follow our minimum package quantity. Exceptions are acceptable for your first trial order.
Does the free-sample policy mean I can place small-quantity orders below MOQ for all orders?
Free samples are for performance verification only. Except for your first order, formal repeat orders need to follow our minimum package quantity requirement.
What certificates do your ferrite cores and clamp-on ferrites have? Can you provide approval sheets?
Our ferrite & clamp-on ferrite comply with RoHS and REACH. We can provide PDF approval sheets (specification document) for your project review.
What is the typical production lead-time for ferrite and clamp-on ferrite mass orders?
Production lead-time is typically 2-5 weeks, depending on order quantity and stock availability. The exact lead-time will be confirmed prior to placing a formal order.
Can you customize impedance/size for ferrite cores and clamp-on ferrites?
Custom service is available upon your technical requirement, MOQ for customized items will apply.
Are clamp-on ferrite rings reusable after installation?
Yes, the snap-on design allows for easy removal and reinstallation, making them reusable.
