Factory Supply V18038 Soft Ferrite Core 26mm, High Impedance EMC EMI Noise Filter Magnetic Core, RoHS & REACH Certified

Brand Name:	Weiaipu
Model Number:	V18038
MOQ:	72
Price:	USD7.75
Packaging Details:	Carton
Payment Terms:	T/T

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

ROHS REACH

Highlight:

Soft Ferrite Core 26mm EMC filter

High Impedance EMI Noise Filter Core

RoHS certified Ferrite Magnetic Core

Product Description

Factory Supply V18038 Soft Ferrite Core 26mm, High Impedance EMC EMI Noise Filter Magnetic Core, RoHS & REACH Certified

Product Overview

VIIP V18038 split clamp-style ferrite core is purpose-built for on-site EMC troubleshooting and noise suppression on pre-routed large-size cables. Unlike solid toroidal cores requiring cable threading, this split ferrite design clamps directly onto finished wiring without cable disassembly or re-termination.

Characterized by proven broadband impedance performance across 1-500 MHz, this core delivers minimum impedance of 155 Ω at 25 MHz and 195 Ω at 100 MHz. It serves as a practical corrective component for projects facing unexpected high-frequency conducted and radiated interference, fully compliant with RoHS and REACH environmental requirements.

Key Features

Multi-stage visual sorting eliminates parts with surface flaws, minimizing defective components integrated into customer end-systems
Delivers notable attenuation of coupled common-mode noise, mitigating high-frequency disturbances that degrade signal integrity along heavy-duty wiring paths
In-house performance sampling validates impedance characteristics across 1-500 MHz, ensuring consistent electrical behaviour batch over batch
Optimized housing structural rigidity withstands mechanical stress during logistics and field fitting, preserving core geometry and filtering capability for large-diameter cables
Quick-clip assembly architecture adapts to pre-terminated large cables; cable stripping or soldering steps are entirely eliminated to optimize production throughput

Specifications

Item	Parameter
Model	V18038
Material	Nickel-Zinc Soft Ferrite, Split-clamp type
Dimension B	26.0 mm, tolerance refer to test data
Dimension D	55.0 mm, tolerance refer to test data
Min. Impedance	155 Ω @ 25 MHz; 195 Ω @ 100 MHz
Test Equipment	E4991A + 16194A
Test Frequency Range	1-500 MHz
Compliance	RoHS, REACH

Note: Complete dimensional tolerances refer to original approval sheet Rev.4.0.

Applications

EMI noise reduction for heavy-duty connection cables of large industrial robot auxiliary sensor assemblies
Common-mode interference filtering for power-signal harnesses of onboard high-power control modules for marine equipment
High-frequency noise damping for interconnection cabling of large-scale laboratory analytical and measuring apparatus
Noise suppression for external heavy wiring of distributed remote IO modules in heavy-duty field-deployed automation systems
EMC optimization for thick data & power cables of large-size smart logistics sorting and conveying equipment
Interference attenuation for peripheral heavy-load cables of large-scale solar monitoring and collection terminals
EMC noise mitigation for power cables of industrial cabinet and large-size automation control equipment

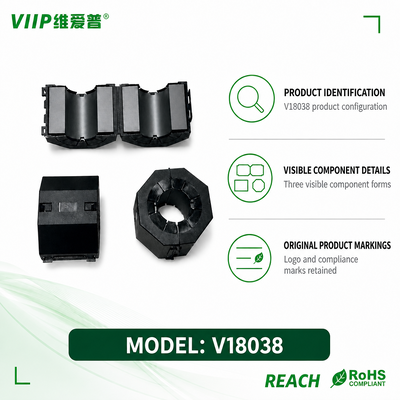

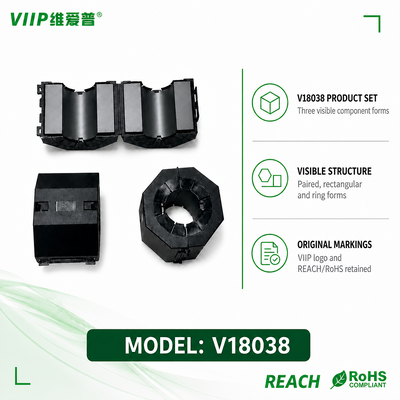

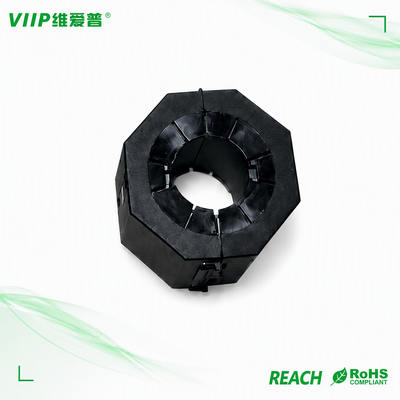

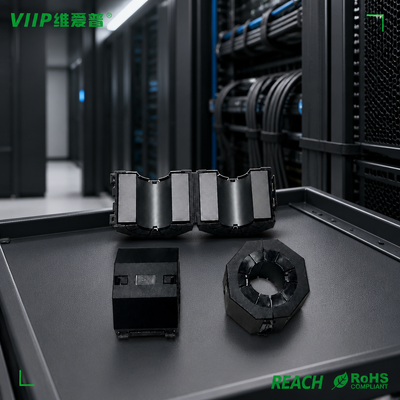

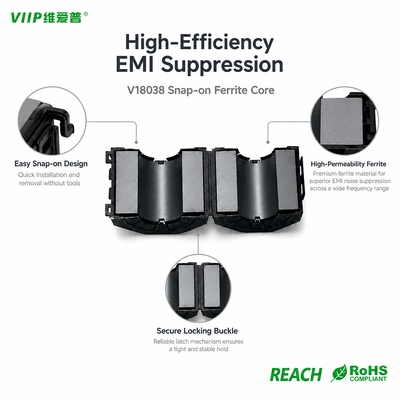

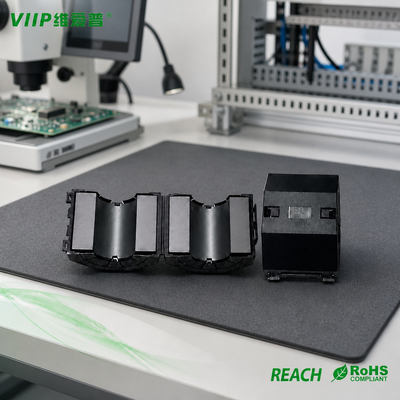

Product Images

Frequently Asked Questions

Can I get free samples for ferrite rings and clamps?

Yes, we can provide free samples for our ferrite rings and clamps.

What is your regular order requirement for ferrite rings & clamps?

Normally orders shall follow our minimum package quantity. Exceptions are acceptable for your first trial order.

Does the free-sample policy mean I can place small-quantity orders below MOQ for all orders?

Free samples are for performance verification only. Except for your first order, formal repeat orders need to follow our minimum package quantity requirement.

What certificates do your ferrite cores and clamp-on ferrites have? Can you provide approval sheets?

Our ferrite & clamp-on ferrite comply with RoHS and REACH. We can provide PDF approval sheets (specification document) for your project review.

What is the typical production lead-time for ferrite and clamp-on ferrite mass orders?

Production lead-time is typically 2-5 weeks, depending on order quantity and stock availability. The exact lead-time will be confirmed prior to placing a formal order.

Can you customize impedance/size for ferrite cores and clamp-on ferrites?

Custom service is available upon your technical requirement, MOQ for customized items will apply.

Are clamp-on ferrite rings reusable after installation?

Yes, the snap-on design allows for easy removal and reinstallation, making them reusable.
