Factory Supply V180215H Ferrite Ring Core Anti‑Interference EMI Filter Magnetic Toroid Core
  • Name
  • Name
  • Name
  • Name
  • Name
  • Name
  • Name

Factory Supply V180215H Ferrite Ring Core Anti‑Interference EMI Filter Magnetic Toroid Core

Brand Name: Weiaipu VIIP
Model Number: V180215H
MOQ: 2040
Price: 0.046USD
Packaging Details: neutral
Detail Information
Product Description
Detail Information
Certification:
RoHS REACH
Coercivity:
35
Mate-rial:
VN02
Initial Permeability:
650
Density:
4.6
Relative Loss Factor:
20(0.1MHz)
Reman-ence:
150
Highlight:

Ferrite toroidal core Ui 650

,

High Curie temperature magnetic ring

,

EMC EMI filter magnetic component

Product Description

Product Introduction

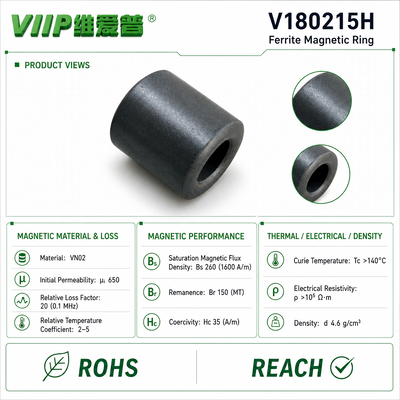

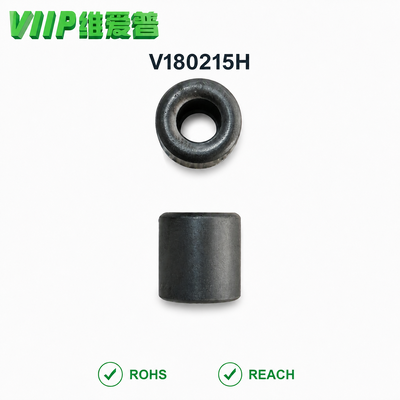

This ferrite magnetic ring is manufactured from VN02 grade ferrite material with an initial permeability of 650. It features low loss factor and superior high‑frequency EMI suppression performance. Physical dimensions: outer diameter 14.2±0.5 mm, height 15.0±0.5 mm, inner diameter 7.2±0.4 mm. Benefiting from Curie temperature above 140℃ and high electrical resistivity, it keeps stable magnetic properties under working conditions. Strict dimensional tolerance ensures stable batch‑to‑batch consistency for EMC filtering solutions. Custom specifications are available upon request.

Factory Supply V180215H Ferrite Ring Core Anti‑Interference EMI Filter Magnetic Toroid Core

Scope of Application

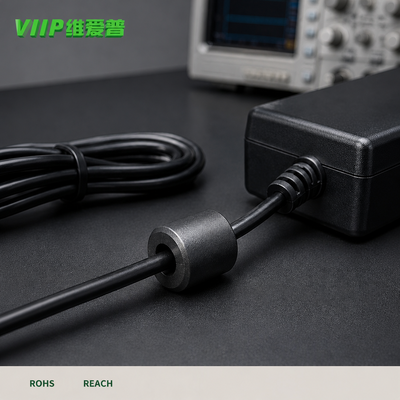

Widely applied in power adapters, switching power supplies, home appliances, industrial control units, signal cables, data lines, wire harnesses, sensors and communication equipment.

Factory Supply V180215H Ferrite Ring Core Anti‑Interference EMI Filter Magnetic Toroid Core

Purpose

It is designed to suppress high‑frequency electromagnetic interference, filter common‑mode noise on cables and harnesses, reduce signal distortion, enhance equipment anti‑interference capacity, and assist finished products to pass EMC compliance tests.
Factory Supply V180215H Ferrite Ring Core Anti‑Interference EMI Filter Magnetic Toroid Core

FAQ

  1. Q: What factors will affect the filtering performance of ferrite rings? A: Material permeability, operating frequency, wire winding turns, installation position and ambient temperature will all influence the final filtering effect.
  2. Q: What is the difference between nickel‑zinc and manganese‑zinc ferrite rings? A: Nickel‑zinc ferrite suits high‑frequency interference suppression. Manganese‑zinc ferrite features higher permeability and works better for low‑medium frequency scenarios.
  3. Q: Will magnetic rings generate extra heat during operation? A: Slight heat may occur under high‑current high‑frequency working conditions. Choose proper material and size to avoid overheating.
  4. Q: Can ferrite magnetic rings work under high‑temperature environment? A: It depends on Curie temperature of selected material. Performance will drop sharply once temperature exceeds Curie point.
  5. Q: Is surface coating necessary for ferrite magnetic rings? A: Coating can prevent chipping and short‑circuit risk. It is recommended for products with strict assembly requirements.
Tags:

250V EMC Emi Filter 150KHZ

110V 250V 20A EMC EMI Filter

Single Phase RFI Filter CE UL TUV

Good price online

Products Details

Home > Products >
EMC EMI Filter
>
Factory Supply V180215H Ferrite Ring Core Anti‑Interference EMI Filter Magnetic Toroid Core
All Category

EMC EMI Filter

Single Phase EMI Filter

3 Phase EMI Filter

Ferrite Rings Around Cables

DC EMI Filters

AC EMI Filter

IEC EMI Filter

Military EMI Filters

Inverter EMI Filter

PCB Low Pass Filter

EMI Suppression Filter

Clip On Ferrite Core

Snap On Ferrite Choke

EMI Ferrite Core

Flat Ferrite Core
Factory Supply V180215H Ferrite Ring Core Anti‑Interference EMI Filter Magnetic Toroid Core
  • Name
  • Name
  • Name
  • Name
  • Name
  • Name
  • Name

Factory Supply V180215H Ferrite Ring Core Anti‑Interference EMI Filter Magnetic Toroid Core

Brand Name: Weiaipu VIIP
Model Number: V180215H
MOQ: 2040
Price: 0.046USD
Packaging Details: neutral
Detail Information
Product Description
Detail Information
Brand Name:
Weiaipu VIIP
Certification:
RoHS REACH
Model Number:
V180215H
Coercivity:
35
Mate-rial:
VN02
Initial Permeability:
650
Density:
4.6
Relative Loss Factor:
20(0.1MHz)
Reman-ence:
150
Minimum Order Quantity:
2040
Price:
0.046USD
Packaging Details:
neutral
Delivery Time:
4-6 Weeks
Highlight:

Ferrite toroidal core Ui 650

,

High Curie temperature magnetic ring

,

EMC EMI filter magnetic component

Product Description

Product Introduction

This ferrite magnetic ring is manufactured from VN02 grade ferrite material with an initial permeability of 650. It features low loss factor and superior high‑frequency EMI suppression performance. Physical dimensions: outer diameter 14.2±0.5 mm, height 15.0±0.5 mm, inner diameter 7.2±0.4 mm. Benefiting from Curie temperature above 140℃ and high electrical resistivity, it keeps stable magnetic properties under working conditions. Strict dimensional tolerance ensures stable batch‑to‑batch consistency for EMC filtering solutions. Custom specifications are available upon request.

Factory Supply V180215H Ferrite Ring Core Anti‑Interference EMI Filter Magnetic Toroid Core

Scope of Application

Widely applied in power adapters, switching power supplies, home appliances, industrial control units, signal cables, data lines, wire harnesses, sensors and communication equipment.

Factory Supply V180215H Ferrite Ring Core Anti‑Interference EMI Filter Magnetic Toroid Core

Purpose

It is designed to suppress high‑frequency electromagnetic interference, filter common‑mode noise on cables and harnesses, reduce signal distortion, enhance equipment anti‑interference capacity, and assist finished products to pass EMC compliance tests.
Factory Supply V180215H Ferrite Ring Core Anti‑Interference EMI Filter Magnetic Toroid Core

FAQ

  1. Q: What factors will affect the filtering performance of ferrite rings? A: Material permeability, operating frequency, wire winding turns, installation position and ambient temperature will all influence the final filtering effect.
  2. Q: What is the difference between nickel‑zinc and manganese‑zinc ferrite rings? A: Nickel‑zinc ferrite suits high‑frequency interference suppression. Manganese‑zinc ferrite features higher permeability and works better for low‑medium frequency scenarios.
  3. Q: Will magnetic rings generate extra heat during operation? A: Slight heat may occur under high‑current high‑frequency working conditions. Choose proper material and size to avoid overheating.
  4. Q: Can ferrite magnetic rings work under high‑temperature environment? A: It depends on Curie temperature of selected material. Performance will drop sharply once temperature exceeds Curie point.
  5. Q: Is surface coating necessary for ferrite magnetic rings? A: Coating can prevent chipping and short‑circuit risk. It is recommended for products with strict assembly requirements.
Tags:

250V EMC Emi Filter 150KHZ

110V 250V 20A EMC EMI Filter

Single Phase RFI Filter CE UL TUV
