V180215H VN02 Magnetic Toroid Core Ui 650 Stable Temperature Performance for EMC Compliance Industrial Equipment Filtering

All Category

Flat Ferrite Core

Miss. Vicky Lee

vip6@szviip.com

19925448748

19925448748

Contact Now

V180215H VN02 Magnetic Toroid Core Ui 650 Stable Temperature Performance for EMC Compliance Industrial Equipment Filtering

Brand Name:	Weiaipu VIIP
Model Number:	V180215H
MOQ:	2040
Price:	0.046USD
Packaging Details:	neutral

Detail Information

Product Description

Detail Information

Certification:

RoHS REACH

Initial Permeability:

Relative Loss Factor:

20(0.1MHz)

Density:

Mate-rial:

Coercivity:

Reman-ence:

Highlight:

VN02 Magnetic Toroid Core

EMC compliance industrial filter

Stable temperature performance toroid core

Product Description

Product Introduction

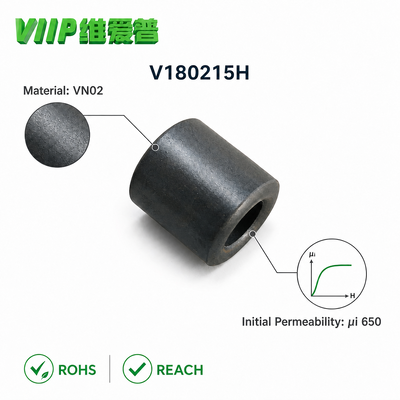

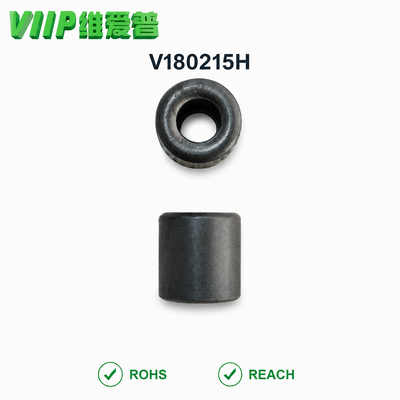

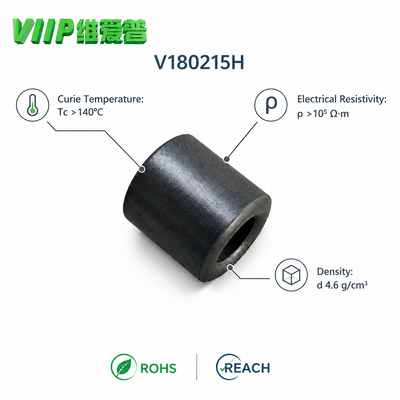

This ferrite magnetic ring is manufactured from VN02 grade ferrite material with an initial permeability of 650. It features low loss factor and superior high‑frequency EMI suppression performance. Physical dimensions: outer diameter 14.2±0.5 mm, height 15.0±0.5 mm, inner diameter 7.2±0.4 mm. Benefiting from Curie temperature above 140℃ and high electrical resistivity, it keeps stable magnetic properties under working conditions. Strict dimensional tolerance ensures stable batch‑to‑batch consistency for EMC filtering solutions. Custom specifications are available upon request.

V180215H VN02 Magnetic Toroid Core Ui 650 Stable Temperature Performance for EMC Compliance Industrial Equipment Filtering

Scope of Application

Widely applied in power adapters, switching power supplies, home appliances, industrial control units, signal cables, data lines, wire harnesses, sensors and communication equipment.

V180215H VN02 Magnetic Toroid Core Ui 650 Stable Temperature Performance for EMC Compliance Industrial Equipment Filtering

Purpose

It is designed to suppress high‑frequency electromagnetic interference, filter common‑mode noise on cables and harnesses, reduce signal distortion, enhance equipment anti‑interference capacity, and assist finished products to pass EMC compliance tests.
V180215H VN02 Magnetic Toroid Core Ui 650 Stable Temperature Performance for EMC Compliance Industrial Equipment Filtering

FAQ

Q: How many turns should I wind the cable on the magnetic ring? A: More turns bring better filtering effect within limits. Normally 2‑5 turns for common‑mode noise suppression, subject to actual installation space.
Q: What causes cracking of ferrite magnetic rings? A: Hard impact, improper pressing during assembly, thermal shock and mechanical stress are main reasons for cracking.
Q: Can magnetic rings eliminate both common‑mode and differential‑mode noise? A: Most toroidal ferrite rings mainly suppress common‑mode noise. Special structure or matched components are required for differential‑mode noise.
Q: What is the service life of ferrite magnetic rings? A: Under rated temperature and load, ferrite rings have long service life with no obvious aging, if no physical damage occurs.
Q: Can I use multiple magnetic rings together for better noise reduction? A: Yes. Stacking several magnetic rings can improve filtering performance, but you need to consider space and cost.

Tags:

250V EMC Emi Filter 150KHZ

110V 250V 20A EMC EMI Filter

Single Phase RFI Filter CE UL TUV

Products Details

Home > Products >

EMC EMI Filter

V180215H VN02 Magnetic Toroid Core Ui 650 Stable Temperature Performance for EMC Compliance Industrial Equipment Filtering

All Category

EMC EMI Filter

Single Phase EMI Filter

3 Phase EMI Filter

Ferrite Rings Around Cables

DC EMI Filters

AC EMI Filter

IEC EMI Filter

Military EMI Filters

Inverter EMI Filter

PCB Low Pass Filter

EMI Suppression Filter

Clip On Ferrite Core

Snap On Ferrite Choke

EMI Ferrite Core

Flat Ferrite Core

V180215H VN02 Magnetic Toroid Core Ui 650 Stable Temperature Performance for EMC Compliance Industrial Equipment Filtering

Brand Name:	Weiaipu VIIP
Model Number:	V180215H
MOQ:	2040
Price:	0.046USD
Packaging Details:	neutral

Detail Information

Product Description

Detail Information

Brand Name:

Weiaipu VIIP

Certification:

RoHS REACH

Model Number:

V180215H

Initial Permeability:

650

Relative Loss Factor:

20(0.1MHz)

Density:

4.6

Mate-rial:

VN02

Coercivity:

Reman-ence:

150

Minimum Order Quantity:

2040

Price:

0.046USD

Packaging Details:

neutral

Highlight:

VN02 Magnetic Toroid Core

EMC compliance industrial filter

Stable temperature performance toroid core

Product Description

Product Introduction

V180215H VN02 Magnetic Toroid Core Ui 650 Stable Temperature Performance for EMC Compliance Industrial Equipment Filtering

Scope of Application

Widely applied in power adapters, switching power supplies, home appliances, industrial control units, signal cables, data lines, wire harnesses, sensors and communication equipment.

V180215H VN02 Magnetic Toroid Core Ui 650 Stable Temperature Performance for EMC Compliance Industrial Equipment Filtering

Purpose

FAQ

Q: How many turns should I wind the cable on the magnetic ring? A: More turns bring better filtering effect within limits. Normally 2‑5 turns for common‑mode noise suppression, subject to actual installation space.
Q: What causes cracking of ferrite magnetic rings? A: Hard impact, improper pressing during assembly, thermal shock and mechanical stress are main reasons for cracking.
Q: Can magnetic rings eliminate both common‑mode and differential‑mode noise? A: Most toroidal ferrite rings mainly suppress common‑mode noise. Special structure or matched components are required for differential‑mode noise.
Q: What is the service life of ferrite magnetic rings? A: Under rated temperature and load, ferrite rings have long service life with no obvious aging, if no physical damage occurs.
Q: Can I use multiple magnetic rings together for better noise reduction? A: Yes. Stacking several magnetic rings can improve filtering performance, but you need to consider space and cost.
