RoHS REACH VN09 V18029 Clip-on Ferrite Core 6mm, High Performance EMI Absorbing Magnetic Core for Industrial Electronic Devices

All Category

Flat Ferrite Core

Miss. Vicky Lee

vip6@szviip.com

19925448748

19925448748

Contact Now

RoHS REACH VN09 V18029 Clip-on Ferrite Core 6mm, High Performance EMI Absorbing Magnetic Core for Industrial Electronic Devices

Brand Name:	Weiaipu
Model Number:	V18029
MOQ:	405
Price:	USD0.4
Packaging Details:	Carton
Payment Terms:	T/T

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

ROHS REACH

Highlight:

Clip-on Ferrite Core 6mm

EMI absorbing magnetic core

Ferrite core for industrial electronics

Product Description

RoHS REACH VN09 V18029 Clip-on Ferrite Core 6mm, High Performance EMI Absorbing Magnetic Core for Industrial Electronic Devices

Product Overview

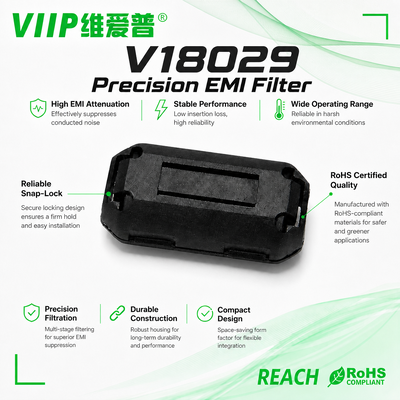

V18029 Anti-Interference Snap-on Ferrite Core 6mm ID

VIIP V18029 split clamp-style ferrite core is purpose-built for on-site EMC troubleshooting and noise suppression on pre-routed cables. Unlike solid toroidal cores requiring cable threading, this split ferrite design clamps directly onto finished wiring without cable disassembly or re-termination.

Characterized by proven broadband impedance performance across 1-500 MHz, this core delivers minimum impedance of 85 Ω at 25 MHz and 165Ω at 100 MHz. It serves as a practical corrective component for projects facing unexpected high-frequency conducted and radiated interference, fully compliant with RoHS and REACH environmental requirements.

Key Features

Strict quality gate for outward appearance, screening flawed units with surface fissures and edge damages to secure long‑term reliability for end equipment
Effectively dampens common‑mode high‑frequency interference coupled onto power supply lines and signal transmission harnesses
Batch‑wise sample evaluation is performed in‑house, verifying impedance performance throughout the full 1‑500 MHz test bandwidth
Improved structural toughness maintains complete geometry under rough handling, avoiding physical damage in shipment and on‑site assembly

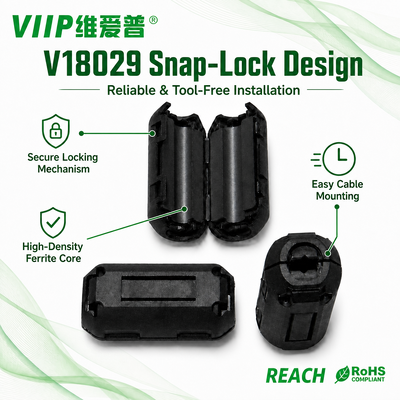

Clamp‑in place design enables hassle‑free fitting onto finished cables; no wire processing required to shorten overall assembly cycle and lower labour overhead

Specifications

Model	V18029
Material	Nickel-Zinc Soft Ferrite, Split-clamp type

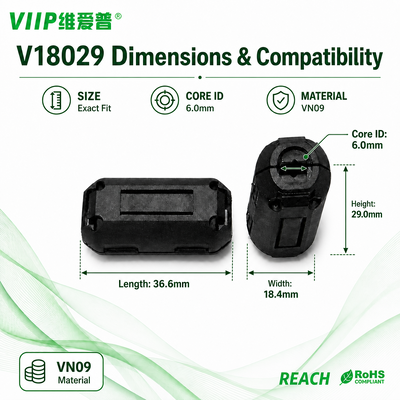

Dimension A (Outer Diameter)	17.8 mm, ±1.0 mm
Dimension B	16.8 mm, ±1.0 mm
Dimension C (Inner Bore ID)	6.0 mm, ±1.0 mm
Dimension D	36.6 mm, ±1.0 mm
Dimension E	3.0 mm, ±1.0 mm

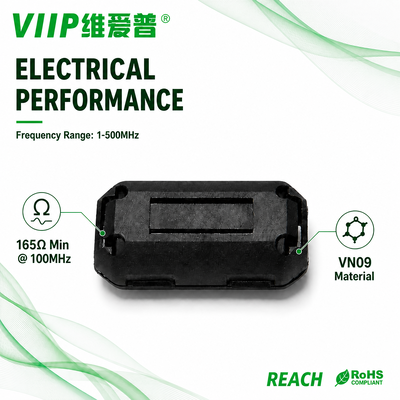

Min. Impedance	85 Ω @ 25 MHz；165 Ω @ 100 MHz
Test Equipment	E4991A
Test Frequency Range	1-500 MHz
Compliance	RoHS, REACH

Applications

High‑frequency interference attenuation for servo feedback encoder cables within automated production lines
Common‑mode noise filtering for onboard wiring of commercial display and digital signage equipment
EMI suppression for communication cabling used in environmental monitoring and weather‑sensing devices
Noise conditioning for interconnection wires of battery management peripheral auxiliary circuits
High‑frequency noise elimination for peripheral harnesses of office industrial printing hardware
Interference mitigation for signal lines of smart transportation roadside sensing terminals
EMC tuning for external connection cables of portable industrial inspection instruments

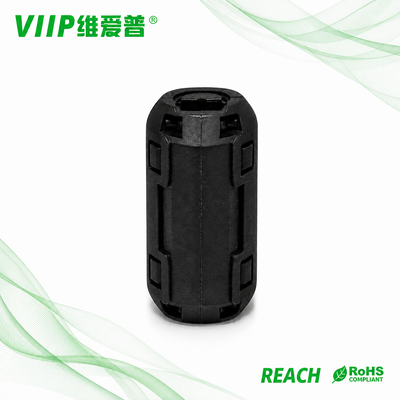

Product Images

Frequently Asked Questions

Can I get free samples for ferrite rings and clamps?

Yes, we can provide free samples for our ferrite rings and clamps.

What is your regular order requirement for ferrite rings & clamps?

Normally orders shall follow our minimum package quantity. Exceptions are acceptable for your first trial order.

Does the free-sample policy mean I can place small-quantity orders below MOQ for all orders?

Free samples are for performance verification only. Except for your first order, formal repeat orders need to follow our minimum package quantity requirement.

What certificates do your ferrite cores and clamp-on ferrites have? Can you provide approval sheets?

Our ferrite & clamp-on ferrite comply with RoHS and REACH. We can provide PDF approval sheets (specification document) for your project review.

What is the typical production lead-time for ferrite and clamp-on ferrite mass orders?

Production lead-time is typically 2-5 weeks, depending on order quantity and stock availability. The exact lead-time will be confirmed prior to placing a formal order.

Can you customize impedance/size for ferrite cores and clamp-on ferrites?

Custom service is available upon your technical requirement, MOQ for customized items will apply.

Are clamp-on ferrite rings reusable after installation?

Yes, the snap-on design allows for easy removal and reinstallation, making them reusable.
