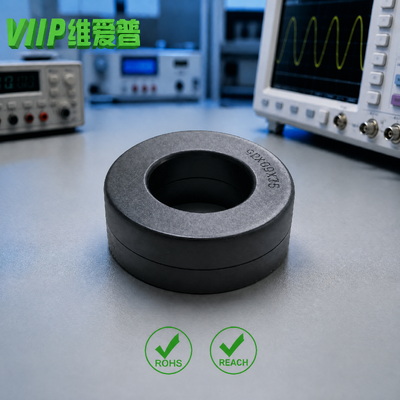

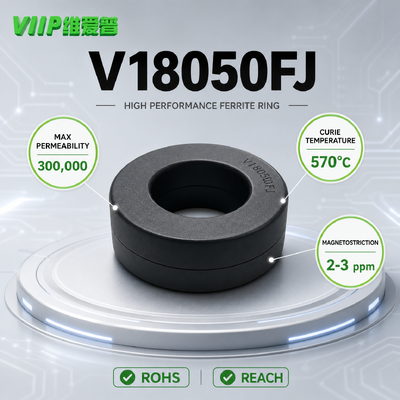

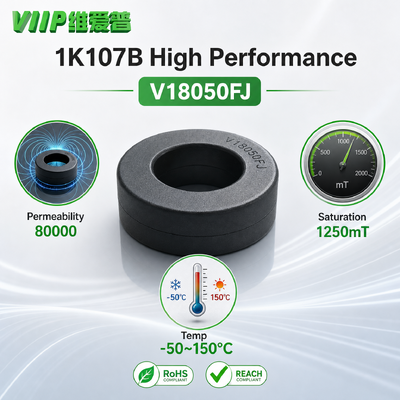

Produced by VIIP, the V18050FJ is a premium toroidal soft ferrite core made from grade 1K107B material. It boasts an initial permeability of 80000, alongside a maximum permeability of 300000 and saturation magnetic flux density of 1250 mT. Its high electrical resistivity of 0.11 Ω·m greatly mitigates eddy‑current losses. It operates reliably from ‑50℃ to 150℃ with a Curie temperature of 570℃ to deliver dependable high‑temperature performance. Rigorous visual defect screening ensures precise dimensions and stable performance across production batches. This toroidal magnetic core is well‑suited for fabricating common‑mode chokes, high‑permeability inductors and EMC noise‑reduction coils.

• EMC / EMI filter assemblies for power supplies
• Common‑mode choke coils used within industrial hardware
• Power filter hardware for large‑format display screens
• Power filtering assemblies for medical‑grade devices
• Switch‑mode power supplies, UPS and inverter equipment
• Anti‑interference parts for audio‑visual apparatus
• Signal conditioning circuits for test and measuring instruments


• Construct common‑mode chokes to curb common‑mode electromagnetic noise carried over power cables
• Produce high‑permeability inductors intended for low‑frequency signal filtration
• Reduce EMI interference inside AC‑DC power conversion circuits
• Enhance power‑signal cleanliness for large‑scale display, industrial and medical electronic hardware
• Act as bulk magnetic raw material for mass‑manufacturing anti‑interference coil components


Q: What is the practical meaning of permeability for ferrite toroidal cores? A: Permeability refers to a magnetic material’s capacity to boost magnetic flux. A higher initial permeability yields improved noise‑rejection effects within low‑frequency bands. Various material grades offer distinct permeability figures to match different application conditions.

Q: Is continuous high‑temperature operation available for the V18050FJ ferrite core? A: Its operational temperature spans ‑50℃ to 150℃ and its Curie temperature is 570℃. Real‑world working temperatures must stay within this rated range. Magnetic features will vanish temporarily once temperatures exceed the Curie threshold.

Q: What causes inductance fluctuation after winding wire around a ferrite toroidal core? A: Inductance is determined by winding turns, winding technique and core permeability. Mechanical impact and excessive DC bias current can also trigger inductance decline. Adopt suggested winding guidelines to obtain consistent inductance results.

Q: What consequences will surface scratches or flaws bring to ferrite toroidal cores? A: Superficial blemishes that meet our acceptance criteria barely impact magnetic performance. Serious cracks or fractures will degrade inductance and lower the reliability of finished coils. Damaged cores need to be disposed of.

Q: How do I pick a proper ferrite toroidal core for my filter project? A: Key factors include operating frequency band, target inductance value, rated current, service temperature and available mounting space. Share your circuit parameters with us, and we can suggest suitable core material and dimensions.
