VIIP V19002 ID17mm High Impedance Ferrite Ring, EMI RFI Soft Toroid for Power & Signal Cable EMC Filtering RoHS REACH Compliant

Brand Name: Weiaipu
Model Number: V19002
MOQ: 144PCS
Price: USD0.94
Packaging Details: Carton
Payment Terms: T/T
Detail Information
Product Description
Detail Information
Place of Origin:
China
Certification:
ROHS REACH
Material:
Nickel‑Zinc Ferrite VN09
Color:
Black
Compliance:
RoHS, REACH
Model:
V19002
Highlight:

high impedance ferrite ring

,

EMI RFI soft toroid

,

EMC filtering ferrite ring

Product Description
VIIP V19002 ID17mm High Impedance Ferrite Ring, EMI RFI Soft Toroid for Power & Signal Cable EMC Filtering RoHS REACH Compliant
Product Overview

VIIP V19002 17mm Anti-Interference Ferrite Toroid Ring - RoHS REACH compliant industrial cable interference solution. This toroidal ferrite core delivers powerful EMI and RFI noise attenuation for high-frequency circuits.

Product Description

Fabricated from high-grade VN09 nickel-zinc ferrite, the black V19002 toroidal ferrite core achieves outstanding attenuation of high-frequency EMI and RFI interference on power cables and wiring harnesses. It provides steady filtering performance for end-products and helps devices satisfy EMC regulatory compliance standards.

Boasting 280MT high saturation magnetic flux density, it avoids performance deterioration caused by magnetic saturation under complex and harsh working conditions.

Key Features
  • Toroidal Ni-Zn ferrite for cable through-hole EMI suppression, OD40.0 mm / ID17.0 mm / Thickness 33.5 mm
  • Excellent high-frequency impedance: 50Ω min@25MHz, 140Ω min@100MHz, test bandwidth 1-500 MHz
  • VN09 ferrite material, 280MT saturation magnetic flux density, Curie temp over 130℃, outstanding thermal stability
  • Rigorous appearance defect screening & tight dimension tolerance control, reliable batch consistency for mass-volume production
  • RoHS & REACH compliant, Rev4.0 approval sheet supplied for project qualification & type-test
  • Characterized by E4991A+16194A professional impedance analyzer; impedance-frequency test curves available upon request
Specifications
Item Value
Model V19002
Material Nickel-Zinc Soft Ferrite VN09 (Black)
Outer Diameter 40.0 mm
Thickness 33.5 mm
Inner Diameter 17.0 mm
Saturation Magnetic Flux 280MT
Curie Temperature >130℃
Compliance RoHS, REACH
Applications
  • Industrial power supply, high‑current adapter and charger module interference control
  • Non‑invasive noise filtering for medical device internal wiring
  • Interference mitigation for heavy‑duty power & signal cable assemblies
  • PLC, servo drive and field‑bus system noise reduction
Product Images

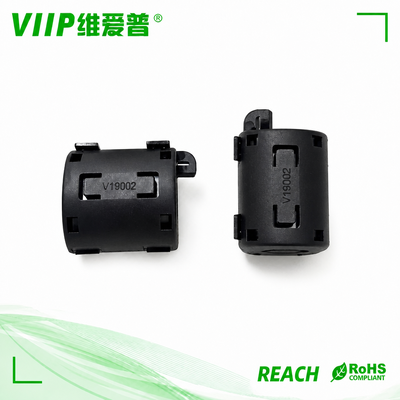

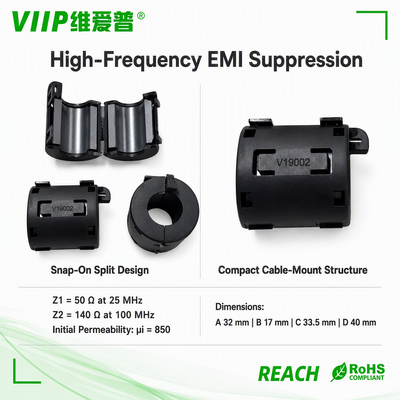

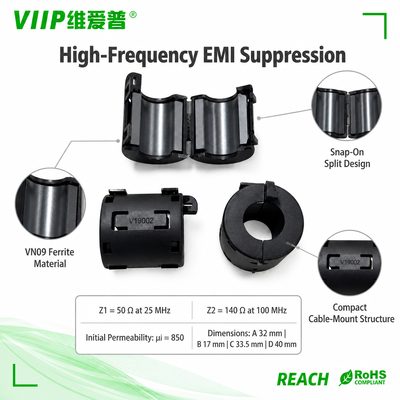

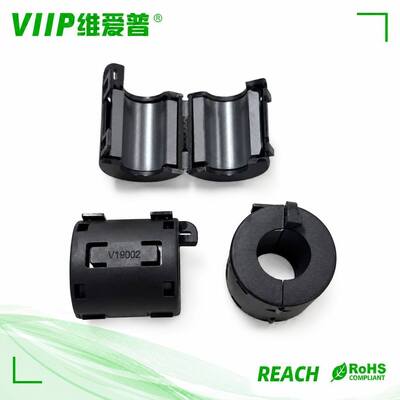

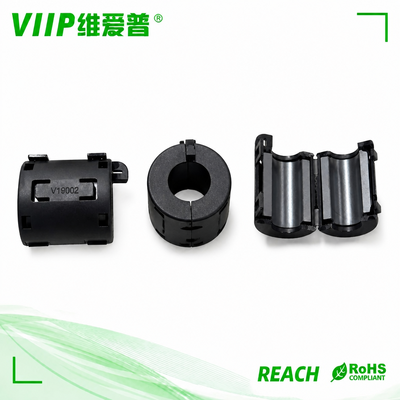

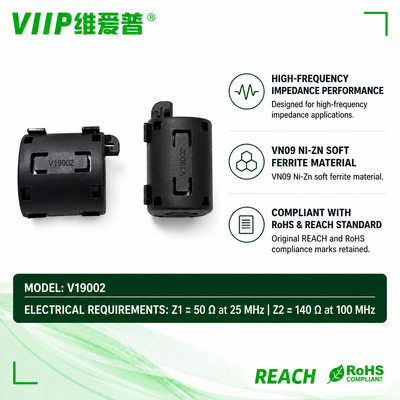

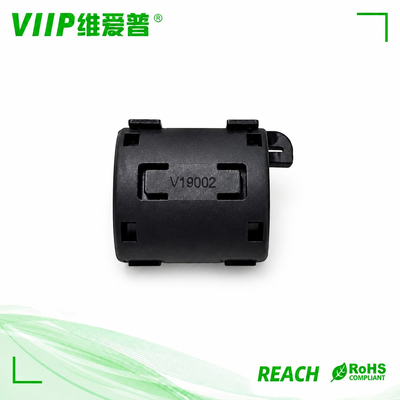

VIIP V19002 Ferrite Toroid Ring front view VIIP V19002 Ferrite Toroid Ring side view VIIP V19002 Ferrite Toroid Ring dimensional view VIIP V19002 Ferrite Toroid Ring application example
Frequently Asked Questions
Can I get free samples for ferrite rings and clamps?
Yes, we can provide free samples for our ferrite rings and clamps.
What is your regular order requirement for ferrite rings & clamps?
Normally orders shall follow our minimum package quantity. Exceptions are acceptable for your first trial order.
Does the free-sample policy mean I can place small-quantity orders below MOQ for all orders?
Free samples are for performance verification only. Except for your first order, formal repeat orders need to follow our minimum package quantity requirement.
What certificates do your ferrite cores and clamp-on ferrites have? Can you provide approval sheets?
Our ferrite & clamp-on ferrite comply with RoHS and REACH. We can provide PDF approval sheets (specification document) for your project review.
What is the typical production lead-time for ferrite and clamp-on ferrite mass orders?
Production lead-time is typically 2-5 weeks, depending on order quantity and stock availability. The exact lead-time will be confirmed prior to placing a formal order.
Can you customize impedance/size for ferrite cores and clamp-on ferrites?
Custom service is available upon your technical requirement, MOQ for customized items will apply.
Are clamp-on ferrite rings reusable after installation?
Yes, the snap-on design allows for easy removal and reinstallation, making them reusable.
