VIIP V19002 17mm Anti-Interference Ferrite Toroid Ring, EMC EMI Noise Suppression High Frequency Filter Magnetic Core RoHS REACH

All Category

Flat Ferrite Core

Miss. Vicky Lee

vip6@szviip.com

19925448748

19925448748

Contact Now

VIIP V19002 17mm Anti-Interference Ferrite Toroid Ring, EMC EMI Noise Suppression High Frequency Filter Magnetic Core RoHS REACH

Brand Name:	Weiaipu
Model Number:	V19002
MOQ:	144PCS
Price:	USD0.94
Packaging Details:	Carton
Payment Terms:	T/T

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

ROHS REACH

Material:

Nickel‑Zinc Ferrite VN09

Color:

Black

Compliance:

RoHS, REACH

Model:

V19002

Highlight:

17mm ferrite toroid ring

EMC EMI noise suppression core

RoHS compliant ferrite filter

Product Description

VIIP V19002 17mm Anti-Interference Ferrite Toroid Ring

Product Overview

OEM V19002 17mm Bore Soft Ferrite Magnetic Ring for EMI RFI Noise Blocking Toroid Core. RoHS REACH compliant industrial cable interference solution.

ID17mm High Impedance Ferrite Ring Core designed for power filter and cable noise suppression. This toroidal ferrite core delivers powerful EMI and RFI noise attenuation for high-frequency circuits.

Product Description

Fabricated by VIIP from high-grade VN09 nickel-zinc ferrite, the black V19002 toroidal ferrite core achieves outstanding attenuation of high-frequency EMI and RFI interference on power cables and wiring harnesses. It provides steady filtering performance for end-products and helps devices satisfy EMC regulatory compliance standards.

Boasting 280MT high saturation magnetic flux density, it avoids performance deterioration caused by magnetic saturation under complex and harsh working conditions.

Key Features

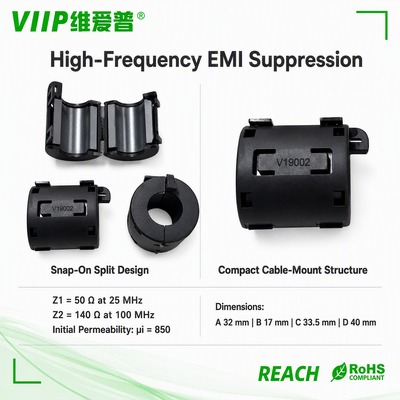

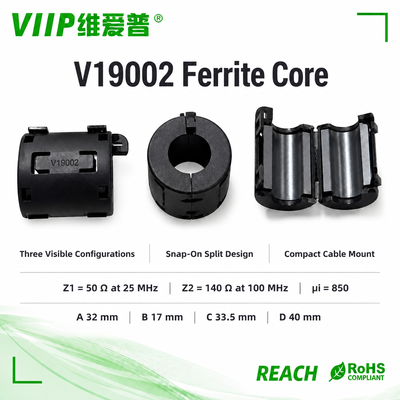

Toroidal Ni-Zn ferrite for cable through-hole EMI suppression, OD40.0 mm / ID17.0 mm / Thickness 33.5 mm
Excellent high-frequency impedance: 50Ω min@25MHz, 140Ω min@100MHz, test bandwidth 1-500 MHz
VN09 ferrite material, 280MT saturation magnetic flux density, Curie temp over 130℃, outstanding thermal stability
Rigorous appearance defect screening & tight dimension tolerance control, reliable batch consistency for mass-volume production
RoHS & REACH compliant, Rev4.0 approval sheet supplied for project qualification & type-test
Characterized by E4991A+16194A professional impedance analyzer; impedance-frequency test curves available upon request

Specifications

Item	Value
Model	V19002
Material	Nickel-Zinc Soft Ferrite VN09 (Black)
Outer Diameter	40.0 mm
Thickness	33.5 mm
Inner Diameter	17.0 mm
Saturation Magnetic Flux	280MT
Curie Temperature	>130℃
Compliance	RoHS, REACH

Applications

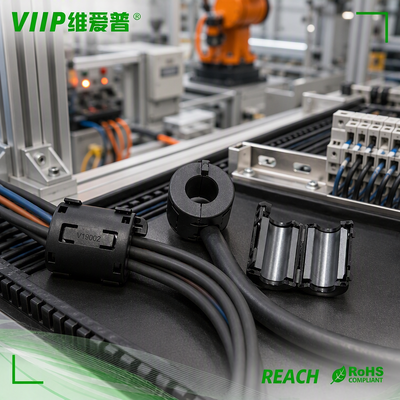

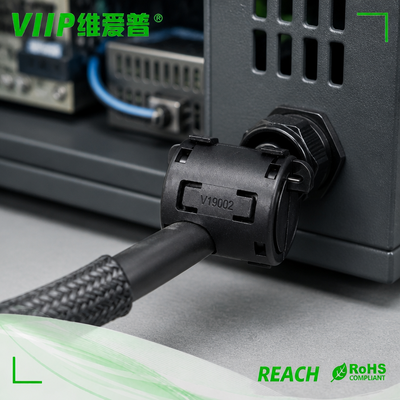

High-frequency interference mitigation for heavy-duty power and signal cable assemblies

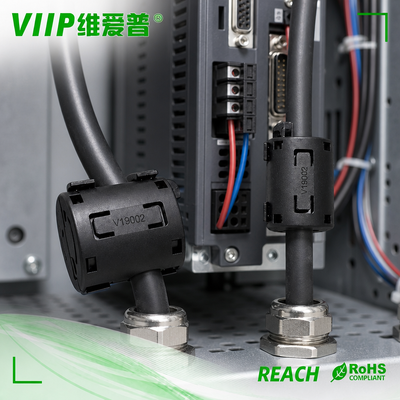

Industrial PLC, servo drive and field-bus system noise reduction
Audio-visual hardware, smart display and peripheral device EMC optimization
On-board wiring anti-interference for commercial and auxiliary automotive electronics

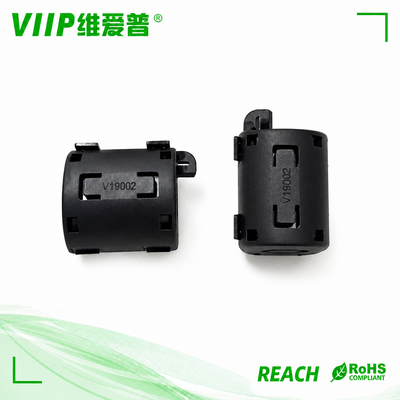

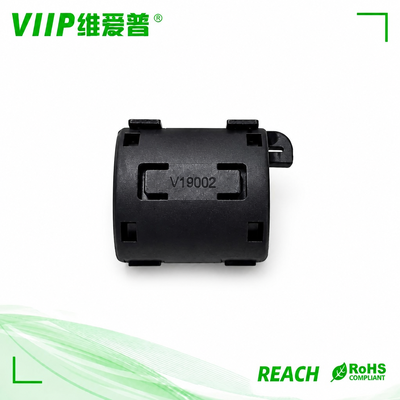

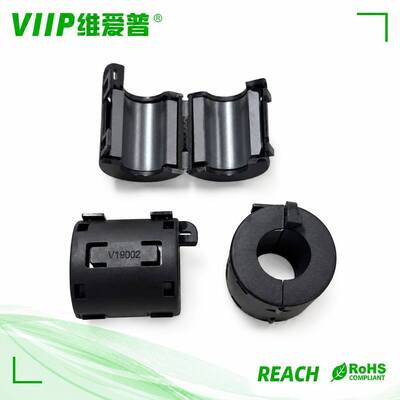

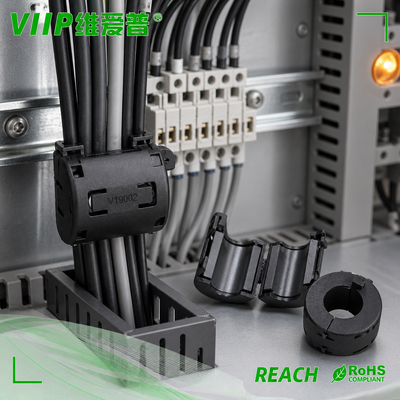

Product Images

Frequently Asked Questions

Can I get free samples for ferrite rings and clamps?

Yes, we can provide free samples for our ferrite rings and clamps.

What is your regular order requirement for ferrite rings & clamps?

Normally orders shall follow our minimum package quantity. Exceptions are acceptable for your first trial order.

Does the free-sample policy mean I can place small-quantity orders below MOQ for all orders?

Free samples are for performance verification only. Except for your first order, formal repeat orders need to follow our minimum package quantity requirement.

What certificates do your ferrite cores and clamp-on ferrites have? Can you provide approval sheets?

Our ferrite & clamp-on ferrite comply with RoHS and REACH. We can provide PDF approval sheets (specification document) for your project review.

What is the typical production lead-time for ferrite and clamp-on ferrite mass orders?

Production lead-time is typically 2-5 weeks, depending on order quantity and stock availability. The exact lead-time will be confirmed prior to placing a formal order.

Can you customize impedance/size for ferrite cores and clamp-on ferrites?

Custom service is available upon your technical requirement, MOQ for customized items will apply.

Are clamp-on ferrite rings reusable after installation?

Yes, the snap-on design allows for easy removal and reinstallation, making them reusable.
