VIIP V18019FS Toroidal NiZn Ferrite Core High-Frequency EMI Noise Suppression Core for Filter Prototype & Certification Testing

Brand Name: Weiaipu
Model Number: V18019FS
MOQ: 450PCS
Price: USD0.72
Packaging Details: Carton
Payment Terms: T/T
Detail Information
Product Description
Detail Information
Place of Origin:
China
Certification:
ROHS REACH
Product Namee:
Clip On Ferrite Core
Package Type:
Carton
Mountingstyle:
Snap-on/Clip-on
Productname:
Clip On Ferrite Core
Highlight:

toroidal NiZn ferrite core

,

high-frequency EMI noise suppression core

,

ferrite core for filter testing

Product Description
VIIP V18019FS Toroidal NiZn Ferrite Core High-Frequency EMI Noise Suppression Core

VIIP V18019FS Soft NiZn Toroidal Ferrite Core High Impedance EMI Suppression Ring for IT-AV Equipment Power Filter Coil. This Nickel-Zinc Oblong (Runway-Shaped) Ferrite Core delivers powerful EMI & RFI noise suppression for high-frequency wiring harness applications.

Product Overview

The special oblong inner cavity is optimized for multiple parallel cables passing-through, providing stable filtering performance for industrial and consumer electronic projects.

Key Features
  • Oblong runway-type structure, well-suited for multi-wire flat harness installation

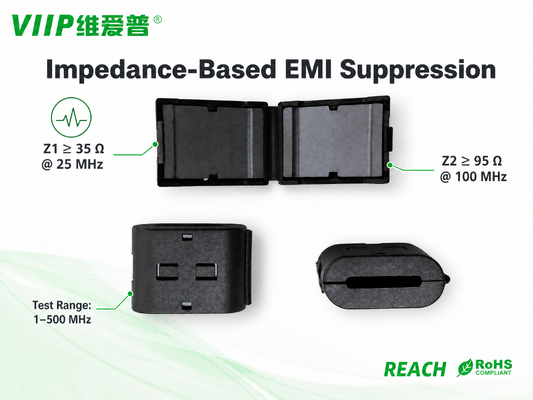

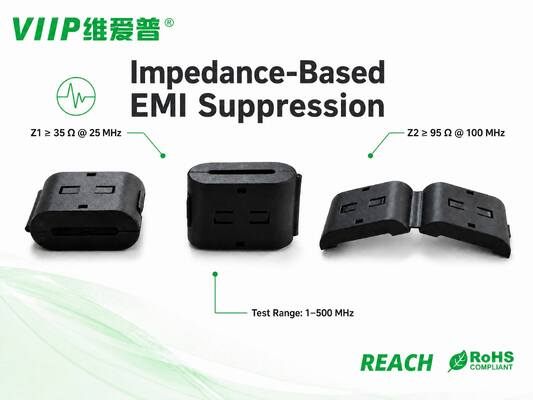

  • Minimum 35Ω impedance @25MHz, 95Ω impedance @100MHz (1-500 MHz test range)
  • High saturation flux density with reliable high-frequency working stability
  • Curie temperature above 105℃ to guarantee consistent performance under heat
  • RoHS & REACH compliant, tested by E4991A impedance analyzer
  • Strict dimensional & appearance inspection to ensure mass-production batch consistency

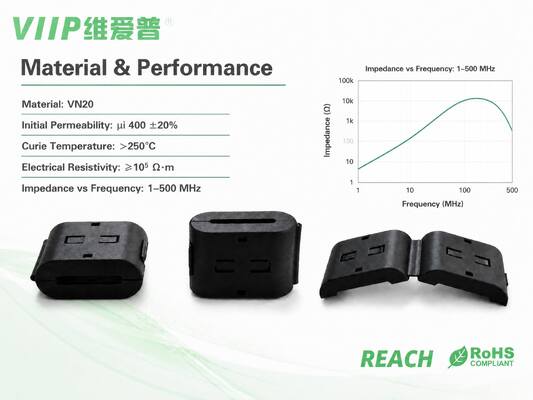

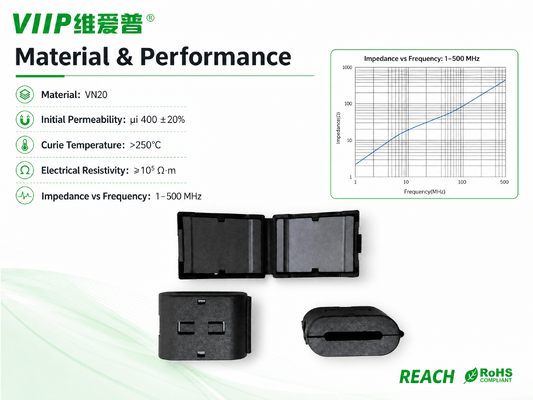

Specifications
Model V18019FS
Material Nickel-Zinc Soft Ferrite (Black)
Shape Oblong / Runway-type
Inner Cavity Size 18.2 mm
Overall Length 30.85 mm
Thickness 13.11 mm
Test Frequency Range 1-500 MHz
Impedance ≥35Ω@25MHz, ≥95Ω@100MHz
Curie Temperature ＞105℃
Compliance RoHS, REACH
Applications
  • Multi-wire wiring harness noise filtering
  • Industrial control equipment
  • Power supply & signal cable EMC improvement
  • Consumer & IT-AV electronic devices
  • EMC debugging for finished electronic products
  • High-frequency interference suppression for flat cable assembly
Product Images

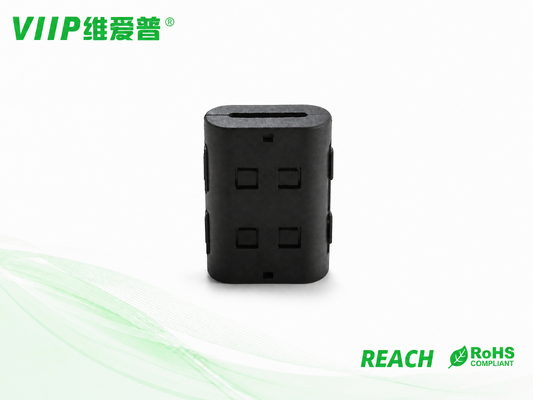

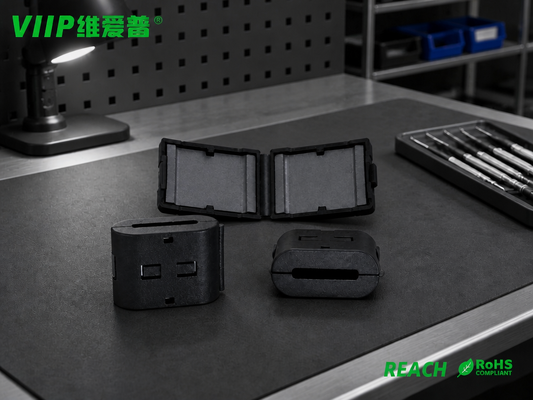

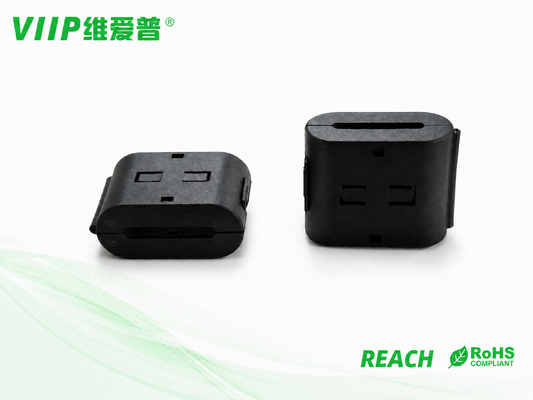

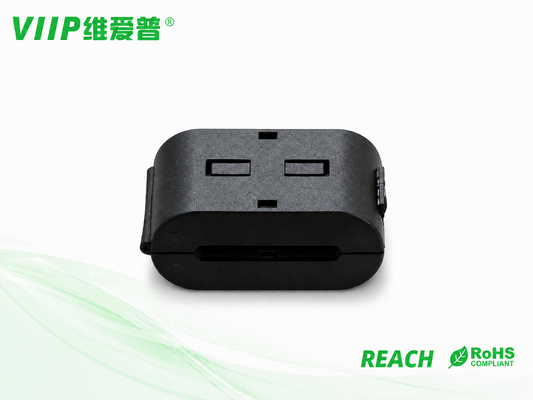

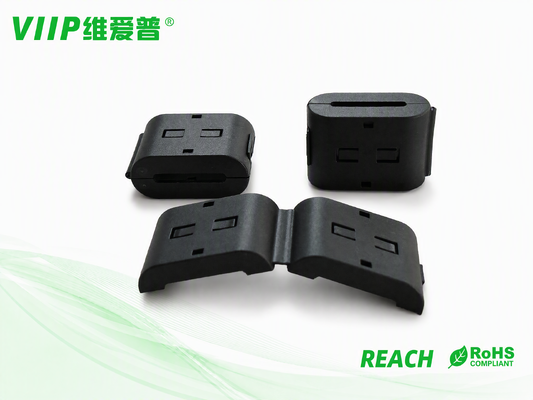

VIIP V18019FS Ferrite Core front view showing oblong shape
VIIP V18019FS Ferrite Core side view showing thickness
VIIP V18019FS Ferrite Core dimensional diagram

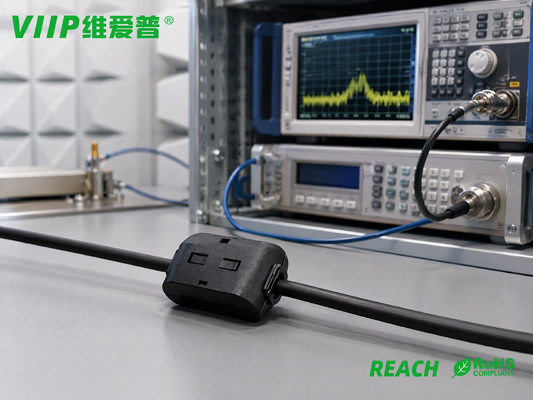

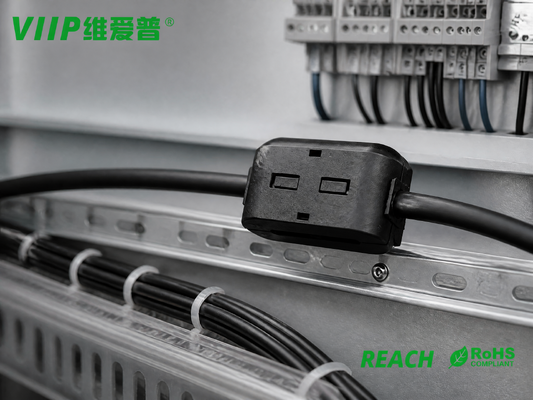

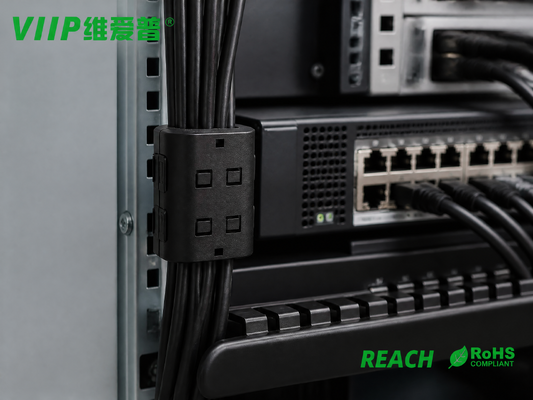

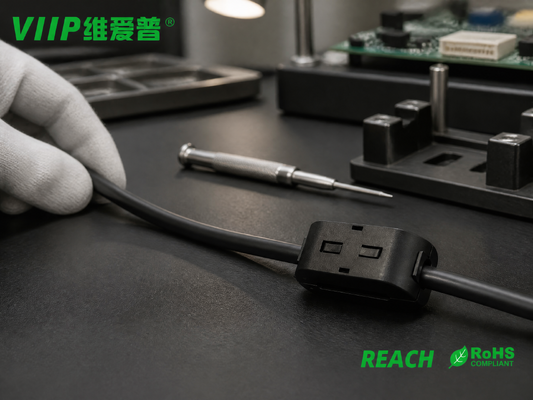

VIIP V18019FS Ferrite Core application example with cables

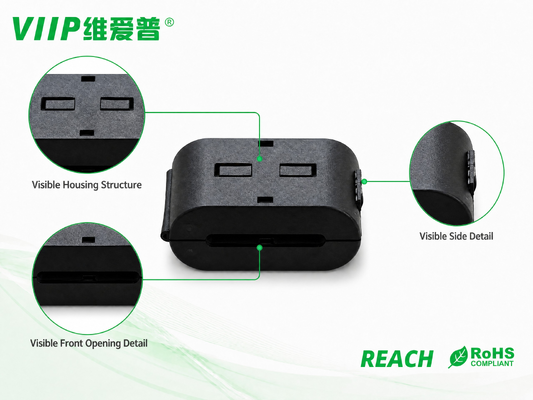

VIIP V18019FS Ferrite Core close-up detail
Frequently Asked Questions
Can I get free samples for ferrite rings and clamps?
Yes, we can provide free samples for our ferrite rings and clamps.
What is your regular order requirement for ferrite rings & clamps?
Normally orders shall follow our minimum package quantity. Exceptions are acceptable for your first trial order.
Does the free-sample policy mean I can place small-quantity orders below MOQ for all orders?
Free samples are for performance verification only. Except for your first order, formal repeat orders need to follow our minimum package quantity requirement.
What certificates do your ferrite cores and clamp-on ferrites have? Can you provide approval sheets?
Our ferrite & clamp-on ferrite comply with RoHS and REACH. We can provide PDF approval sheets (specification document) for your project review.
What is the typical production lead-time for ferrite and clamp-on ferrite mass orders?
Production lead-time is typically 2-5 weeks, depending on order quantity and stock availability. The exact lead-time will be confirmed prior to placing a formal order.
Can you customize impedance/size for ferrite cores and clamp-on ferrites?
Custom service is available upon your technical requirement, MOQ for customized items will apply.
Are clamp-on ferrite rings reusable after installation?
Yes, the snap-on design allows for easy removal and reinstallation, making them reusable.
Tags:

Nizn Emi Cable Ferrite Cores

Clip On Ferrite Core Rohs Reach

Black Nizn Emi Suppression Core
