VIIP V18019FS Soft Ferrite Toroidal Ring High Frequency EMI-RFI Noise Suppression Core for Industrial Control Power Filter Coils

Brand Name: Weiaipu
Model Number: V18019FS
MOQ: 450PCS
Price: USD0.72
Packaging Details: Carton
Payment Terms: T/T
Detail Information
Product Description
Detail Information
Place of Origin:
China
Certification:
ROHS REACH
Product Namee:
Clip On Ferrite Core
Package Type:
Carton
Mountingstyle:
Snap-on/Clip-on
Productname:
Clip On Ferrite Core
Highlight:

soft ferrite toroidal ring

,

EMI-RFI noise suppression core

,

industrial control power filter

Product Description
VIIP V18019FS Soft Ferrite Toroidal Ring High Frequency EMI-RFI Noise Suppression Core for Industrial Control Power Filter Coils
VIIP V18019FS Nickel-Zinc Oblong (Runway-Shaped) Ferrite Core delivers powerful EMI & RFI noise suppression for high-frequency wiring harness. Its special oblong inner cavity is optimized for multiple parallel cables passing-through, providing stable filtering performance for industrial and consumer electronic projects.
Key Features
  • Oblong runway-type structure, well-suited for multi-wire flat harness installation
  • Minimum 35Ω impedance @25MHz, 95Ω impedance @100MHz (1-500 MHz test range)
  • High saturation flux density with reliable high-frequency working stability
  • Curie temperature above 105℃ to guarantee consistent performance under heat
  • RoHS & REACH compliant, tested by E4991A impedance analyzer
  • Strict dimensional & appearance inspection to ensure mass-production batch consistency
Specifications
Model V18019FS
Material Nickel-Zinc Soft Ferrite (Black)
Shape Oblong / Runway-type
Inner Cavity Size 18.2 mm
Overall Length 30.85 mm
Thickness 13.11 mm

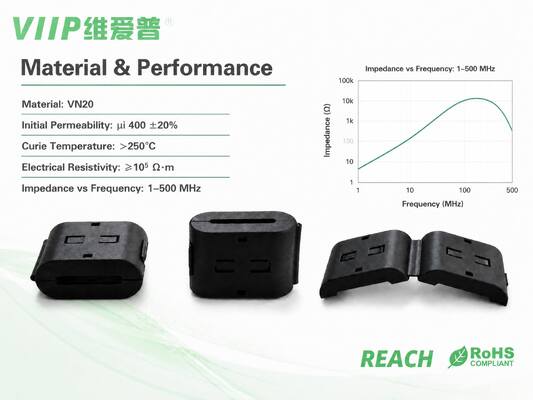

Test Frequency Range 1-500 MHz

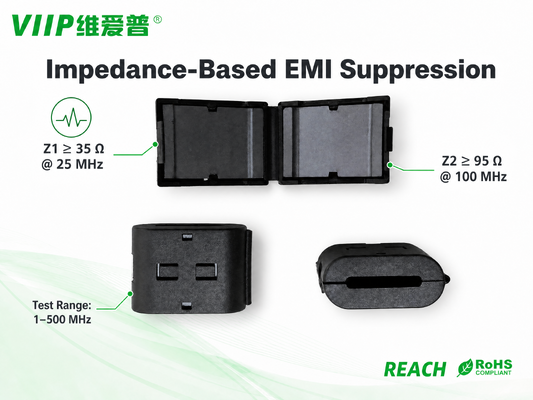

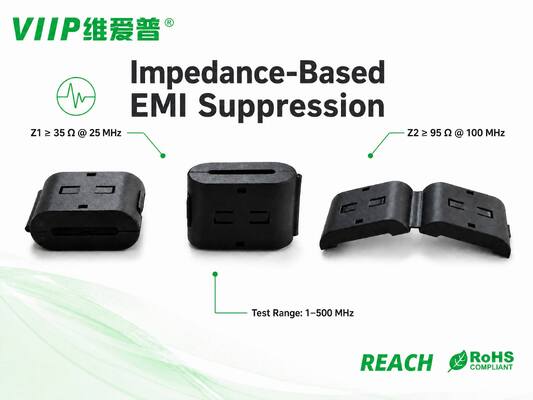

Impedance ≥35Ω@25MHz, ≥95Ω@100MHz
Curie Temperature ＞105℃
Compliance RoHS, REACH
Applications
  • Multi-wire wiring harness noise filtering
  • Industrial control equipment
  • Power supply & signal cable EMC improvement
  • Consumer & IT-AV electronic devices
  • EMC debugging for finished electronic products
  • High-frequency interference suppression for flat cable assembly
Product Images

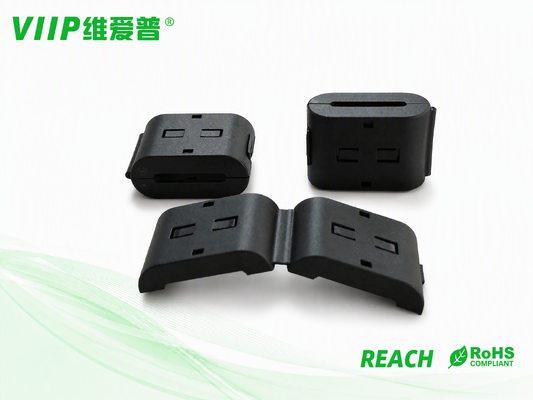

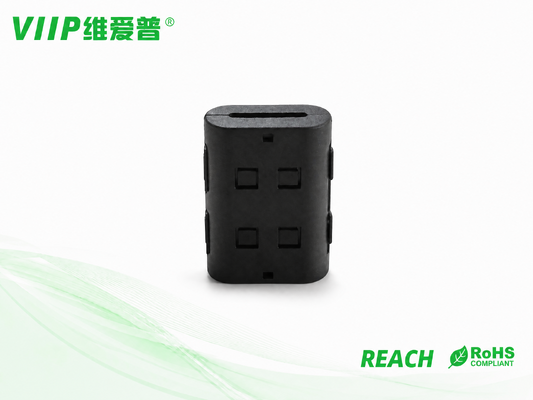

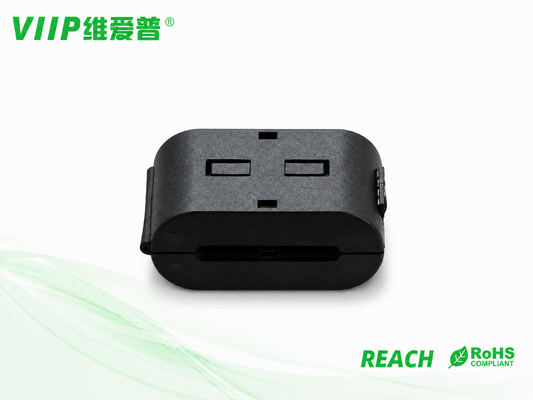

VIIP V18019FS Ferrite Core front view showing oblong shape

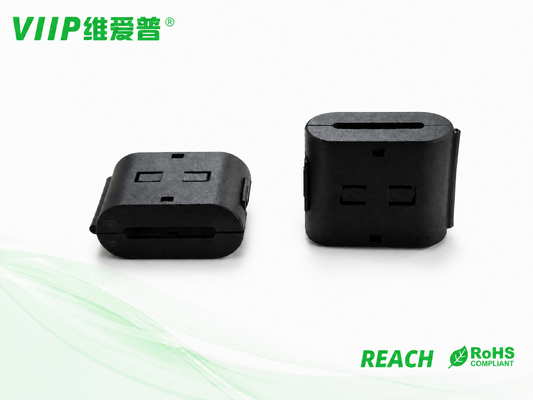

VIIP V18019FS Ferrite Core side view showing thickness
VIIP V18019FS Ferrite Core dimensional diagram

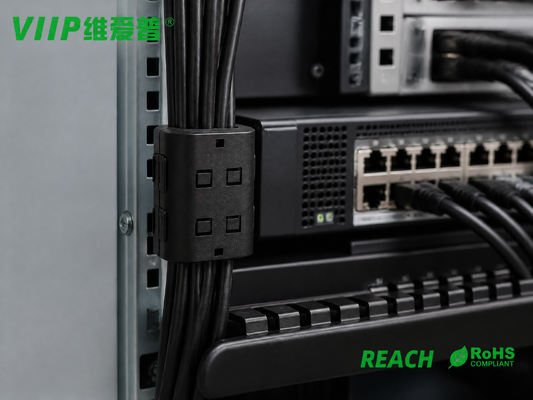

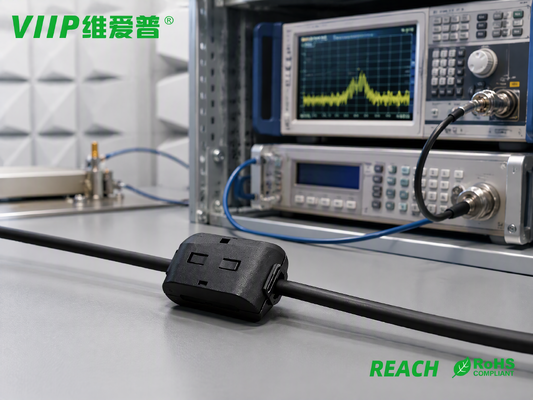

VIIP V18019FS Ferrite Core application example with cables

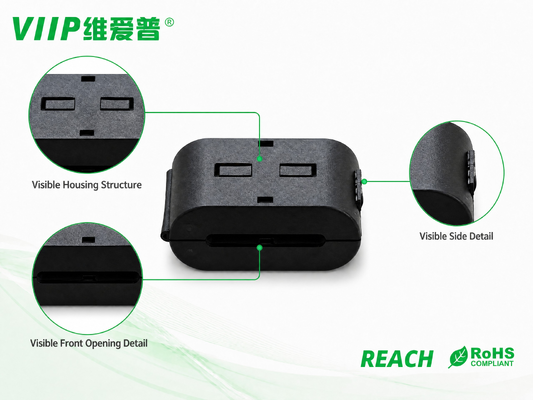

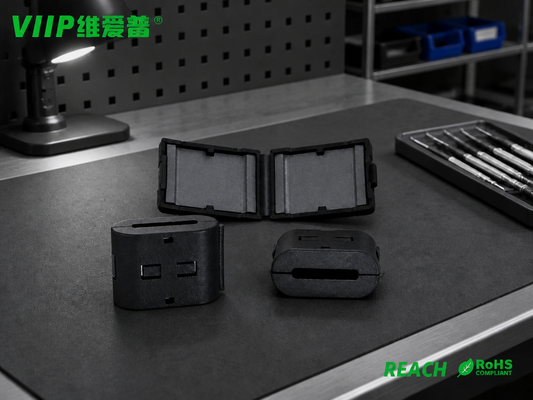

VIIP V18019FS Ferrite Core close-up detail
Frequently Asked Questions
Can I get free samples for ferrite rings and clamps?
Yes, we can provide free samples for our ferrite rings and clamps.
What is your regular order requirement for ferrite rings & clamps?
Normally orders shall follow our minimum package quantity. Exceptions are acceptable for your first trial order.
Does the free-sample policy mean I can place small-quantity orders below MOQ for all orders?
Free samples are for performance verification only. Except for your first order, formal repeat orders need to follow our minimum package quantity requirement.
What certificates do your ferrite cores and clamp-on ferrites have? Can you provide approval sheets?
Our ferrite & clamp-on ferrite comply with RoHS and REACH. We can provide PDF approval sheets (specification document) for your project review.
What is the typical production lead-time for ferrite and clamp-on ferrite mass orders?
Production lead-time is typically 2-5 weeks, depending on order quantity and stock availability. The exact lead-time will be confirmed prior to placing a formal order.
Can you customize impedance/size for ferrite cores and clamp-on ferrites?
Custom service is available upon your technical requirement, MOQ for customized items will apply.
Are clamp-on ferrite rings reusable after installation?
Yes, the snap-on design allows for easy removal and reinstallation, making them reusable.
